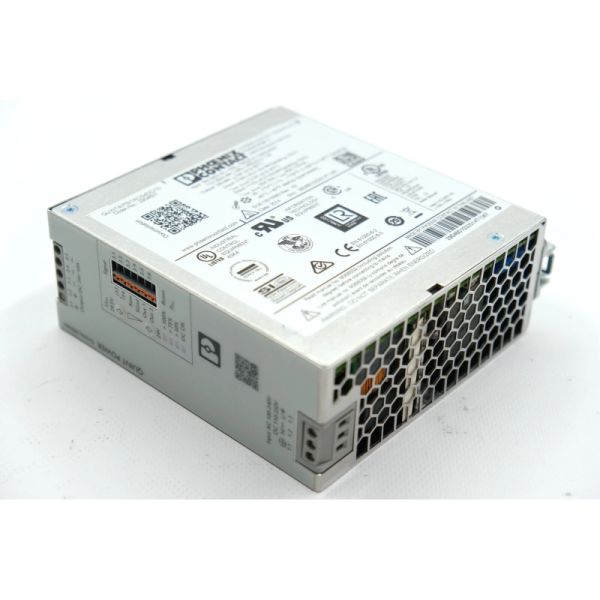

2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10
2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10
2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10
2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10
Specifications
Brand Name :
Phoenix Contact
Model Number :
2904601
Certification :
UL,CSA,EAC...
Place of Origin :
TH
MOQ :
1
Price :
$140-$160
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Packing unit :
1 pc
Minimum order quantity :
1 pc
Mounting type :
Screw connection
Product type :
Power supply
Product family :
QUINT POWER
Width :
50 mm
Height :
130 mm
Depth :
125 mm
output :
24 V DC / 10 A
Description
Industrial Phoenix Contact Terminal Blocks Relay Module Power Supplier 2904601 QUINT4-PS/1AC/24DC/10 - Power supply

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/10 A

Specifications
Control input (configurable) Rem Output power ON/OFF (SLEEP MODE)
Default Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd)
AC operation
Network type Star network
Nominal input voltage range 100 V AC ... 240 V AC
Input voltage range 100 V AC ... 240 V AC -15 % ... +10 %
Derating < 100 V AC (1 %/V)
Electric strength, max. 300 V AC 60 s
Typical national grid voltage 120 V AC
230 V AC
Voltage type of supply voltage AC
Inrush current typ. 12 A (at 25 °C)
Inrush current integral (I2t) < 0.7 A2s
Inrush current limitation 12 A (after 1 ms)
AC frequency range 50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (fN) 50 Hz ... 60 Hz -10 % ... +10 %
16.7 Hz (acc. to EN 50163)
Mains buffering time typ. 42 ms (120 V AC)
typ. 44 ms (230 V AC)
Current consumption 3.4 A (100 V AC)
2.8 A (120 V AC)
1.5 A (230 V AC)
1.5 A (240 V AC)
Nominal power consumption 274 VA
Protective circuit Transient surge protection; Varistor, gas-filled surge arrester
Power factor (cos phi) 0.94
Switch-on time < 1 s
Typical response time 300 ms (from SLEEP MODE)
Input fuse 8 A (slow-blow, internal)
Recommended breaker for input protection 10 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE < 3.5 mA
0.7 mA (264 V AC, 60 Hz)
Current consumption 1.4 A (110 V DC)
0.6 A (250 V DC)
2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10

2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10
2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/102904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10
COMPANY PROFILE
WHY CHOOSE US?

2904601 Relay Module Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/10

•Original&New •Fast delivery •Best price&Low MOQ •Professionalafter-sales service

FAQ

1. who are we?

We are based in NanJing City, JiangSu Province China, Start from 2018,sell to Mid East,Southeast Asia,North America,Domestic Market,South Asia,Eastern Asia,,Africa,. There are total about 11-50 people in our office.

2. how can we guarantee quality?

All of goods are from Original Brand New Phoenix Contact, and Provide Video-call, Picture confirmation before shipment. Always final Inspection before shipment;

3.what can you buy from us?

Terminal blocks/Relay/Power Supply....

4. why should you buy from us not from other suppliers?

Professional in instruments over 10 year. Covering many famous brands such as Phoenix Contact/Weidmuller/WAGO...... Cusutomers all over the world,south east of Asia,Middle East.....

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,Credit Card,PayPal,

Shipment:

We can ship these goods to you by sea &air,DHL,UPS,FEDEX,TNT.......

  1. It will takes about 20-25days if by sea.
  2. It will takes about 5-7days if by air.
  3. By DHL,UPS,FEDEX,TNT,It will takes about 4-6 working days except festival and holiday.
