Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
Specifications
Height :
72 mm
Depth on NS 35/15 :
59 mm
Brand Name :
Phoenix Contact
Model Number :
TB 6-RTK
Certification :
UL,CSA,EAC...
Place of Origin :
CN
MOQ :
50
Price :
$0.63-$0.99
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
connection method :
Screw connection
End cover width :
2.2 mm
Color :
dark gray
Width :
8.2 mm
Depth on NS 35/7,5 :
51.5 mm
voltage :
400 V
Packing unit :
50pcs
Depth on NS 32 :
56.5
nominal current :
41 A
Minimum order quantity :
50pcs
Description
Phoenix Contact Screw Terminal Blocks 5775287 TB 6-RTK - Test Disconnect Terminal Block
Product Overview

Phoenix Contact Screw Terminal Blocks 5775287 TB 6-RTK - Test disconnect terminal block with two test sockets for 4 mm test plugs, or for receiving bridge bars or screw bridges.

  • Nominal voltage: 400 V
  • Nominal current: 41 A
  • Connection method: Screw connection
  • Rated cross section: 6 mm²
  • Cross section range: 0.5 mm² - 10 mm²
  • Mounting type: NS 35/7.5, NS 35/15, NS 32
  • Color: Dark gray
Technical Specifications
Product type Test disconnect terminal block
Number of positions 1
Number of connections 2
Number of rows 1
Potentials 1
Overvoltage category III
Degree of pollution 3
Rated surge voltage 6 kV
Maximum power dissipation 1.31 W
Nominal cross section 6 mm²
Rated cross section AWG 8
Tightening torque disconnect slide M3 0.6 ... 0.8 Nm
Connection method Screw connection
Screw thread M4
Tightening torque 1.2 ... 1.5 Nm
Stripping length 13 mm
Internal cylindrical gage A5
Connection standard IEC 60947-7-1
Nominal current 41 A
Maximum load current 55 A (with 10 mm² conductor cross-section)
Nominal voltage 400 V

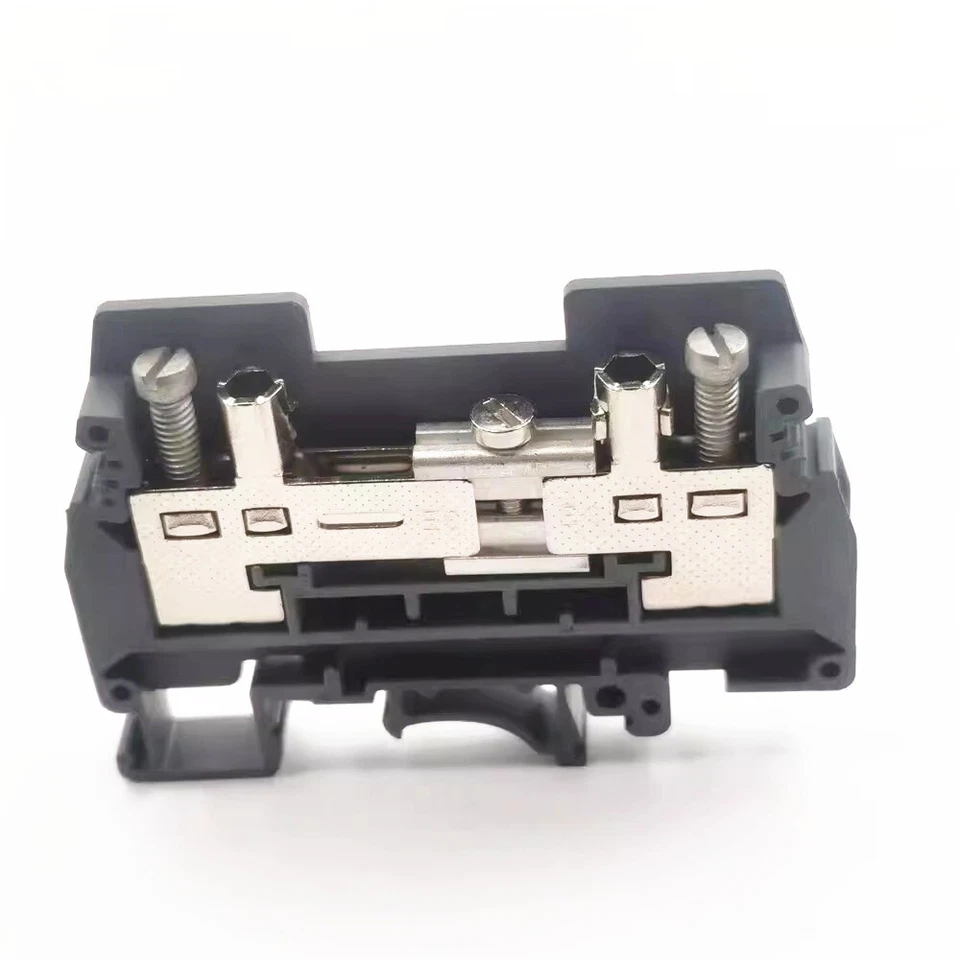

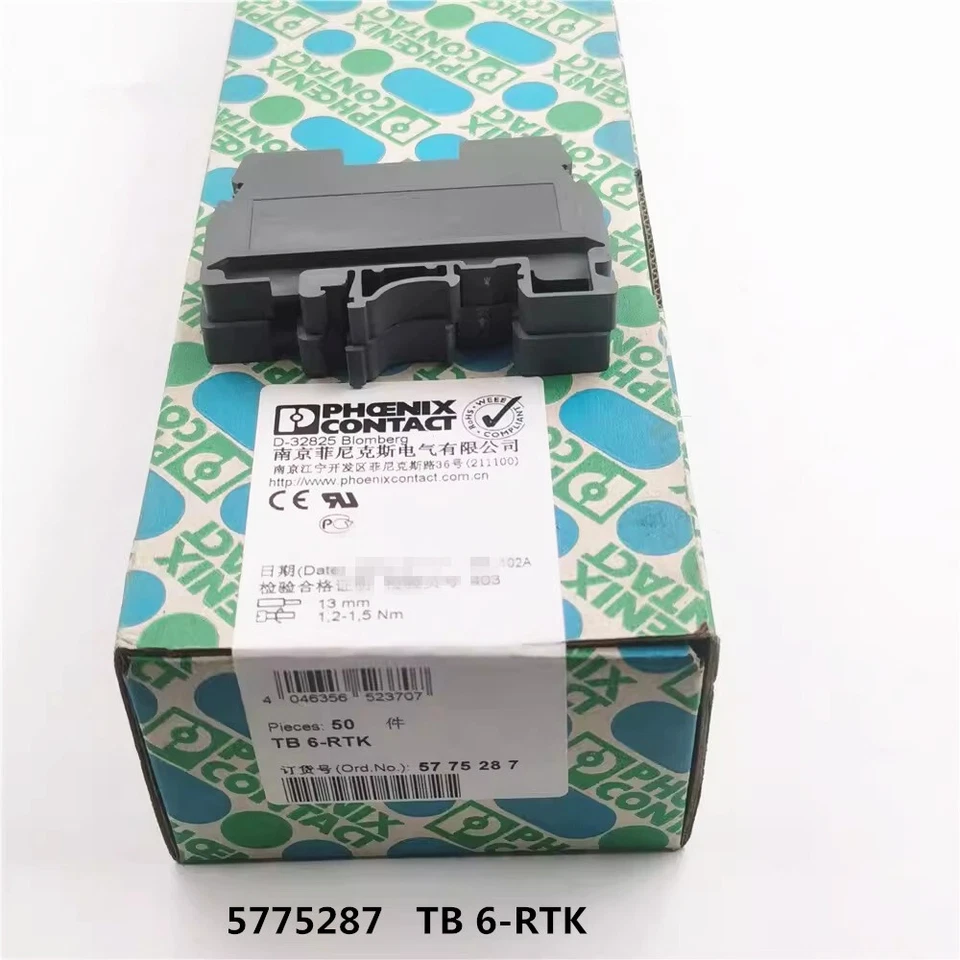

Product Images
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
Company Profile
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
Why Choose Us?
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection
  • Original & New products
  • Fast delivery
  • Best price & Low MOQ
  • Professional after-sales service
Frequently Asked Questions
Who are we?

We are based in NanJing City, JiangSu Province China, established in 2018. We serve markets including Mid East, Southeast Asia, North America, Domestic Market, South Asia, Eastern Asia, and Africa. Our office employs 11-50 people.

How can we guarantee quality?

All goods are original brand new Phoenix Contact products. We provide video-call and picture confirmation before shipment, with final inspection always conducted before shipping.

What can you buy from us?

Terminal blocks, relays, power supplies, and related industrial components.

Why should you buy from us instead of other suppliers?

We have over 10 years of professional experience in instruments, covering famous brands such as Phoenix Contact, Weidmuller, WAGO, and more. We serve customers worldwide, particularly in Southeast Asia and the Middle East.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, Express Delivery

Accepted Payment Currency: USD, EUR, CNY

Accepted Payment Type: T/T, Credit Card, PayPal

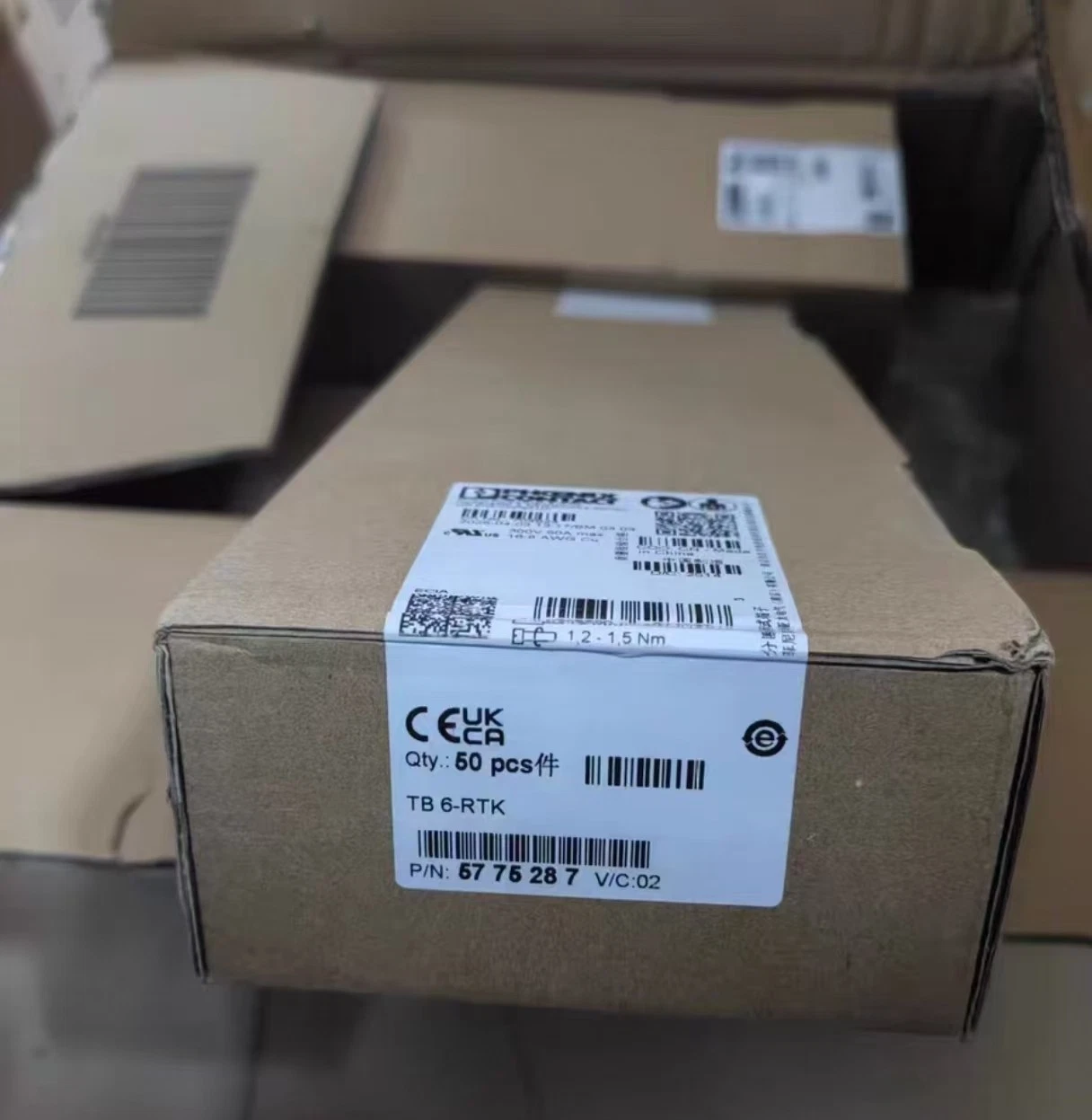

Shipping Information
Phoenix Contact TB 6-RTK Test Disconnect Terminal Block with 41 A Nominal Current and 400 V Nominal Voltage Screw Connection

We ship goods worldwide by sea, air, DHL, UPS, FEDEX, TNT:

  • Sea freight: 20-25 days
  • Air freight: 5-7 days
  • Express (DHL, UPS, FEDEX, TNT): 4-6 working days (excluding festivals and holidays)
