Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
Specifications
Depth on NS 32 :
53 mm
Packing unit :
50 pcs
Depth on NS 35/15 :
55.5 mm
Brand Name :
Phoenix Contact
Model Number :
TB 4-HESILED 24 (5X20) I
Certification :
UL,CSA,EAC...
Place of Origin :
CN
MOQ :
50
Price :
$1.03-$1.9
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Height :
58 mm
Color :
traffic grey B (RAL 7043)
width :
8.2 mm
Depth on NS 35/7,5 :
48 mm
Minimum order quantity :
50 pcs
Product type :
Fuse terminal block
Description
Phoenix Contact Din Rail Terminal Screw Blocks 3246434 TB 4-HESILED 24 (5X20) I - Fuse Terminal Block
Phoenix Contact DIN rail terminal blocks screw blocks 3246434 TB 4-HESILED 24 (5X20) I fuse terminal block. Fuse terminal block with LED display for 15-30 V AC/DC, fuse type: G / 5 x 20, nominal voltage: 24 V, nominal current: 6.3 A, number of positions: 1, connection method: Screw connection, rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting type: NS 35/7.5, NS 35/15, NS 32, color: dark gray.
Product Specifications
Product type Fuse terminal block
Number of positions 1
Number of connections 2
Number of rows 1
Potentials 1
Overvoltage category III
Degree of pollution 3
Rated surge voltage 6 kV
Maximum power dissipation 1.02 W
Fuse type G / 5 x 20
LED voltage range 15 V AC/DC ... 30 V AC/DC
LED current range 1 mA ... 2.5 mA
Connections per level 2
Nominal cross section 4 mm²
Rated cross section AWG 10
Connection method Screw connection
Screw thread M3
Tightening torque 0.5 ... 0.6 Nm
Stripping length 9 mm
Internal cylindrical gage A3
Connection standard IEC 60947-7-3

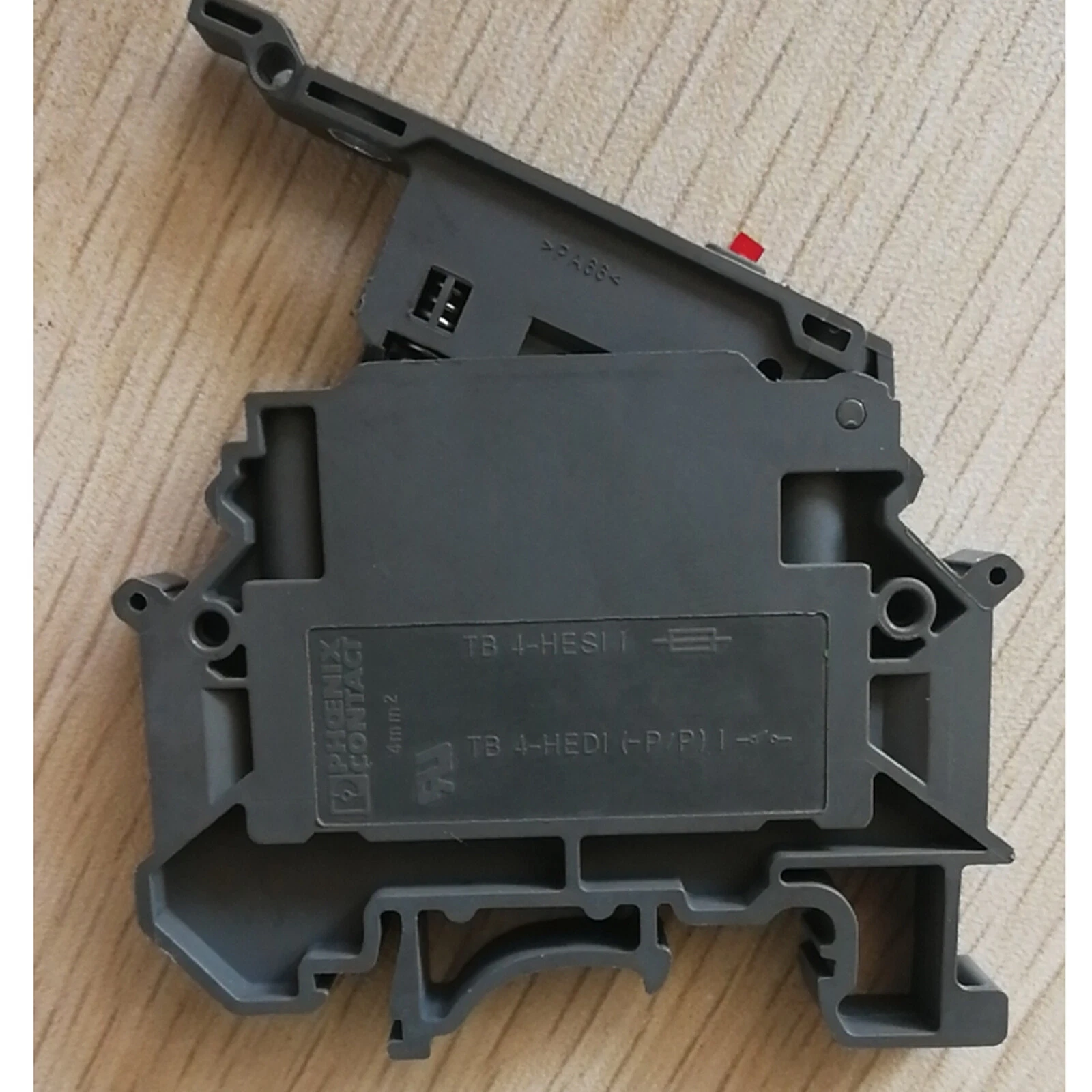

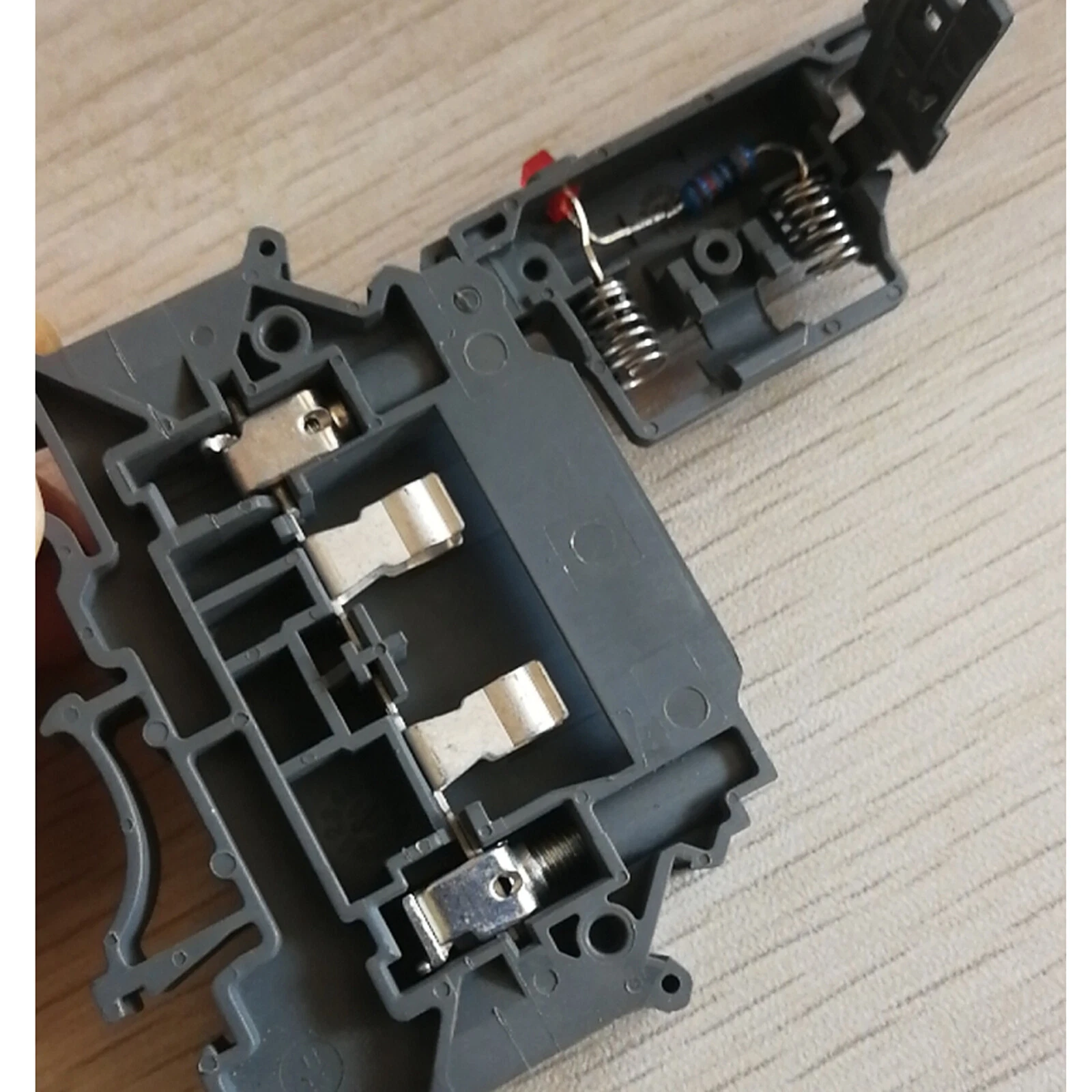

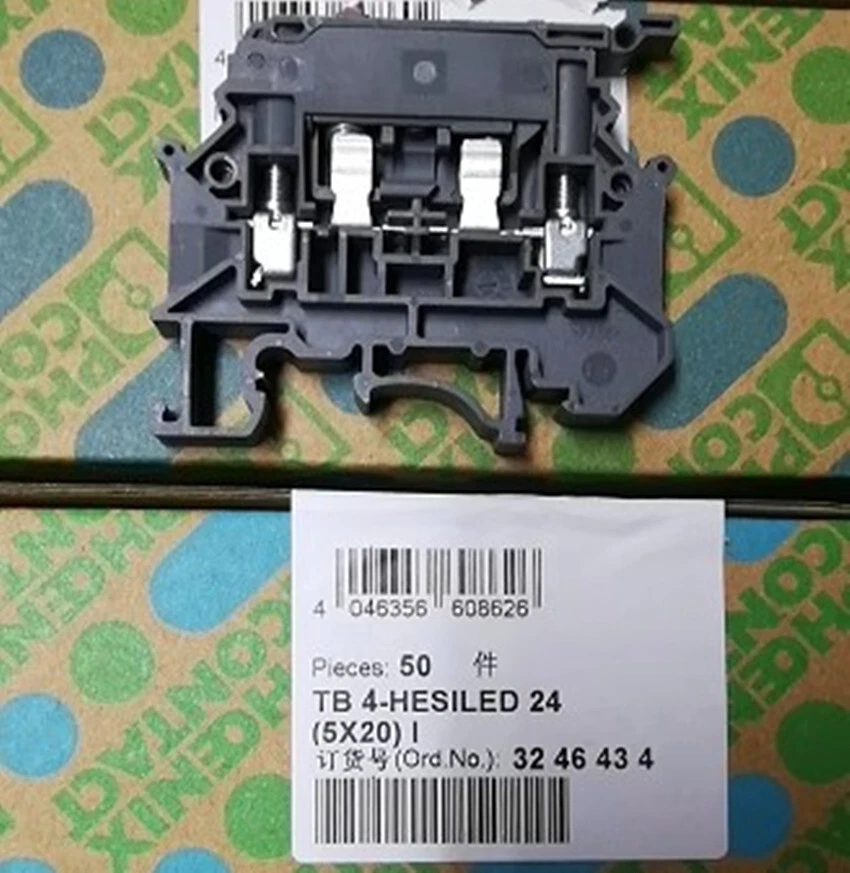

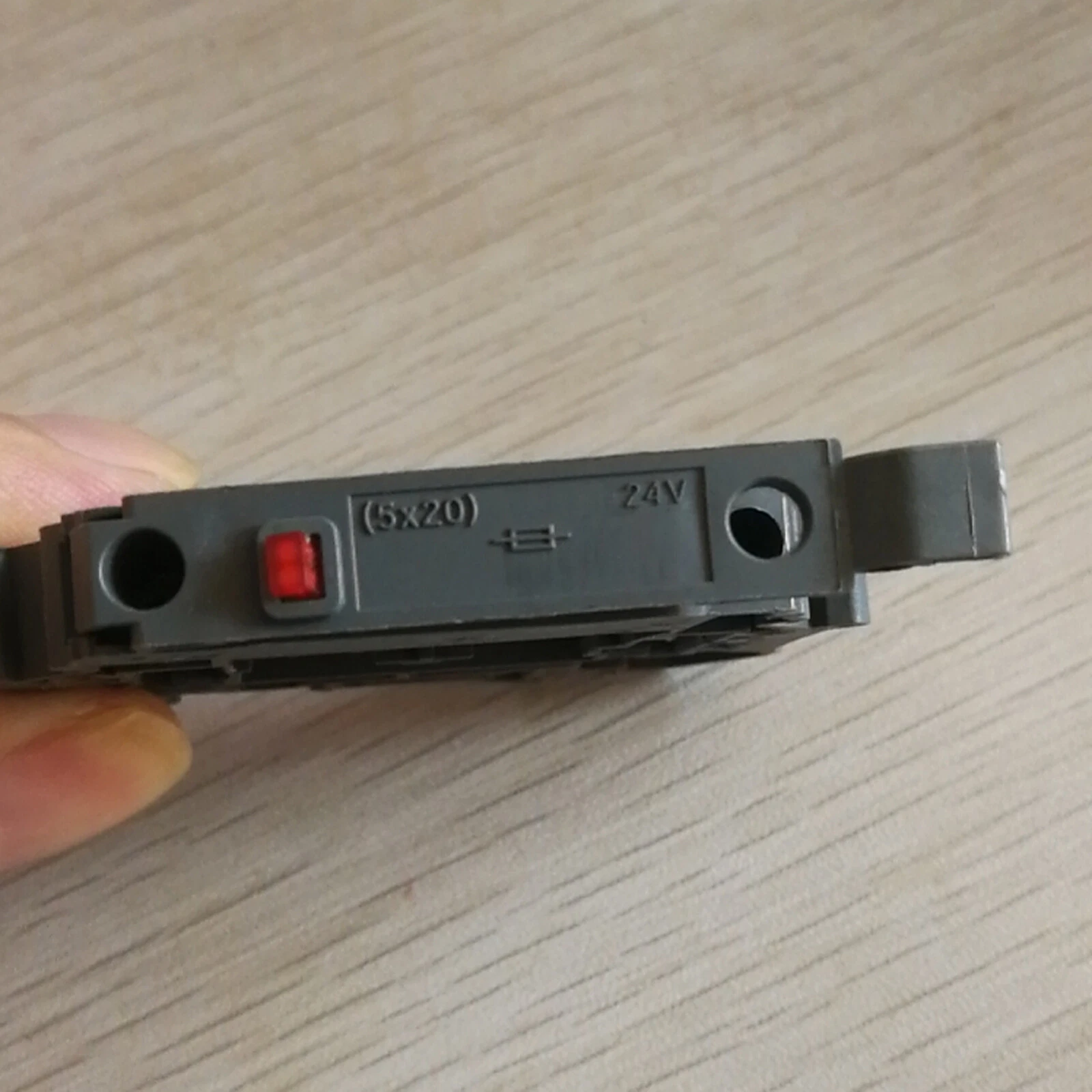

Product Images
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
Company Profile
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
Why Choose Us?
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
  • Original & New products
  • Fast delivery service
  • Best price & Low MOQ
  • Professional after-sales service
Frequently Asked Questions
Who are we?
We are based in Nanjing City, Jiangsu Province, China. Established in 2018, we serve markets including Middle East, Southeast Asia, North America, Domestic Market, South Asia, Eastern Asia, and Africa. Our office employs 11-50 people.
How can we guarantee quality?
All goods are original brand new Phoenix Contact products. We provide video-call and picture confirmation before shipment, with final inspection always conducted before dispatch.
What can you buy from us?
Terminal blocks, relays, power supplies, and related industrial components.
Why should you buy from us instead of other suppliers?
Over 10 years of professional experience in instruments. We cover many famous brands including Phoenix Contact, Weidmuller, WAGO, and serve customers worldwide including Southeast Asia and Middle East.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, Express Delivery
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, Credit Card, PayPal
Shipping Information
Phoenix Contact Fuse Terminal Block with LED Display 6.3 A Nominal Current and 4 mm2 Rated Cross Section
We can ship goods by sea, air, DHL, UPS, FEDEX, TNT:
• Sea shipping: 20-25 days
• Air shipping: 5-7 days
• Express (DHL, UPS, FEDEX, TNT): 4-6 working days (excluding festivals and holidays)
