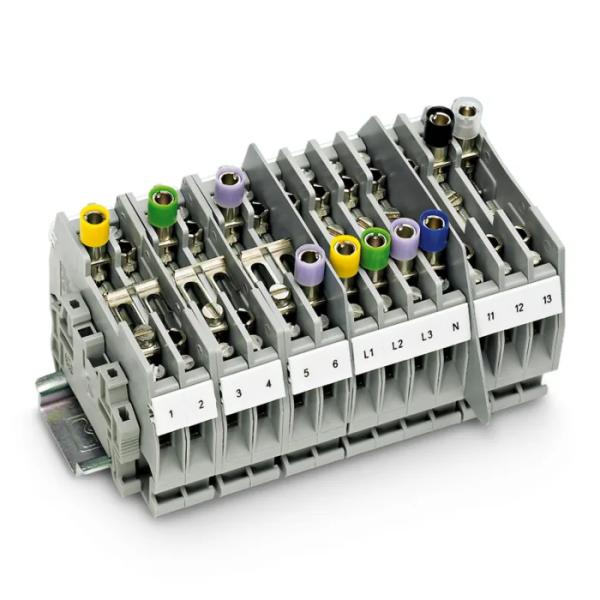

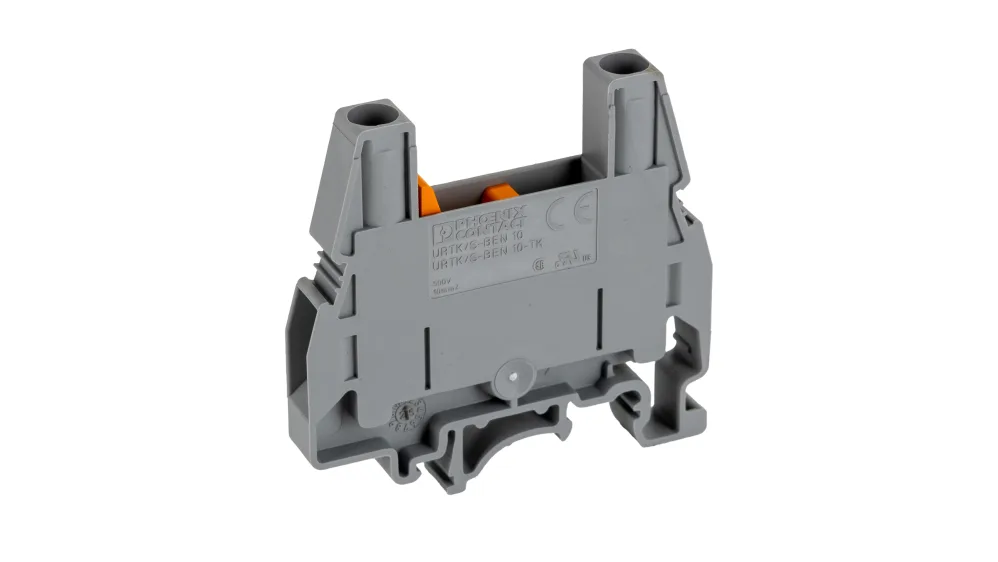

Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block
Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block
Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block
Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block
Specifications
Brand Name :
Phoenix Contact
Model Number :
URTK/S-BEN 10
Certification :
UL,CSA,EAC...
Place of Origin :
TR
MOQ :
1
Price :
$3.12-$3.99
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Packing unit :
50pcs
Minimum order quantity :
1pcs
Width :
8.2 mm
End cover width :
2.2 mm
Height :
61 mm
Depth on NS 32 :
63.5 mm
Depth on NS 35/7,5 :
58.6 mm
Depth on NS 35/15 :
66.1 mm
Color :
gray
voltage :
500 V
nominal current :
57 A
connection method :
Screw connection
Description
Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block

Test disconnect terminal block, nom. voltage: 500 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2 , mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Specifications
Product type Test disconnect terminal block
Number of connections 2
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 1.82 W
Number of connections per level 2
Nominal cross section 10 mm²
Tightening torque disconnect slide M3 0.6 ... 0.8 Nm
Connection method Screw connection
Screw thread M4
Tightening torque 1.5 ... 1.8 Nm
Stripping length 11 mm
Internal cylindrical gage A6
Connection in acc. with standard IEC 60947-7-1
Conductor cross-section rigid 0.5 mm² ... 16 mm²
Cross section AWG 20 ... 6 (converted acc. to IEC)
Conductor cross-section flexible 0.5 mm² ... 10 mm²
Conductor cross-section, flexible [AWG] 20 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.5 mm² ... 10 mm²
Flexible conductor cross-section (ferrule with plastic sleeve) 0.5 mm² ... 6 mm²
Cross-section with insertion bridge, rigid 10 mm²
Cross-section with insertion bridge, flexible 10 mm²
2 conductors with same cross section, solid 0.5 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 4 mm²
Nominal current 57 A
Maximum load current 76 A (with 16 mm² conductor cross-section)
Nominal voltage 500 V
Nominal cross section 10 mm²

Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block
Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block

Phoenix Contact Connector Feed Through Screw Terminal Blocks 0309109 URTK/S-BEN 10 - Test disconnect terminal block
