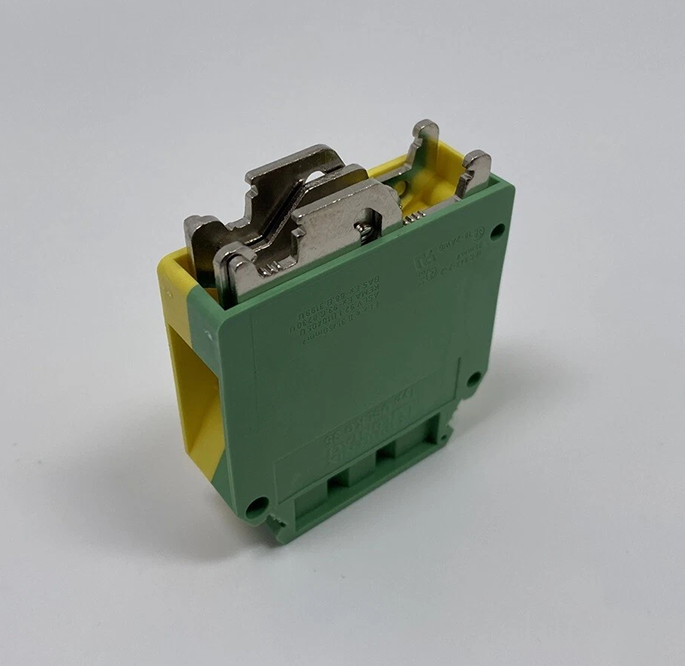

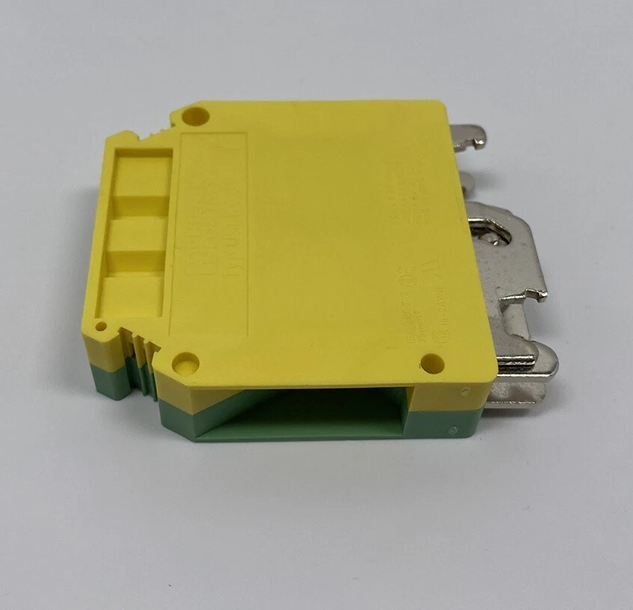

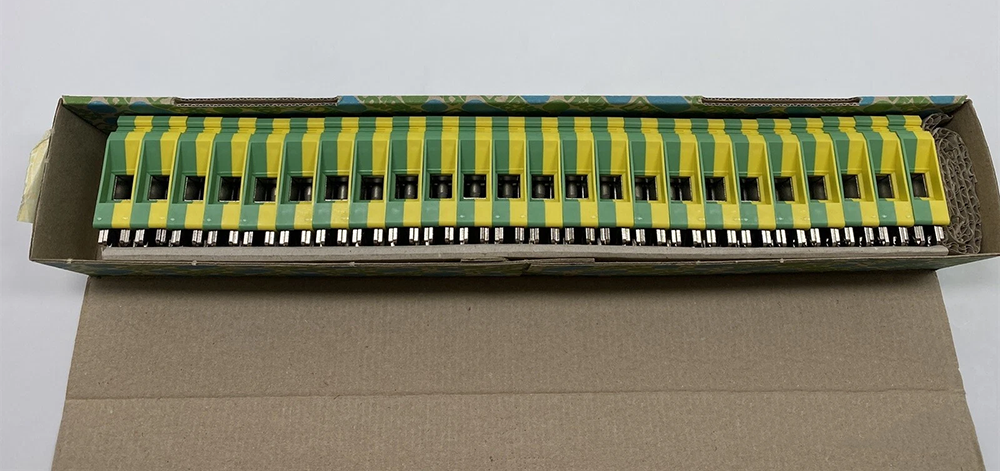

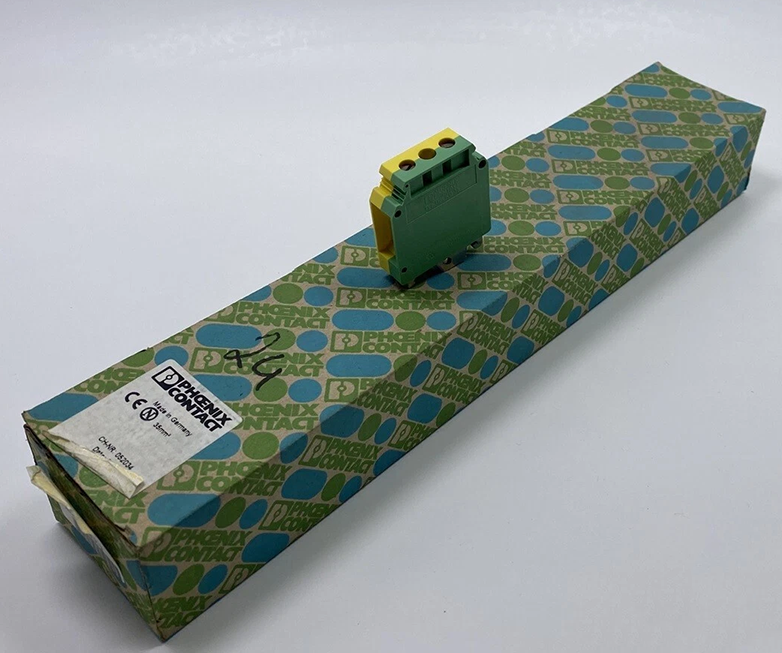

0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
Specifications
Brand Name :
Phoenix Contact
Model Number :
USLKG 35
Certification :
UL,CSA,EAC...
Place of Origin :
DE
MOQ :
25
Price :
$4.78-$5.5
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Packing unit :
25 pcs
Minimum order quantity :
25 pcs
width :
15.2 mm
Height :
50 mm
Color :
gray (RAL 7042)
Product type :
End bracket
Depth on NS 32 :
67 mm
Depth on NS 35/7,5 :
62 mm
Depth on NS 35/15 :
69.5 mm
Description
Phoenix Contact Din Rail Terminal Blocks Screw Blocks 0444019 USLKG 35 - Protective conductor terminal block

Protective conductor terminal block, Use an NS 32... or NS 35... copper DIN rail for connection cross sections of 35 mm2/2 AWG. Use an NS 32... copper DIN rail for connection cross sections > 35 mm2/2 AWG. When aligning with a feed-through terminal block of the same shape, a cover must be used for insulation voltages > 690 V., number of connections: 2, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 0.75 mm2 - 50 mm2, mounting method: PE foot with mounting screw, M5, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow

Product type Ground terminal block
Product family USLKG
Number of connections 2
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 4.06 W
Number of connections per level 2
Nominal cross section 35 mm²
Connection method Screw connection
Screw thread M6
Note Please observe the current carrying capacity of the DIN rails.
Tightening torque 3.2 ... 3.7 Nm
Stripping length 15 mm
Connection in acc. with standard IEC 60947-7-2
Conductor cross-section rigid 0.75 mm² ... 50 mm²

0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block

0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
COMPANY PROFILE
0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block
WHY CHOOSE US?

0444019 USLKG 35 Din Rail Screw Terminal Block Protective Conductor Terminal Block

•Original&New •Fast delivery •Best price&Low MOQ •Professionalafter-sales service

FAQ

1. who are we?

We are based in NanJing City, JiangSu Province China, Start from 2018,sell to Mid East,Southeast Asia,North America,Domestic Market,South Asia,Eastern Asia,,Africa,. There are total about 11-50 people in our office.

2. how can we guarantee quality?

All of goods are from Original Brand New Phoenix Contact, and Provide Video-call, Picture confirmation before shipment. Always final Inspection before shipment;

3.what can you buy from us?

Terminal blocks/Relay/Power Supply....

4. why should you buy from us not from other suppliers?

Professional in instruments over 10 year. Covering many famous brands such as Phoenix Contact/Weidmuller/WAGO..... Cusutomers all over the world,south east of Asia,Middle East.....

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,Credit Card,PayPal,

Shipment:We can ship these goods to you by sea &air,DHL,UPS,FEDEX,TNT.......
  1. It will takes about 20-25days if by sea.
  2. It will takes about 5-7days if by air.
  3. By DHL,UPS,FEDEX,TNT,It will takes about 4-6 working days except festival and holiday.
