Phoenix Contact Original New Terminal Relay 3244232 MSDB 2,5-F - Mini feed-through terminal block
Phoenix Contact Original New Terminal Relay 3244232 MSDB 2,5-F - Mini feed-through terminal block
Phoenix Contact Original New Terminal Relay 3244232 MSDB 2,5-F - Mini feed-through terminal block
Phoenix Contact Original New Terminal Relay 3244232 MSDB 2,5-F - Mini feed-through terminal block
Specifications
Brand Name :
Phoenix Contact
Model Number :
MSDB 2,5-F
Certification :
UL,CSA,EAC...
Place of Origin :
CN
MOQ :
50
Price :
$0.38-$0.4
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Product type :
Miniature terminal block
Number of connections :
4
Number of rows :
1
Number of connections per level :
4
Nominal cross section :
2.5mm
mounting type :
on mounting panel
Description
Phoenix Contact Original New Terminal Relay 3244232 MSDB 2,5-F - Mini feed-through terminal block

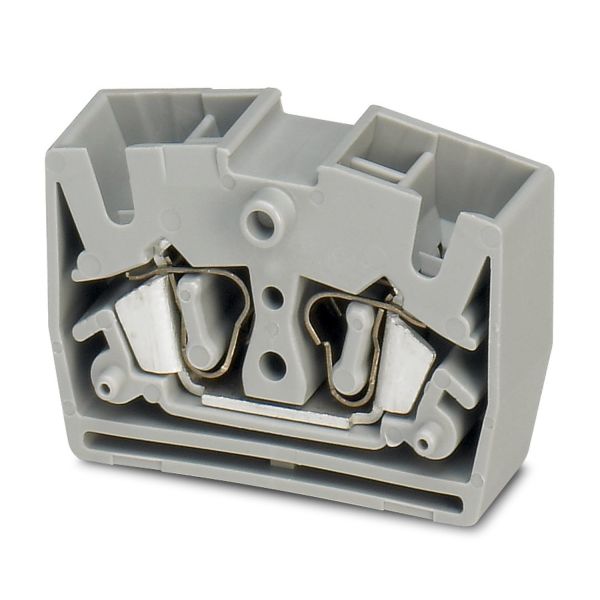

Mini feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 4, connection method: Spring-cage connection, Rated cross section: 2.5 mm2, 1 level, cross section: 0.08 mm2 - 4 mm2, mounting type: on mounting panel, color: gray

Specifications
Product type Miniature terminal block
Number of connections 4
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Connection method Spring-cage connection
Stripping length 8 mm
Internal cylindrical gage A3
Connection in acc. with standard IEC 60947-7-1
Conductor cross-section rigid 0.08 mm² ... 4 mm²
Cross section AWG 28 ... 12 (converted acc. to IEC)
Conductor cross-section flexible 0.08 mm² ... 2.5 mm²
Conductor cross-section, flexible [AWG] 28 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.14 mm² ... 2.5 mm²
Flexible conductor cross-section (ferrule with plastic sleeve) 0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm²
Nominal current 24 A
Maximum load current 30 A (with 4 mm² conductor cross-section)
Nominal voltage 800 V
Nominal cross section 2.5 mm²
Connection in acc. with standard IEC/EN 60079-7
Cross section AWG 28 ... 12 (converted acc. to IEC)
Conductor cross-section, flexible [AWG] 28 ... 14 (converted acc. to IEC)
Smoke gas toxicity NFPA 130 (SMP 800C) passed
