Phoenix Contact Original Screw Terminal Relay 2708245 SUBCON-PLUS-PROFIB/PG/SC2 - D-SUB bus connector
Phoenix Contact Original Screw Terminal Relay 2708245 SUBCON-PLUS-PROFIB/PG/SC2 - D-SUB bus connector
Phoenix Contact Original Screw Terminal Relay 2708245 SUBCON-PLUS-PROFIB/PG/SC2 - D-SUB bus connector
Phoenix Contact Original Screw Terminal Relay 2708245 SUBCON-PLUS-PROFIB/PG/SC2 - D-SUB bus connector
Specifications
Brand Name :
Phoenix Contact
Model Number :
SUBCON-PLUS-PROFIB/PG/SC2
Certification :
UL,CSA,EAC...
Place of Origin :
DE
MOQ :
1
Price :
$27-$35
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Product type :
Data plug
Connection method :
Screw connection
Stripping length :
5 mm
Bus system :
PROFIBUS DP
Signal :
PROFIBUS
Description

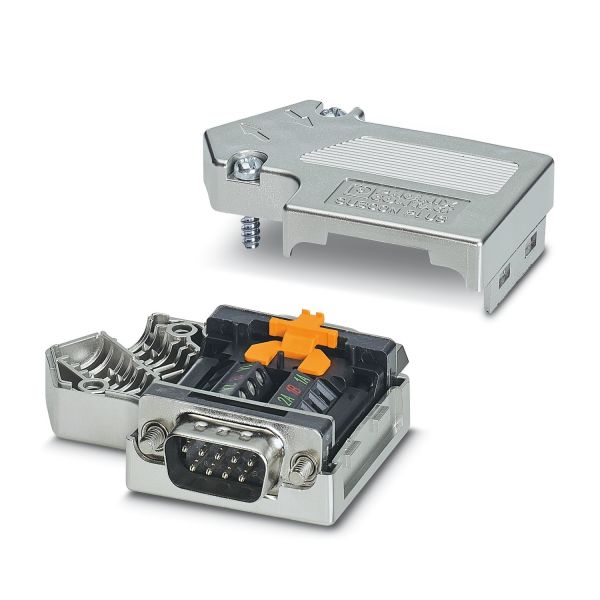

Phoenix Contact Original Screw Terminal Relay 2708245 SUBCON-PLUS-PROFIB/PG/SC2 - D-SUB bus connector

D-SUB connector, 9-pos., pin, 35° cable outlet, bus system: PROFIBUS DP up to 12 Mbps with PG D-SUB socket for connecting a programming device, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks

Specifications
Product type Data plug
MTTF 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Pin assignment 3, 5, 6, 8
Maximum power dissipation for nominal condition 0.025 W
Nominal voltage UN 5 V
Nominal current IN 100 mA
Transmission medium Copper
Connection method D-SUB connector
PCB connection
Connection method Screw connection
Stripping length 5 mm
Conductor cross-section, rigid min. 0.14 mm²
Conductor cross-section, rigid max. 1.5 mm²
Conductor cross-section flexible min. 0.14 mm²
Conductor cross-section flexible max. 1 mm²
Single-wire/terminal point, rigid AWG min. 26
Single-wire/terminal point, rigid AWG max. 16
Min. AWG conductor cross-section, flexible 26
Max. AWG conductor cross-section, flexible 18
