3000610 Phoenix Contact Original Din Rail UTTB 4 HV - Double-level terminal block
3000610 Phoenix Contact Original Din Rail UTTB 4 HV - Double-level terminal block
3000610 Phoenix Contact Original Din Rail UTTB 4 HV - Double-level terminal block
3000610 Phoenix Contact Original Din Rail UTTB 4 HV - Double-level terminal block
Specifications
Brand Name :
Phoenix Contact
Model Number :
UTTB 4 HV
Certification :
UL,CSA,EAC...
Place of Origin :
CN
MOQ :
50
Price :
$1.23-$1.99
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Product Name :
Multi-level terminal block
Product family :
UT
voltage: :
1000 V
nominal current: :
30 A
connection method :
Screw connection
Rated cross section :
4 mm²
cross section :
0.14 mm2 - 6 mm²
mounting type :
NS 35/7,5, NS 35/15
Description

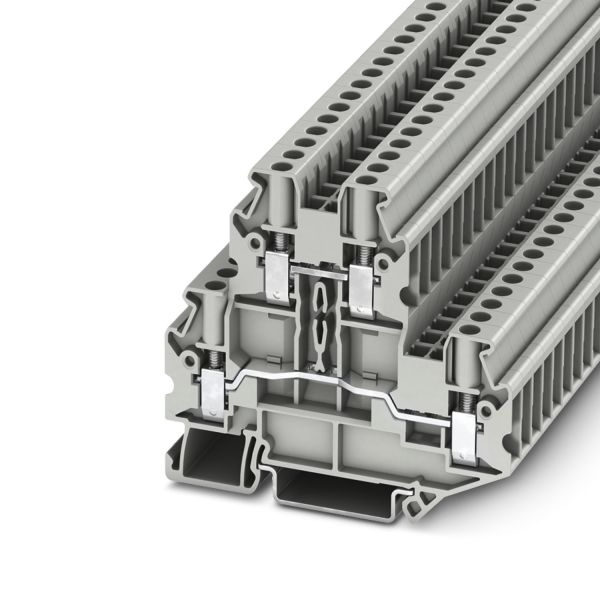

3000610 Phoenix Contact Original Din Rail UTTB 4 HV - Double-level terminal block

Double-level terminal block, nom. voltage: 1000 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.14 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

Specifications
Product type Multi-level terminal block
Product family UT
Number of connections 4
Number of rows 2
Potentials 2
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 1.02 W
Number of connections per level 2
Nominal cross section 4 mm²
Connection method Screw connection
Screw thread M3
Tightening torque 0.6 ... 0.8 Nm
Stripping length 9 mm
Internal cylindrical gage A4
Connection in acc. with standard IEC 60947-7-1
Conductor cross-section rigid 0.14 mm² ... 6 mm²
Cross section AWG 26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible 0.14 mm² ... 6 mm²
Conductor cross-section, flexible [AWG] 26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.14 mm² ... 4 mm²
