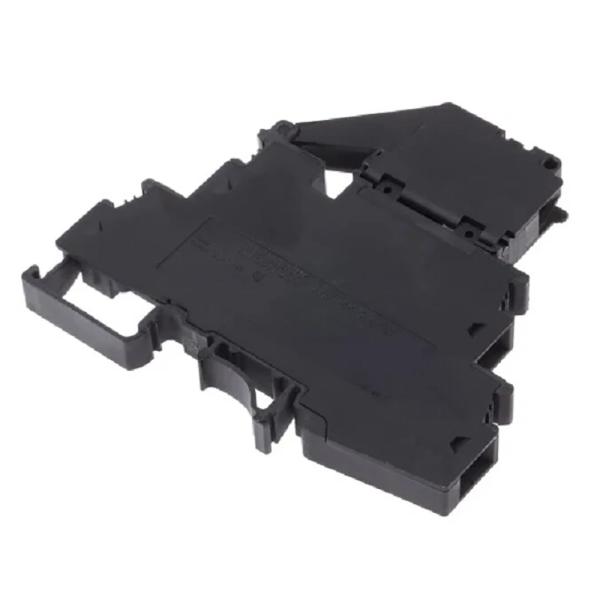

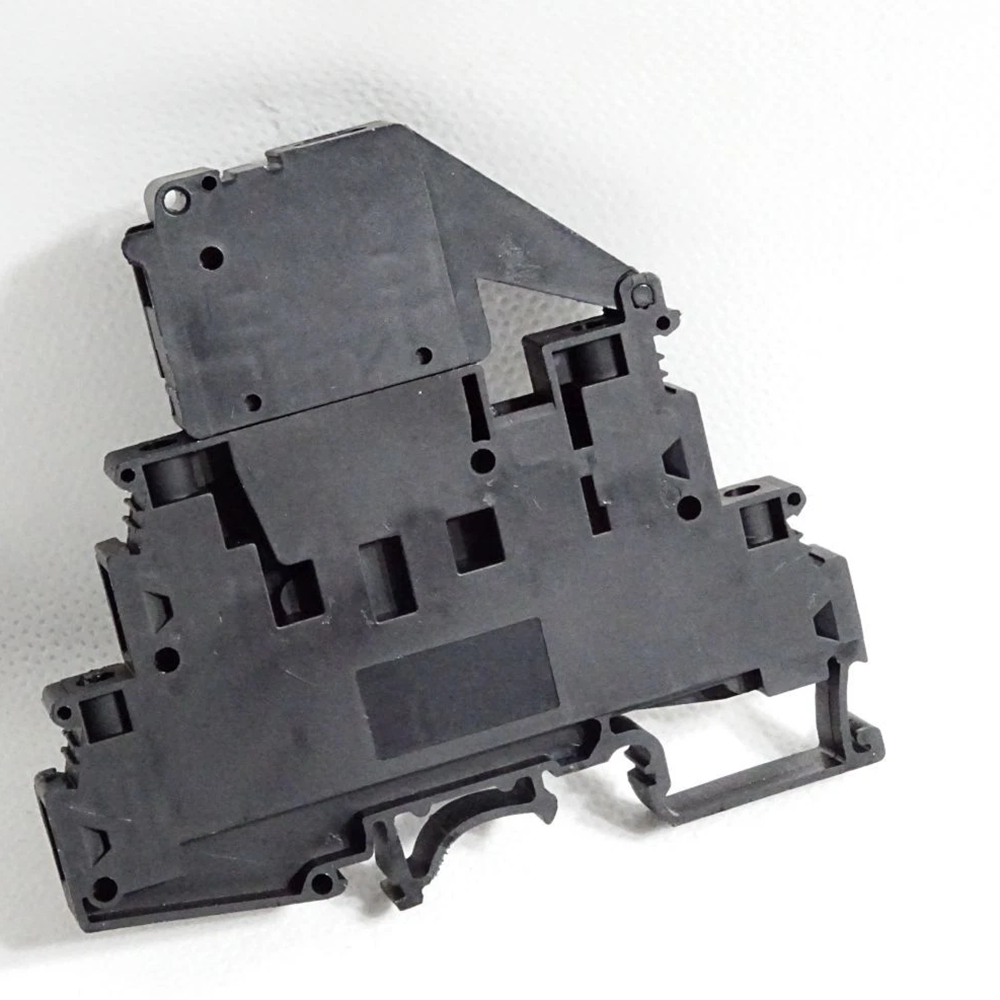

Phoenix Contact Brand New Original Screw Terminal Connector 3007204 UKK 5-HESI (5X20) - Fuse modular terminal block
Phoenix Contact Brand New Original Screw Terminal Connector 3007204 UKK 5-HESI (5X20) - Fuse modular terminal block
Phoenix Contact Brand New Original Screw Terminal Connector 3007204 UKK 5-HESI (5X20) - Fuse modular terminal block
Phoenix Contact Brand New Original Screw Terminal Connector 3007204 UKK 5-HESI (5X20) - Fuse modular terminal block
Specifications
Brand Name :
Phoenix Contact
Model Number :
UKK 5-HESI (5X20)
Certification :
UL,CSA,EAC...
Place of Origin :
PL
MOQ :
1
Price :
$5.2-$6.2
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Product Name :
Fuse terminal block
Width :
8.2 mm
Height :
86.5 mm
Depth on NS 32 :
84 mm
Depth on NS 35/7,5 :
79 mm
Depth on NS 35/15 :
86.5 mm
Description
Phoenix Contact Brand New Original Screw Terminal Connector 3007204 UKK 5-HESI (5X20) - Fuse modular terminal block

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 400 V, nominal current: 32 A, number of positions: 1, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2- 4 mm2, connection method: Screw connection, cross section: 0.2 mm2- 4 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black

Specifications
Product type Fuse terminal block
Number of positions 1
Number of connections 4
Number of rows 2
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Fuse type Glass / ceramics / ...
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 1.02 W
Fuse G / 5 x 20
Number of connections per level 2
Nominal cross section 4 mm²
Connection method Screw connection
Screw thread M3
Connection method Screw connection
Screw thread M3
Tightening torque 0.5 ... 0.8 Nm
Stripping length 8 mm
Connection in acc. with standard IEC 60947-7-1
Conductor cross-section rigid 0.2 mm² ... 4 mm²
Cross section AWG 24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible 0.2 mm² ... 4 mm²
Conductor cross-section, flexible [AWG] 24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.25 mm² ... 4 mm²
