Specifications
Brand Name :
YOKG
Model Number :
GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, GMC-85
Place of Origin :
China
MOQ :
500
Payment Terms :
T/T,L/C
Certification :
CE
Packaging Details :
Standard export package
Number of Poles :
3
Protection Level :
IP20
Current Rating :
9A,12A,18A,22A,32A,40A,50A,65A,75A,85A
Voltage Rating :
220V
Installation category :
III
Coil Voltage :
220V/110V/24V/380V
Mounting Type :
DIN Rail
Frequency Rating :
50/60Hz
Description

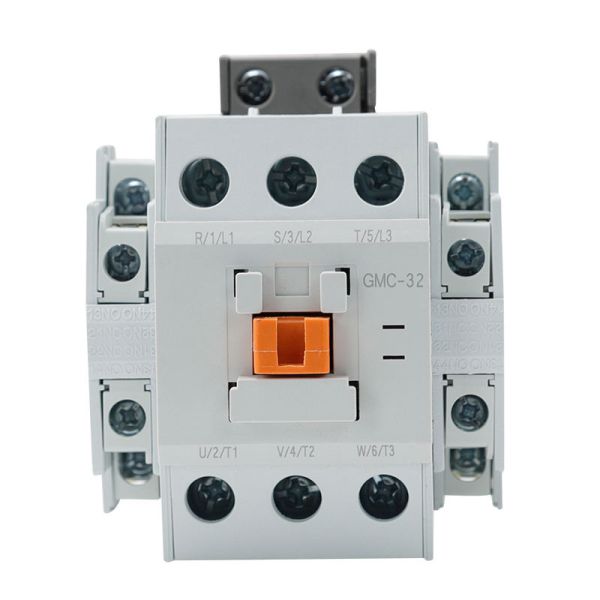

IP20 Protection Level AC Electric Contactor
Product Overview
The AC Electric Contactor is a robust and reliable device designed for controlling electrical power in various industrial and commercial applications. Engineered specifically for three-phase electrical systems, it serves as an essential component for motor control circuits, lighting, heating, and other electrical equipment requiring frequent switching.
Key Features
  • Product Name: AC Electric Contactor
  • Enclosure Material: Durable Plastic
  • Mounting Type: Easy DIN Rail Installation
  • Installation Category: III for enhanced safety
  • Protection Level: IP20 to prevent solid object ingress
  • Voltage Rating: 220V suitable for various applications
  • Features both NC+NO contacts for versatile control
  • Reliable AC Contactor performance for industrial use
Applications
The AC Electric Contactor series, including models GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85, is designed for a wide range of applications where reliable electrical switching is essential. The silver point contactor ensures excellent conductivity and durability, providing reliable switching for motors, lighting systems, and heating equipment.
Technical Specifications
Type GC-32 GC-40 GC-50 GC-65 GC-75 GC-85
Rated heating current (A) 50 60 80 100 110 135
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 2NC+2NO
Short-time withstand current(A) 10S 256 320 400 520 600 680
IEC-60947 AC1 Load 50 60 80 100 110 135
AC3 Load Power
200～240V 7.5KW 11KW 15KW 18.5KW 22KW 25KW
380～440V 15KW 18.5KW 22KW 30KW 37KW 45KW
500～550V 18.5KW 22KW 30KW 33KW 37KW 45KW
690V 18.5KW 22KW 30KW 33KW 37KW 45KW
AC3 Load Current
200～240V 32A 40A 55A 65A 75A 85A
380～440V 32A 40A 50A 65A 75A 85A
500～550V 28A 32A 43A 60A 64A 75A
690V 20A 23A 28A 35A 42A 45A
UL508 Continuous Current
Continuous current 45A 50A 70A 80A 90A 100A
Single-Phase Machine
115V 2HP 3HP 3HP 5HP 5HP 7.5HP
230V 5HP 5HP 7.5HP 10HP 15HP 15HP
Three-Phase Machine
200V 7.5HP 10HP 10HP 15HP 20HP 25HP
230V 10HP 10HP 15HP 20HP 25HP 30HP
460V 20HP 25HP 30HP 40HP 50HP 50HP
575V 20HP 25HP 30HP 40HP 50HP 50HP
Operation frequency (times/h) Electrical life: 800 | Mechanical life: 3600
AC-3 Electrical life (10000/times) 80 80 60 60 60 60
Mechanical life (10000/times) 800 800 600 600 600 600
Installation Dimensions
IP20 Protection Level AC Electric Contactor Installation Category III Plastic Enclosure Material Designed for Electrical Switching Applications IP20 Protection Level AC Electric Contactor Installation Category III Plastic Enclosure Material Designed for Electrical Switching Applications IP20 Protection Level AC Electric Contactor Installation Category III Plastic Enclosure Material Designed for Electrical Switching Applications IP20 Protection Level AC Electric Contactor Installation Category III Plastic Enclosure Material Designed for Electrical Switching Applications IP20 Protection Level AC Electric Contactor Installation Category III Plastic Enclosure Material Designed for Electrical Switching Applications
Frequently Asked Questions
What are the available model numbers for the YOKG AC Electric Contactor?
The YOKG AC Electric Contactor is available in the following model numbers: GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85.
Where is the YOKG AC Electric Contactor manufactured?
The YOKG AC Electric Contactor is manufactured in China.
What is the minimum order quantity for the YOKG AC Electric Contactor?
The minimum order quantity for the YOKG AC Electric Contactor is 100 units.
What payment terms does YOKG accept for purchasing the AC Electric Contactor?
YOKG accepts payment terms via T/T (Telegraphic Transfer) and L/C (Letter of Credit) for the AC Electric Contactor.
What applications are suitable for the YOKG AC Electric Contactor?
The YOKG AC Electric Contactor is suitable for controlling electric motors, lighting, heating, and other electrical loads in industrial and commercial applications.
