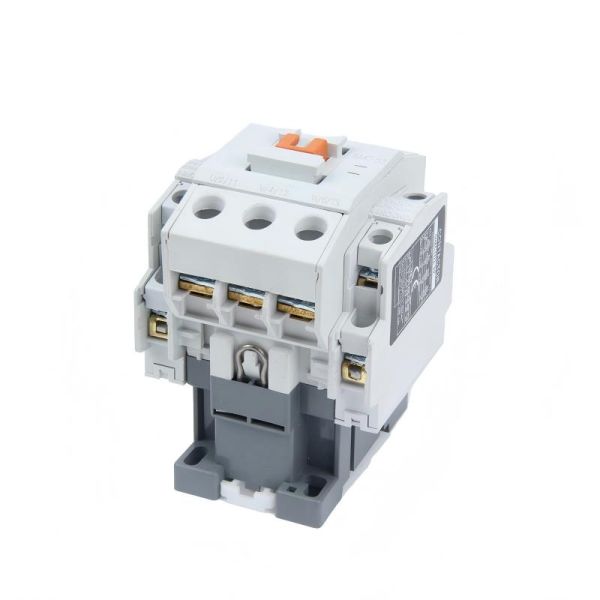

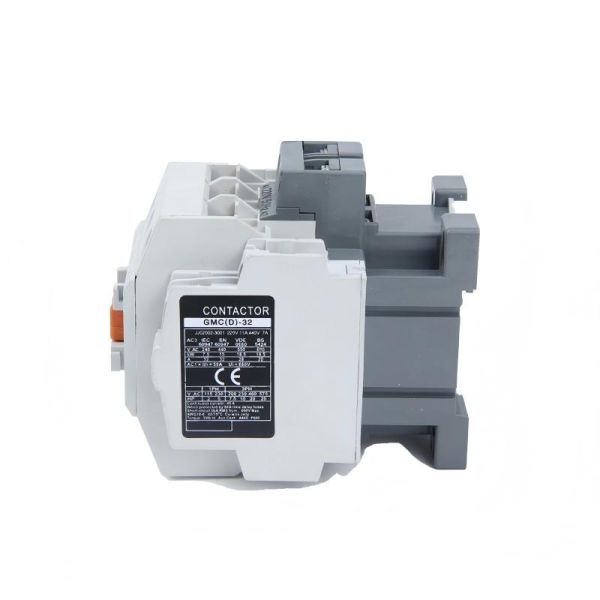

3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
Specifications
Brand Name :
YOKG
Model Number :
GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, GMC-85
Place of Origin :
China
MOQ :
100
Payment Terms :
T/T,L/C
Certification :
CE
Packaging Details :
Standard export package
Current Rating :
9A,12A,18A,22A,32A,40A,50A,65A,75A,85A
Mounting Type :
DIN Rail
Voltage Rating :
220V
Pollution degree :
Class 3
Number of Poles :
3
Frequency Rating :
50/60Hz
Contact Material :
Silver OR COPPER
Protection Level :
IP20
Description
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
Product Features
  • Product Name: AC Electric Contactor
  • Protection Level: IP20
  • Mounting Type: DIN Rail
  • Voltage Rating: 220V
  • Coil Voltage Options: 220V, 110V, 24V, 380V
  • Number of Poles: 3
  • Silver point contactor for enhanced conductivity and durability
  • Includes NC/NO (Normally Closed/Normally Open) contacts for versatile control
  • Flexible wiring and operation with NC/NO contact configuration
Technical Specifications
Type GMC-32 GMC-40 GMC-50 GMC-65 GMC-75 GMC-85
Rated heating current (A) 50 60 80 100 110 135
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 2NC+2NO
Short-time withstand current(A) 10S 256 320 400 520 600 680
IEC-60947 AC1 Load 50 60 80 100 110 135
AC3 Load Power (KW)
Voltage GMC-32 GMC-40 GMC-50 GMC-65 GMC-75 GMC-85
200～240V 7.5KW 11KW 15KW 18.5KW 22KW 25KW
380～440V 15KW 18.5KW 22KW 30KW 37KW 45KW
500～550V 18.5KW 22KW 30KW 33KW 37KW 45KW
690V 18.5KW 22KW 30KW 33KW 37KW 45KW
AC3 Load Current (A)
Voltage GMC-32 GMC-40 GMC-50 GMC-65 GMC-75 GMC-85
200～240V 32A 40A 55A 65A 75A 85A
380～440V 32A 40A 50A 65A 75A 85A
500～550V 28A 32A 43A 60A 64A 75A
690V 20A 23A 28A 35A 42A 45A
UL508 Specifications
Parameter GMC-32 GMC-40 GMC-50 GMC-65 GMC-75 GMC-85
Continuous current 45A 50A 70A 80A 90A 100A
Single-phase machine 115V 2HP 3HP 3HP 5HP 5HP 7.5HP
Single-phase machine 230V 5HP 5HP 7.5HP 10HP 15HP 15HP
Three-phase machine 200V 7.5HP 10HP 10HP 15HP 20HP 25HP
Three-phase machine 230V 10HP 10HP 15HP 20HP 25HP 30HP
Three-phase machine 460V 20HP 25HP 30HP 40HP 50HP 50HP
Three-phase machine 575V 20HP 25HP 30HP 40HP 50HP 50HP
Operation Frequency and Life Cycle
Parameter GMC-32 GMC-40 GMC-50 GMC-65 GMC-75 GMC-85
Operation frequency (times/h) Electrical life 800 600
Operation frequency (times/h) Mechanical life 3600
AC-3 Electrical life (10000/times) 80 80 60 60 60 60
Mechanical life (10000/times) 800 800 600 600 600 600
Installation Dimensions
3 Phase Contactor Offering Electrical Switching With IP20 Protection Level 3 Phase Contactor Offering Electrical Switching With IP20 Protection Level 3 Phase Contactor Offering Electrical Switching With IP20 Protection Level 3 Phase Contactor Offering Electrical Switching With IP20 Protection Level
Frequently Asked Questions
What are the available models of the YOKG AC Electric Contactor?
The YOKG AC Electric Contactor is available in the following models: GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85.
Where is the YOKG AC Electric Contactor manufactured?
The YOKG AC Electric Contactor is manufactured in China.
What is the minimum order quantity for the YOKG AC Electric Contactor?
The minimum order quantity for the YOKG AC Electric Contactor is 100 units.
What payment terms does YOKG accept for purchasing the AC Electric Contactor?
YOKG accepts T/T (Telegraphic Transfer) and L/C (Letter of Credit) as payment terms for the AC Electric Contactor.
Can the YOKG AC Electric Contactor be used in industrial applications?
Yes, the YOKG AC Electric Contactor is designed for various industrial applications requiring reliable switching of electrical circuits.
