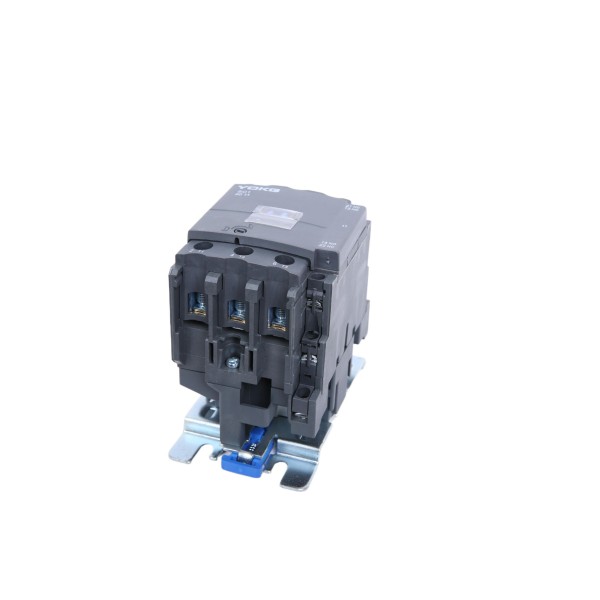

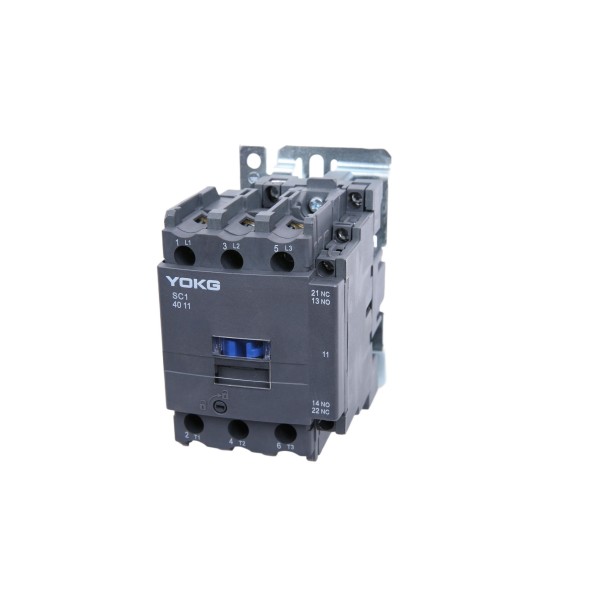

AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
Specifications
Packaging Details :
Each unit be packed in one individual inner box
Rated Operational Voltage :
220VAC,380VAC
Place of Origin :
Zhejiang, China
Insulation Voltage :
690VAC
Brand Name :
YOKG or OEM
Payment Terms :
T/T,L/C
Installation Method :
Screw OR DIN RAIL
Number of Auxiliary Contacts :
3
Rated Voltage :
220VAC
Delivery Time :
10 DAYS
Rated Insulation Voltage :
690VAC
Model Number :
SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95
MOQ :
200
Power Frequency :
50/60Hz
Rated Current :
20A, 32A, 40A, 50A, 60A, 80A, 125A
Certification :
CE
Description
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
Product Features
  • Product Name: 3 Pole AC Contactor
  • Suitable for 3 phase electrical systems
  • Rated Operational Voltage: 220VAC, 380VAC
  • Rated Current options: 20A, 32A, 40A, 50A, 60A, 80A, 125A
  • Auxiliary Contacts: 1NO + 1NC, with a total of 3 auxiliary contacts available
  • Flexible installation using Rail or Screw mounting
Technical Specifications
Parameter Value
Product Type 3 Pole AC magnetic contactor
Number of Poles 3
Insulation Voltage 690VAC
Rated Voltage 220VAC
Rated Operational Voltage 220VAC, 380VAC
Power Frequency 50/60Hz
Protection Level IP20
Auxiliary Contact 1NO+1NC
Number of Auxiliary Contacts 3
Rated Current 20A, 32A, 40A, 50A, 60A, 80A, 125A
Detailed Technical Performance
Type SC1-40 SC1-50 SC1-65 SC1-80 SC1-95
Rated heating current (A) 50 60 80 110 110
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NO + 1NC
Short-time withstand current(A) 10S 320 400 520 640 760
AC-3 Rated working current(A) 220V/230V 40 50 65 80 95
AC-3 Rated working current(A) 380V/400V 40 50 65 80 95
AC-3 Rated working current(A) 660V/690V 34 39 42 49 49
AC-3 capacity of phase 3 squirrel-cage motor (KW) 220V/230V 11 15 18.5 22 25
AC-3 capacity of phase 3 squirrel-cage motor (KW) 380V/400V 18.5 22 30 37 45
AC-3 capacity of phase 3 squirrel-cage motor (KW) 660V/690V 30 33 37 45 45
Operation frequency (times/h) Electrical life 600
Operation frequency (times/h) Mechanical life 3600
AC-3 Electrical life (10000/times) 80 60 60 60 60
Mechanical life (10000/times) 800 800 800 600 600
Equipped fuse type RT16-63 RT16-80 RT16-80 RT16-100 RT16-125
Product Dimensions and Installation
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
Type A max B max C max a b ∅
SC1-40～65 75 127 119 40 100/110 6.5
SC1-80～95 85 127 130 40 100/110 6.5
AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor AC 380V Rated Voltage 220VAC 3 Phase Electrical Contactor
Frequently Asked Questions
What brand names are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand names YOKG or OEM.
What are the model numbers available for this product?
The product is available in several model numbers including SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95.
Where is the 3 Pole AC Contactor manufactured?
This product is manufactured in Zhejiang, China.
What is the minimum order quantity for the 3 Pole AC Contactor?
The minimum order quantity for this product is 200 units.
What are the payment terms and delivery time for orders?
Payment terms include T/T and L/C, and the delivery time is typically 10 days after order confirmation.
