40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
Specifications
Main circuit rating :
25A,63A,100A
Model Number :
HC-225, HC-425, HC-263, HC-463
Contact :
2NO, 4NO
Payment Terms :
L/C, D/P, T/T
Application :
Home Use, hotels, apartment
Price :
Negotiable
Pole :
1P 2P 3P 4P
Supply Ability :
100000pcs per Month
Degree of protection :
IP20
Certification :
CE
Operating Temperature :
-5°C ~+60°C
Standard :
IEC standard
MOQ :
100PCS
Delivery Time :
15days or Depends on ordering QTYS
Voltage :
24V, 48V, 110V, 230V
Place of Origin :
China
Service :
OEM ODM
Packaging Details :
Standard export packing or According to customer's demand
Coil :
AC
Brand Name :
YOKG
Description
Product Overview
40A 63A Low Voltage Household AC Contactor with 1P/2P/3P/4 Poles and 25A rating for residential electrical applications.
Key Applications & Features
  • Compact Design: Space-saving construction for seamless integration into home electrical systems
  • Low-Voltage Operation: Safe and efficient performance for household use
  • Multiple Current Ratings: Available in 25A, 63A, and 100A to meet diverse residential electrical requirements
  • Residential Application: Specifically designed for home use with reliable and safe operation
  • AC Electricity Compatibility: Works with standard household electrical outlets
Technical Specifications
Appointed Operation Performance
Utilization Category Ic/Ie Ur/Ue cos Φ Making Time (s) Interval Time (s) Operation Cycle (times)
AC-7a 1.0 1.05 0.80 0.05 10 30,000
AC-7b (c) (b) 0.45 0.05 10 30,000
(a) If contact has closed completely before breaking again, the making time is allowed less than 0.05s.
(b) For making operation Ur/Ue=1.0, for breaking operation Ur/Ue=0.17
(c) For making operation Ic/Ie=6.0, for breaking operation Ic/Ie=1.0
Making and Breaking Capacity
Utilization Category Ic/Ie Ur/Ue cos Φ Making Time (s) Interval Time (s) Operation Cycle (times)
AC-7a 1.5 1.05 0.80 0.05 10 50
AC-7b 8 1.05 0.45 0.05 10 50
Operational Lifespan
Mechanical Life: 1 million cycles with maximum 300 operation cycles per hour
Electrical Life: 100,000 cycles with maximum 100 operation cycles per day
Product Features
  • Modular control appliances with innovative structure and compact dimensions
  • DIN-rail installation with modular sizing for easy integration
  • Aesthetically pleasing design with enhanced safety features
  • Compatible with inversion structure and combinable with mini circuit breakers in lighting boxes
  • High-quality insulation materials for improved safety performance
  • Quiet operation suitable for hotels, hospitals, and residential settings
This product series has passed authoritative testing by TUV Rheinland laboratories and holds CE certification.
HC Home Contactor Order Codes
25A Models
Voltage 2P Models 4P Models
24V HC-225-24-10 HC-425-24-30
HC-225-24-20 HC-425-24-40
HC-225-24-11 HC-425-24-31
HC-225-24-02 HC-425-24-22
HC-425-24-04
63A Models
Voltage 2P Models 4P Models
24V HC-263-24-10 HC-463-24-30
HC-263-24-20 HC-463-24-40
HC-263-24-11 HC-463-24-31
HC-263-24-02 HC-463-24-22
HC-463-24-04

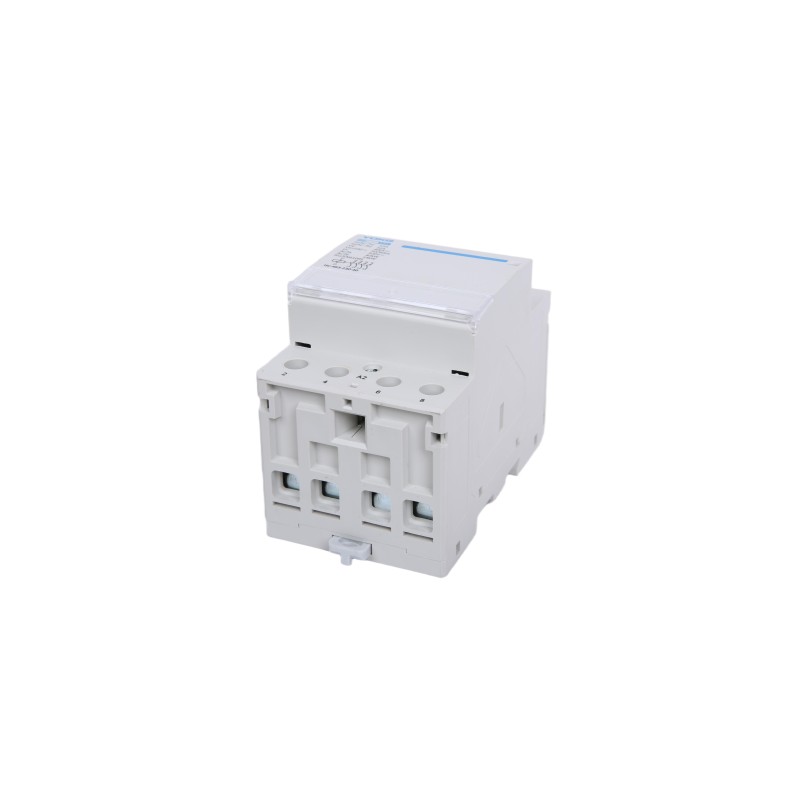

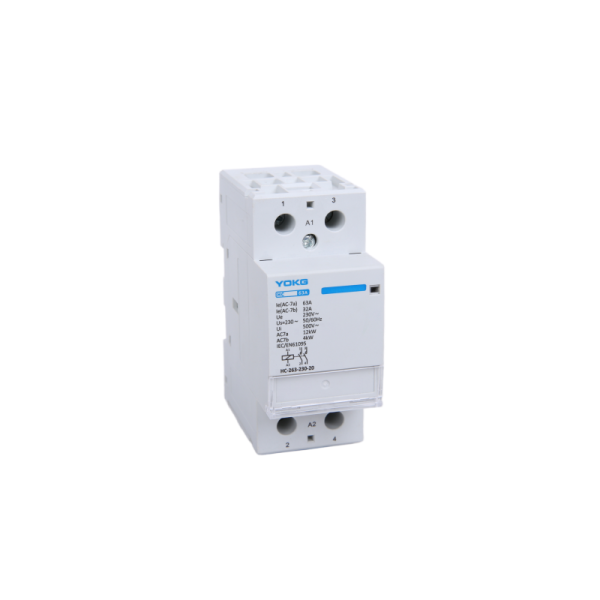

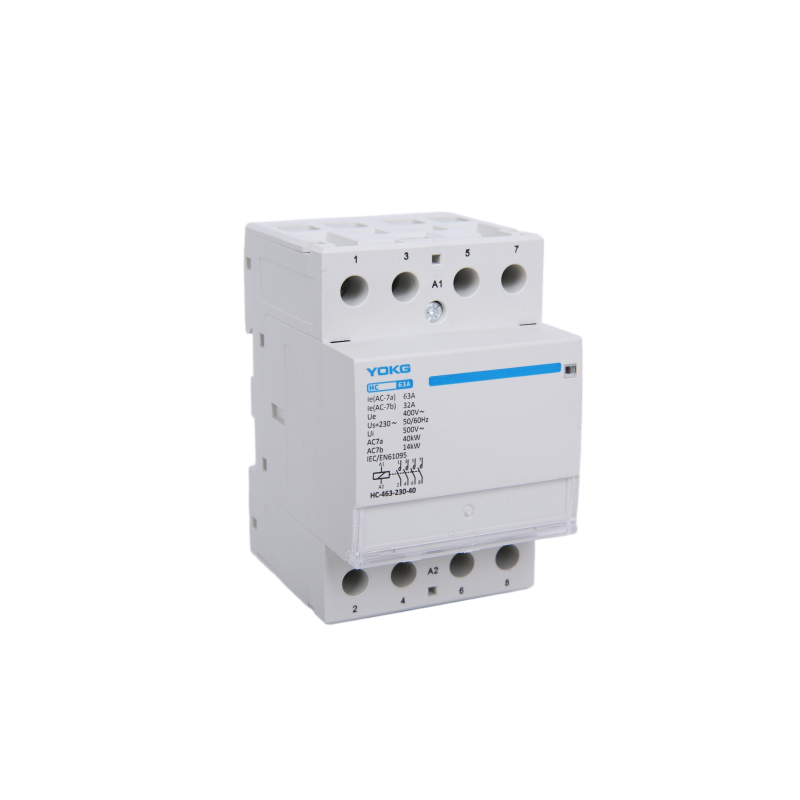

Product Images
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use 40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
Certifications
40A 63A Low Voltage Household AC Contactor 1P/2P/3P/4 Poles 25A for Home Use
Frequently Asked Questions
Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
What's the lead time for regular order?
Normally 7~15 working days, depending on order quantity and customization requirements.
Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
How about payment terms?
Our Payment term is T/T, Western Union, L/C at sight.
Which shipping method do you provide?
Sea freight, air freight, express delivery (DHL/FedEx/UPS) as per your request.
