Specifications
Ambient Temperature :
-25℃~+40℃
Certification :
CE,TUV
Rated Operating Voltage :
220V,24V,48V,110V
Mounting Type :
Din Rail Or Screw Mounting
Delivery Time :
10 DAYS
Rated Insulation Voltage :
660V
MOQ :
200
Mechanical Life :
100,0000 Times
Brand Name :
OEM YOKG
Application :
Household, Industrical, AC Motor
Product Name :
Household AC Contactor
Place of Origin :
Zhejiang, China
Rated Impulse Withstand Voltage :
4KV
Packaging Details :
STANDARD EXPORT CARTON BOX
Payment Terms :
T/T,L/C
Model Number :
25A 40A 63A 100A
Description
Household AC Contactor - 4P 25A DIN Rail Modular
Product Features
  • Product Name: Household AC Contactor
  • Suitable for ambient temperature range: -25℃ to +40℃
  • Frequency: 50/60Hz
  • Rated Insulation Voltage: 690V
  • Available Rated Voltages: AC 380V, 220V, 110V, 24V
  • Contact configurations: 2NO + 2NC, 4NO, 2NO, 1NO + 1NC
  • Designed specifically as a household contactor
Applications

YOKG Household AC Contactor is an essential component for reliable and efficient electrical control solutions. Ideal for household automation, industrial machinery control, and motor switching applications, this contactor offers durability, versatility, and ease of installation, backed by reputable certifications and manufacturing standards.

HC Home Contactor Order Codes
25A Models
Voltage 2P Models 4P Models
24V HC-225-24-10 HC-425-24-30
HC-225-24-20 HC-425-24-40
HC-225-24-11 HC-425-24-31
HC-225-24-02 HC-425-24-22
HC-425-24-04
48V HC-225-48-10 HC-425-48-30
HC-225-48-20 HC-425-48-40
HC-225-48-11 HC-425-48-31
HC-225-48-02 HC-425-48-22
HC-425-48-04
110V HC-225-110-10 HC-425-110-30
HC-225-110-20 HC-425-110-40
HC-225-110-11 HC-425-110-31
HC-225-110-02 HC-425-110-22
HC-425-110-04
230V HC-225-230-10 HC-425-230-30
HC-225-230-20 HC-425-230-40
HC-225-230-11 HC-425-230-31
HC-225-230-02 HC-425-230-22
HC-425-230-04
63A Models
Voltage 2P Models 4P Models
24V HC-263-24-10 HC-463-24-30
HC-263-24-20 HC-463-24-40
HC-263-24-11 HC-463-24-31
HC-263-24-02 HC-463-24-22
HC-463-24-04
48V HC-263-48-10 HC-463-48-30
HC-263-48-20 HC-463-48-40
HC-263-48-11 HC-463-48-31
HC-263-48-02 HC-463-48-22
HC-463-48-04
110V HC-263-110-10 HC-463-110-30
HC-263-110-20 HC-463-110-40
HC-263-110-11 HC-463-110-31
HC-263-110-02 HC-463-110-22
HC-463-110-04
230V HC-263-230-10 HC-463-230-30
HC-263-230-20 HC-463-230-40
HC-263-230-11 HC-463-230-31
HC-263-230-02 HC-463-230-22
HC-463-230-04

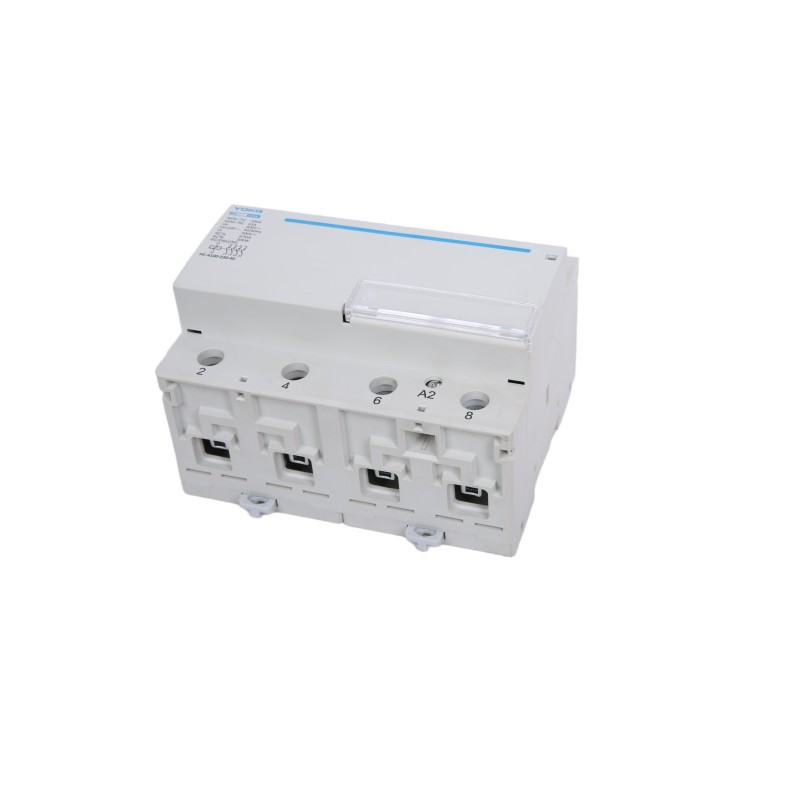

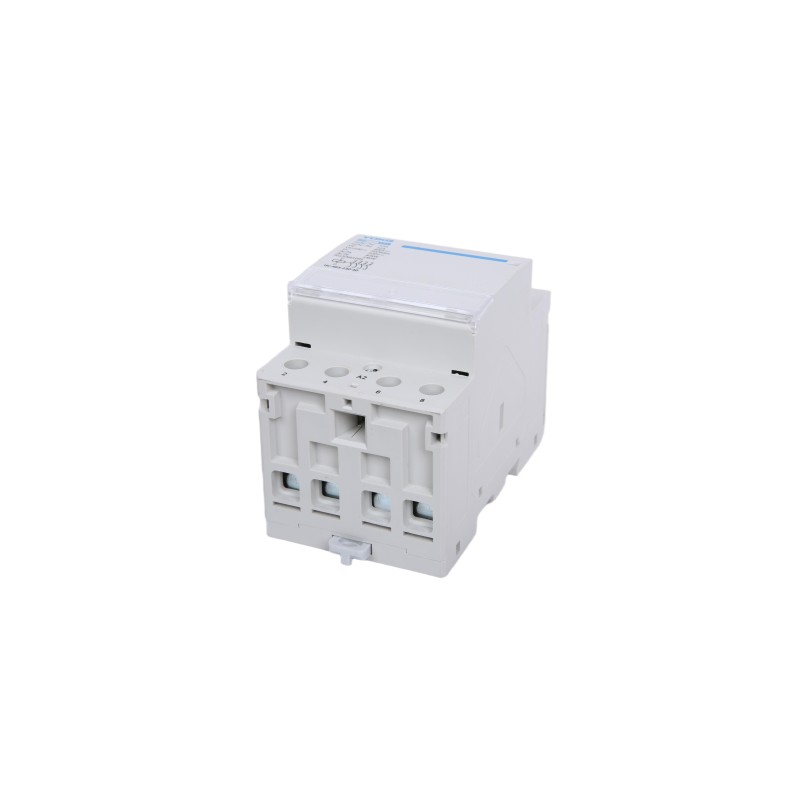

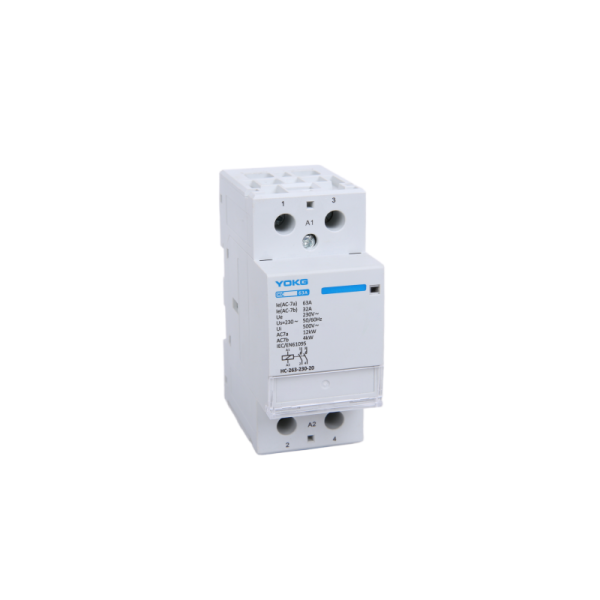

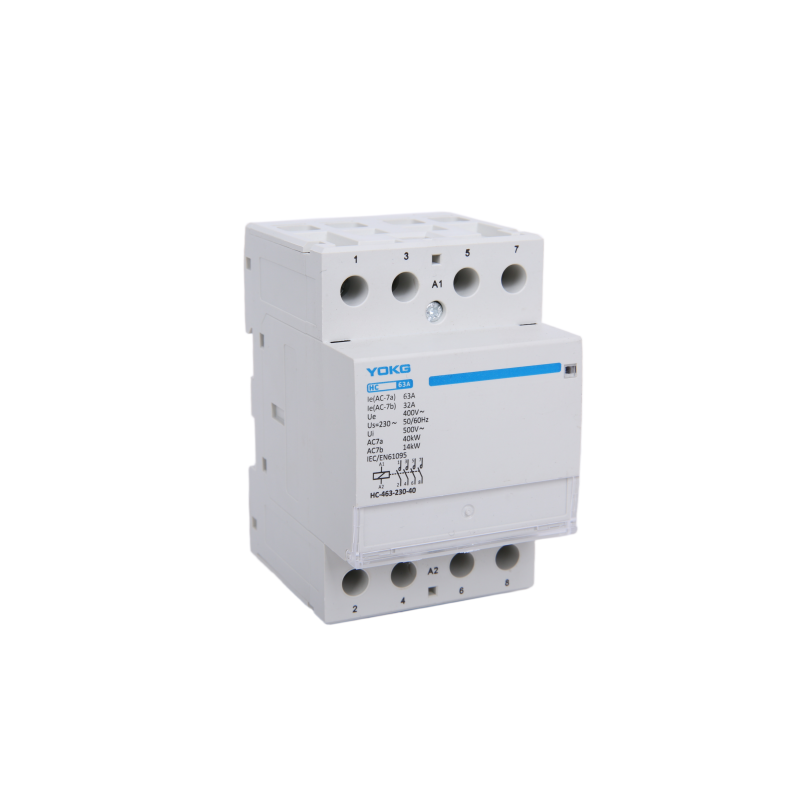

Product Images
NO NC AC 4P 25A Household 380V Din Rail Modular Contactor 220V/230V 50/60Hz NO NC AC 4P 25A Household 380V Din Rail Modular Contactor 220V/230V 50/60Hz NO NC AC 4P 25A Household 380V Din Rail Modular Contactor 220V/230V 50/60Hz NO NC AC 4P 25A Household 380V Din Rail Modular Contactor 220V/230V 50/60Hz
Frequently Asked Questions
What brand manufactures this Household AC Contactor?
The Household AC Contactor is manufactured by OEM YOKG.
What model numbers are available for this product?
The available model numbers are 25A, 40A, 63A, and 100A.
Where is the Household AC Contactor produced?
This product is made in Zhejiang, China.
What certifications does the Household AC Contactor have?
The product holds CE and TUV certifications, ensuring quality and safety standards.
What is the minimum order quantity and delivery time?
The minimum order quantity is 200 units, and the delivery time is typically 10 days.
What are the payment terms accepted for purchasing this product?
The accepted payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).
How is the product packaged for shipment?
The Household AC Contactor is packaged in a standard export carton box to ensure safe delivery.
