Specifications
Packaging Details :
Each unit be packed in one individual inner box
MOQ :
200
Rated Operational Voltage :
220VAC Or 380VAC
Rated Insulation Voltage :
690VAC
Insulation Voltage :
690VAC
Number of Auxiliary Contacts :
3
Payment Terms :
T/T,L/C
Number of Poles :
3
Rated Current :
20A, 32A, 40A, 50A, 60A, 80A, 125A
Installation Method :
Screw OR DIN RAIL
Auxiliary Contacts :
1NO + 1NC
Brand Name :
YOKG or OEM
Certification :
CE
Model Number :
SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95
Place of Origin :
Zhejiang, China
Delivery Time :
10 DAYS
Description

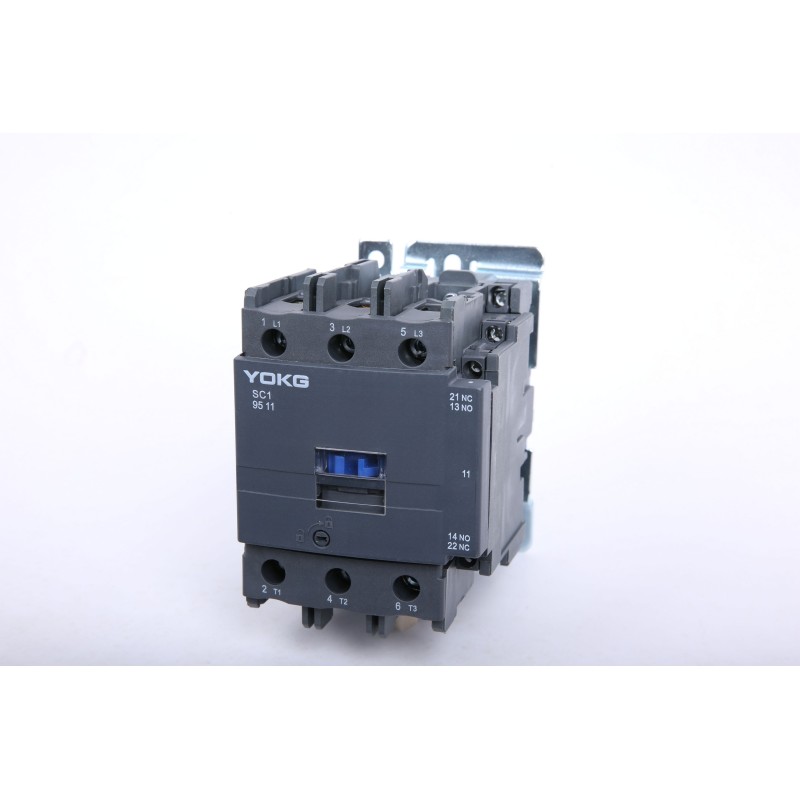

SC1 Series 3 Pole AC Contactor
Product Overview

125A DIN rail installation 3 pole AC contactor with rated operational voltage of 220VAC, designed for reliable electrical control applications.

Key Features
  • Product Name: 3 Pole AC Contactor
  • Available Current Ratings: 20A, 32A, 40A, 50A, 60A, 80A, 125A
  • Model Series: SC1
  • Installation Method: Screw or DIN Rail
  • Rated Insulation Voltage: 690VAC
  • Auxiliary Contacts: 1NO + 1NC
  • Number of Auxiliary Contacts: 3
Technical Specifications
Basic Parameters
Installation Method Rail or Screw
Auxiliary Contact 3P+NC+NO (1NO+1NC)
Insulation Voltage 690VAC
Protection Level IP20
Power Frequency 50/60Hz
Number of Poles 3
Rated Current 20A, 32A, 40A, 50A, 60A, 80A, 125A
Rated Operational Voltage 220VAC
Technical Performance Parameters
Type SC1-40 SC1-50 SC1-65 SC1-80 SC1-95
Rated heating current (A) 50 60 80 110 110
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Short-time withstand current(A) 10S 320 400 520 640 760
AC-3 Rated working current(A) 220V/230V 40 50 65 80 95
AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW 380V/400V 18.5 22 30 37 45
Mechanical life (10000/times) 800 800 800 600 600
Equipped fuse type RT16-63 RT16-80 RT16-80 RT16-100 RT16-125
Product Dimensions & Installation
125A Din Rail Installation 3 Pole AC Contactor Rated Operational Voltage 220VAC
Installation Dimensions
Type A max B max C max a b ∅
SC1-40～65 75 127 119 40 100/110 6.5
SC1-80～95 85 127 130 40 100/110 6.5
125A Din Rail Installation 3 Pole AC Contactor Rated Operational Voltage 220VAC 125A Din Rail Installation 3 Pole AC Contactor Rated Operational Voltage 220VAC
Frequently Asked Questions
What brand names are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand names YOKG and OEM.
What are the model numbers available for this product?
The product comes in various model numbers including SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95.
Where is the 3 Pole AC Contactor manufactured?
The 3 Pole AC Contactor is manufactured in Zhejiang, China.
What is the minimum order quantity for this product?
The minimum order quantity for the 3 Pole AC Contactor is 200 units.
What is the typical delivery time once an order is placed?
The typical delivery time for the 3 Pole AC Contactor is 10 days after order confirmation.
What payment terms are accepted for purchasing this product?
Payment terms accepted include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
