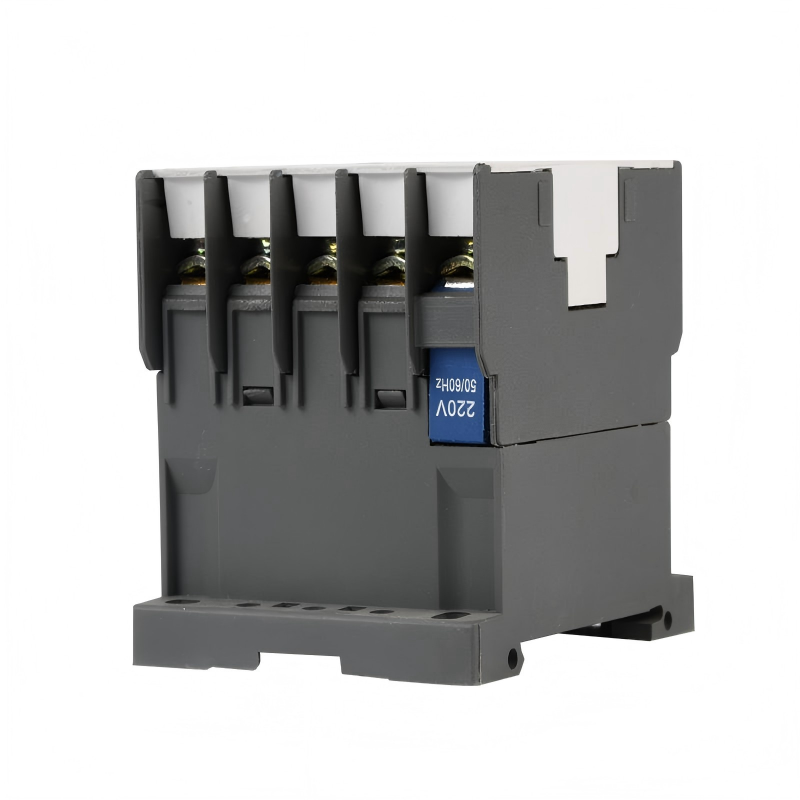

AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
Specifications
Packaging Details :
Each unit be packed in one individual inner box
Installation category :
III
MOQ :
100
Coil Voltage :
AC 24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440
Current Rating :
6A,9A,12A,16A
Pollution degree :
Class 3
Mounting Type :
DIN Rail
Model Number :
CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16
Contact Arrangement :
1NO/1NC
Brand Name :
YOKG
Ambient Temperature :
-5℃ To +40℃
Frequency Rating :
50/60Hz
Place of Origin :
China
Payment Terms :
T/T,L/C
Certification :
CE
Description
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
Product Overview

The CJX2-K series Contactor is a highly reliable and efficient device specifically designed to control and manage electrical power circuits in various industrial and commercial applications.

Key Features
  • Product Name: CJX2-K series Contactor
  • Suitable for use as an AC Contactor
  • Designed for 3 phase contactor applications
  • Pollution Degree: Class 3, ensuring reliable operation in harsh environments
  • Contact Material: Available in Silver or Copper for enhanced conductivity and durability
  • Coil Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
  • Mounting Type: Easy installation on DIN Rail systems
  • Ideal choice for 3 phase contactor systems in industrial and commercial settings
Technical Specifications
Type CJX2-K06 CJX2-K09 CJX2-K12 CJX2-K16
Rated Power kW/HP(AC-3) IEC60947-4-1
200-240V 1.5/2 2.2/3 3/4 4/5.5
380-440V 2.2/3 4/5.5 5.5/7.5 7.5/10
500-550V 3/4 4/5.5 4/5.5 5.5/7.5
660-690V 3/4 4/5.5 4/5.5 4/5.5
Rated Current A(AC-3) IEC60947-4-1
200-240V 7 9 12 16
380-440V 6 9 12 16
500-550V 5 6 7 9
660-690V 4 5 5 5
Conventional Thermal Current Ith:(A) 20 20 20 20
Rated Insulated Voltage Ui:(V) 690
Auxiliary Contact AC-15
Contact Arrangement Standard: 1NO/1NC Special: —
Rated Current A (AC-15) 380-440V 0.95
Conventional Thermal Current Ith:(A) 16
AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor
Frequently Asked Questions
What are the available models of the Contactor?

The available models of the Contactor are CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.

Where is the Contactor manufactured?

The Contactor is manufactured in China.

What is the minimum order quantity for the Contactor?

The minimum order quantity for the Contactor is 100 units.

What payment terms for purchasing the Contactor?

Accepts T/T (Telegraphic Transfer) and L/C (Letter of Credit).

What applications are suitable for the CJX2-K series Contactors?

The CJX2-K series Contactors are suitable for controlling electric motors, lighting, heating, and other electrical loads in industrial and commercial applications.
