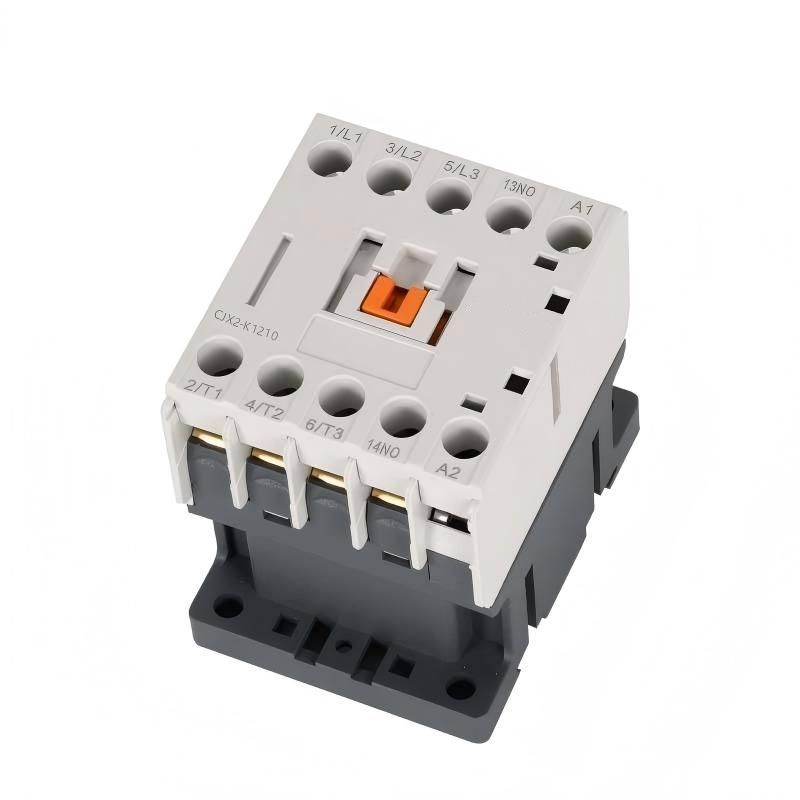

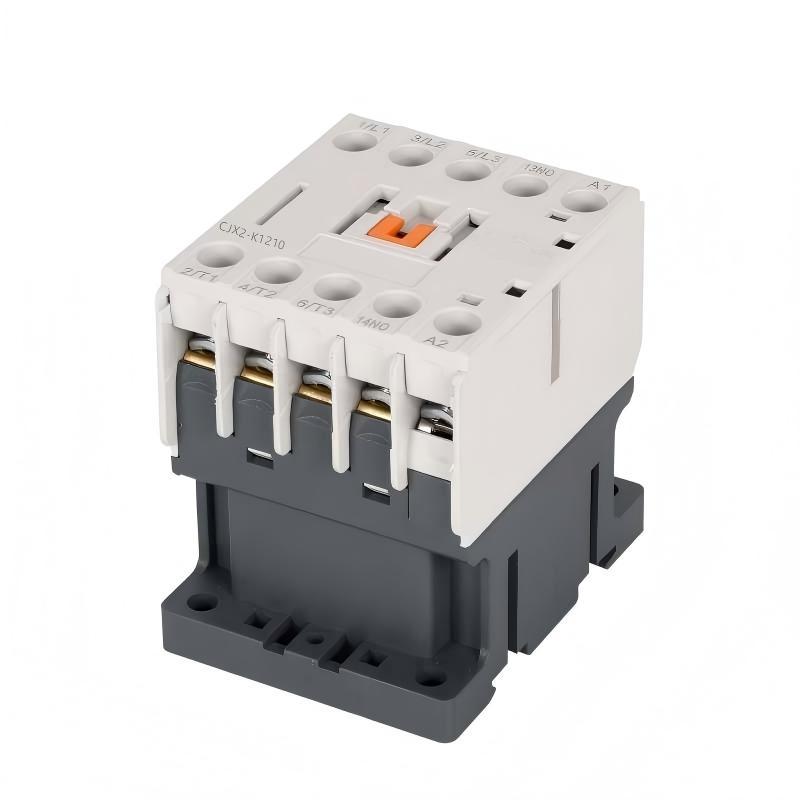

K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
Specifications
Packaging Details :
Standard Export Carton Box
Rated Current :
6A,9A,12A,16A
Power Frequency :
50/60Hz
Place of Origin :
Zhejiang, China
Rated Voltage :
24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440V
Number of Auxiliary Contacts :
3
Rated Insulation Voltage :
690VAC
Auxiliary contact :
1NO OR 1NC
Brand Name :
YOKG or OEM
Model Number :
CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16
MOQ :
200
Certification :
CE
Rated Operational Voltage :
220VAC
Delivery Time :
10 DAYS
Payment Terms :
T/T,L/C
Installation Method :
Screw OR DIN RAIL
Description
K Series 12A 3 Poles 5.5KW AC Mini Contactor
Product Overview
The 3 Pole AC Contactor is a highly reliable and efficient electrical switching device designed for controlling three-phase AC power circuits in industrial and commercial applications. Engineered for superior performance, this contactor provides dependable switching operations for motor control, lighting systems, heating equipment, and various electrical loads.
Key Features
  • Product Name: 3 Pole AC Contactor
  • Rated Insulation Voltage: 690VAC
  • Installation Method: DIN Rail or Screw Mounting
  • Rated Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
  • Rated Current Options: 6A, 9A, 12A, 16A
  • Protection Level: IP20
  • Standard Auxiliary Contact: 1NO/1NC
Technical Specifications
Type CJX2-K06 CJX2-K09 CJX2-K12 CJX2-K16
Rated Power kW/HP (AC-3) IEC60947-4-1
200-240V 1.5/2 2.2/3 3/4 4/5.5
380-440V 2.2/3 4/5.5 5.5/7.5 7.5/10
500-550V 3/4 4/5.5 4/5.5 5.5/7.5
660-690V 3/4 4/5.5 4/5.5 4/5.5
Rated Current A (AC-3) IEC60947-4-1
200-240V 7 9 12 16
380-440V 6 9 12 16
500-550V 5 6 7 9
660-690V 4 5 5 5
Conventional Thermal Current Ith (A) 20 20 20 20
Rated Insulated Voltage Ui (V) 690
Applications
The 3 Pole AC Contactor (models CJX2-K06, CJX2-K09, CJX2-K12, CJX2-K16) is designed for precise control of three-phase power in various industrial and commercial settings. Compliant with IEC60947-4 standards, these contactors are widely used in automation systems, motor control centers, and electrical distribution boards where quick switching and high endurance are essential.
Product Images
K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor K Series 12A 3 Poles 5.5KW AC Mini Contactor 1NO/1NC Aux Motor Control Contactor
Frequently Asked Questions
What brand and models are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand name YOKG or as OEM. The model numbers include CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.
Where is the 3 Pole AC Contactor manufactured?
The product is manufactured in Zhejiang, China.
What is the minimum order quantity for this product?
The minimum order quantity for the 3 Pole AC Contactor is 200 units.
How long does it take to deliver the 3 Pole AC Contactor after placing an order?
The delivery time for the 3 Pole AC Contactor is approximately 10 days.
What payment terms are accepted for purchasing the 3 Pole AC Contactor?
The accepted payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).
