36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
Specifications
Packaging Details :
Standard Export Package
Rated Voltage :
24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440V
Installation Method :
Screw OR DIN RAIL
Place of Origin :
Zhejiang, China
Delivery Time :
10 DAYS
Insulation Voltage :
690VAC
Rated Current :
6A,9A,12A,16A
Payment Terms :
T/T,L/C
Rated Operational Voltage :
220VAC
Brand Name :
YOKG or OEM
MOQ :
200
Protection Level :
IP20
Model Number :
CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16
Certification :
CE
Rated Insulation Voltage :
690VAC
Auxiliary contact :
1NO OR 1NC
Description
36V IP20 3 Phase AC Mini Magnetic Contactor
16A Rated Current, 7.5kW AC-3 Duty
Product Overview
This 3 Pole AC Contactor is a versatile and reliable electrical component designed to control and manage electrical power flow in various industrial and commercial applications. It offers flexible installation with support for both DIN Rail and screw mounting methods.
Key Features
  • Product Name: 3 Pole AC Contactor
  • Installation Method: Rail or Screw (DIN Rail or Screw Fixing)
  • Power Frequency: 50/60Hz
  • Rated Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
  • Insulation Voltage: 690VAC
  • Compliant with IEC60947-4 standards for performance and safety
  • Designed for reliable operation according to IEC60947-4 requirements
Technical Parameters
Type CJX2-K06 CJX2-K09 CJX2-K12 CJX2-K16
Rated Power kW/HP (AC-3) IEC60947-4-1
200-240V 1.5/2 2.2/3 3/4 4/5.5
380-440V 2.2/3 4/5.5 5.5/7.5 7.5/10
500-550V 3/4 4/5.5 4/5.5 5.5/7.5
660-690V 3/4 4/5.5 4/5.5 4/5.5
Rated Current A (AC-3) IEC60947-4-1
200-240V 7 9 12 16
380-440V 6 9 12 16
500-550V 5 6 7 9
660-690V 4 5 5 5
Conventional Thermal Current Ith: (A) 20 20 20 20
Rated Insulated Voltage Ui: (V) 690
Auxiliary Contact AC-15
Contact Arrangement Standard 1NO/1NC
Rated Current A (AC-15) 380-440V 0.95
Conventional Thermal Current Ith: (A) 16
Applications
This 3 Pole AC Contactor is essential for reliable switching in various industrial and commercial applications. Available in models CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16, it is widely used for frequent switching of motors or heavy electrical loads in manufacturing plants, HVAC systems, water treatment facilities, agricultural machinery, commercial buildings, and infrastructure projects where controlling 3-phase power supply is critical for safety and efficiency.
Product Images

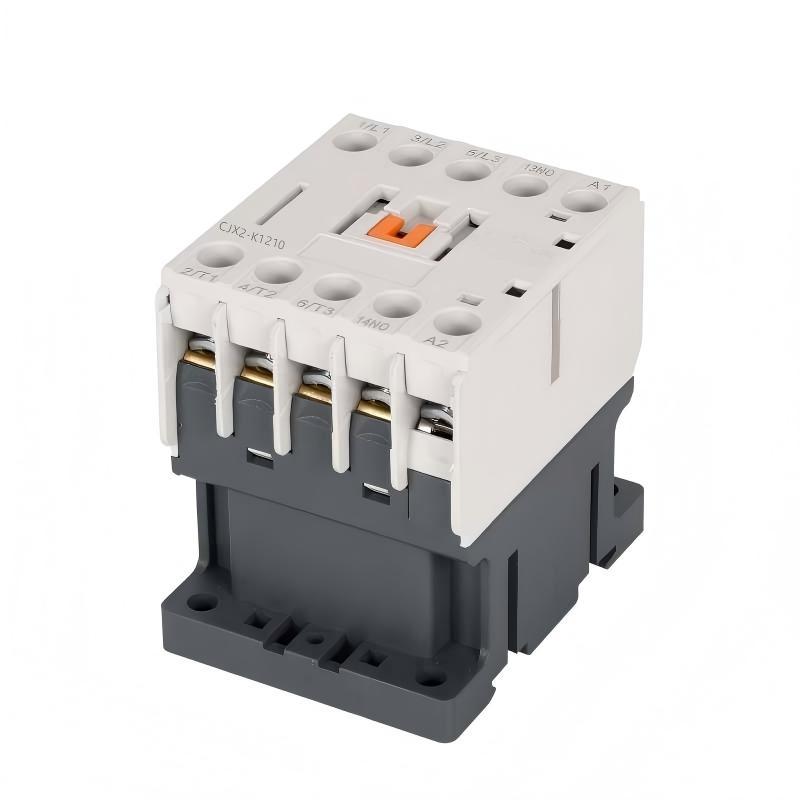

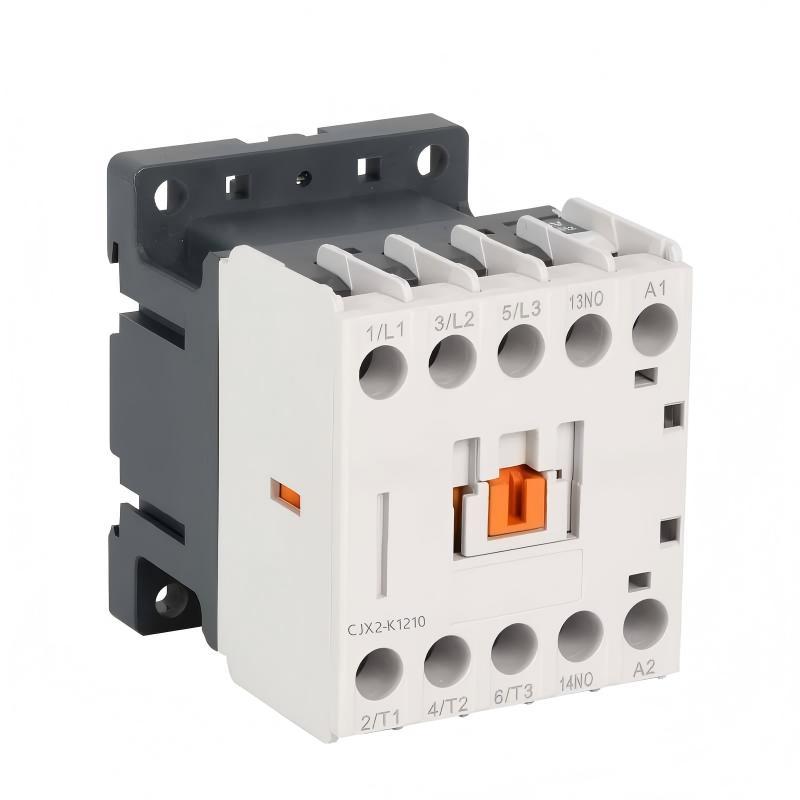

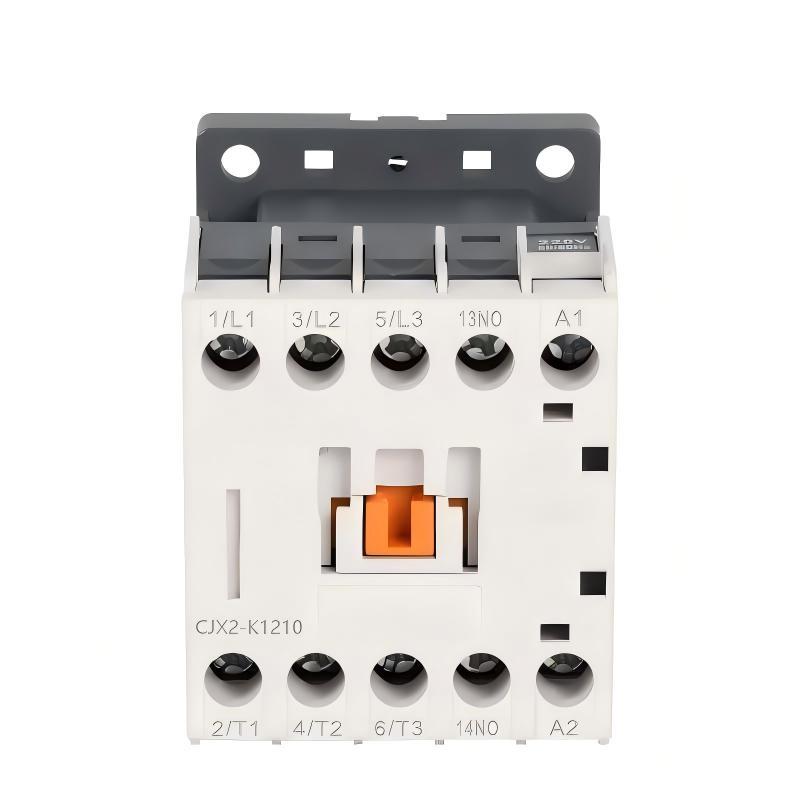

36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty 36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty 36V IP20 3 Phase AC Mini Magnetic Contactor 16A Rated Current 7.5kW AC-3 Duty
Frequently Asked Questions
What brand names are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand names YOKG or OEM.
What are the model numbers for this product?
The model numbers include CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.
Where is the 3 Pole AC Contactor manufactured?
This product is manufactured in Zhejiang, China.
What is the minimum order quantity for the 3 Pole AC Contactor?
The minimum order quantity is 200 units.
How long does it take to deliver the 3 Pole AC Contactor after placing an order?
The delivery time is approximately 10 days.
What payment terms are accepted for purchasing the 3 Pole AC Contactor?
Payment can be made via T/T (Telegraphic Transfer) or L/C (Letter of Credit).
