Specifications
Payment Terms :
T/T,L/C
Insulation Voltage :
690VAC
Rated Current :
6A,9A,12A,16A
Power Frequency :
50/60Hz
Place of Origin :
Zhejiang, China
Delivery Time :
10 DAYS
Rated Operational Voltage :
220VAC
Certification :
CE
Brand Name :
YOKG or OEM
Packaging Details :
Standrad Export Package
Rated Insulation Voltage :
690VAC
Auxiliary contact :
1NO OR 1NC
Model Number :
CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16
Protection Level :
IP20
MOQ :
200
Rated Voltage :
24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440V
Description

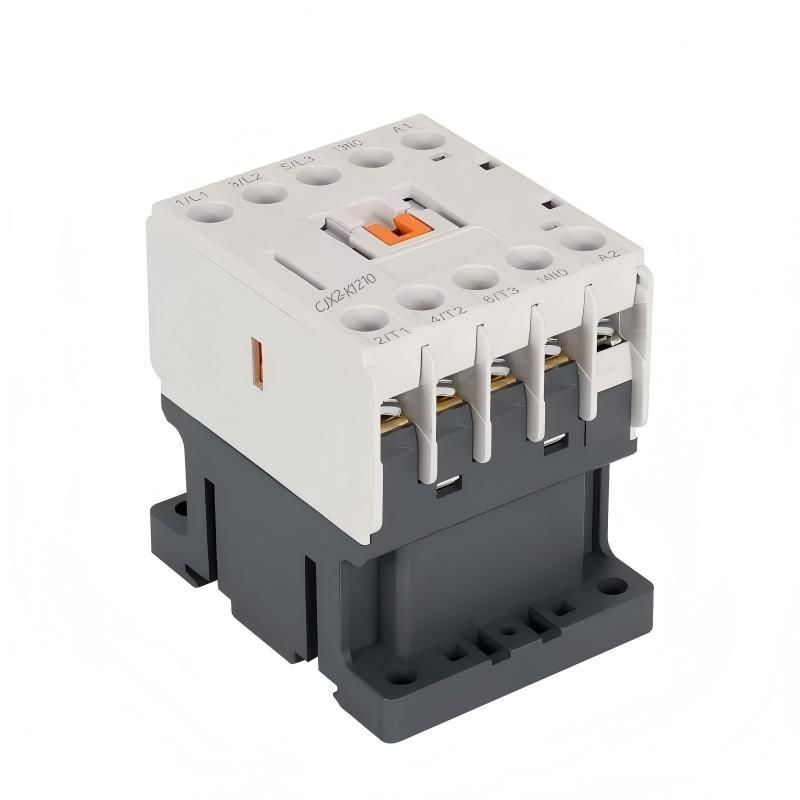

3 Pole AC Magnetic Contactor
The 3 Pole AC Contactor is a robust and reliable electrical component designed to efficiently manage and control high-power circuits in industrial applications.

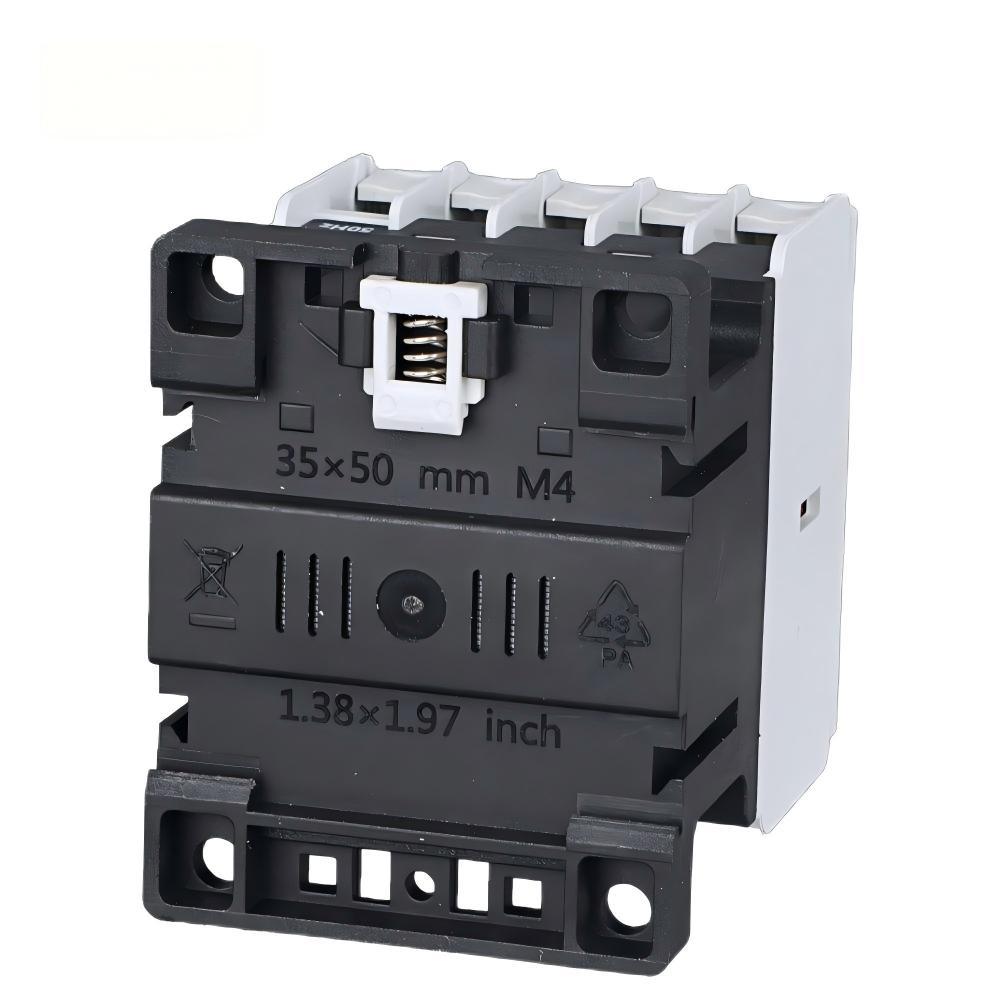

Flexible Installation Options
This contactor supports both screw mounting and DIN rail installation, enabling versatile integration into various electrical panels and systems—from compact control cabinets to large-scale industrial switchgear.
Product Features
  • Product Name: 3 Pole AC Contactor
  • Insulation Voltage: 690VAC
  • Rated Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
  • Number of Poles: 3
  • Rated Current: 6A, 9A, 12A, 16A
  • Rated Operational Voltage: 220VAC
  • Type: AC magnetic Mini contactor
  • Contact Configuration: 1NO or 1NC
  • Mounting Options: DIN Rail or Screw
Technical Parameters
Type CJX2-K06 CJX2-K09 CJX2-K12 CJX2-K16
Rated Power kW/HP(AC-3) IEC60947-4-1
200-240V 1.5/2 2.2/3 3/4 4/5.5
380-440V 2.2/3 4/5.5 5.5/7.5 7.5/10
500-550V 3/4 4/5.5 4/5.5 5.5/7.5
660-690V 3/4 4/5.5 4/5.5 4/5.5
Rated Current A(AC-3) IEC60947-4-1
200-240V 7 9 12 16
380-440V 6 9 12 16
500-550V 5 6 7 9
660-690V 4 5 5 5
Conventional Thermal Current Ith:(A) 20 20 20 20
Rated Insulated Voltage Ui:(V) 690
Auxiliary Contact Specifications
AC-15 | Contact Arrangement: Standard 1NO/1NC | Rated Current A (AC-15) 380-440V: 0.95 | Conventional Thermal Current Ith:(A): 16
Industrial Applications
The 3 Pole AC Contactor series (models CJX2-K06, CJX2-K09, CJX2-K12, CJX2-K16) is designed for various industrial and commercial electrical applications including motor control centers, HVAC systems, lighting control, and power distribution panels where efficient switching of electrical loads is critical.
These contactors offer optimal functionality and adaptability for industrial automation, motor control, and power management applications, with flexible installation options and auxiliary contact configurations to meet diverse electrical system requirements.
AC 24V/48V/110V/230V Magnetic Contactor 220V 3 Phase 50/60Hz For Industrial Application AC 24V/48V/110V/230V Magnetic Contactor 220V 3 Phase 50/60Hz For Industrial Application AC 24V/48V/110V/230V Magnetic Contactor 220V 3 Phase 50/60Hz For Industrial Application
Frequently Asked Questions
What brand and model numbers are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand name YOKG or OEM. The model numbers include CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.
Where is the 3 Pole AC Contactor manufactured?
The 3 Pole AC Contactor is manufactured in Zhejiang, China.
What is the minimum order quantity for this product?
The minimum order quantity for the 3 Pole AC Contactor is 200 units.
How long does it take to deliver the 3 Pole AC Contactor after placing an order?
The delivery time for the 3 Pole AC Contactor is approximately 10 days after order confirmation.
What payment terms are accepted for purchasing the 3 Pole AC Contactor?
The accepted payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).
