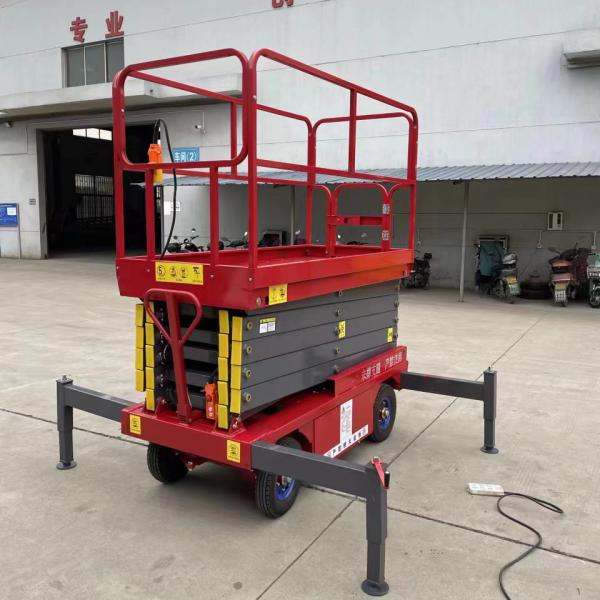

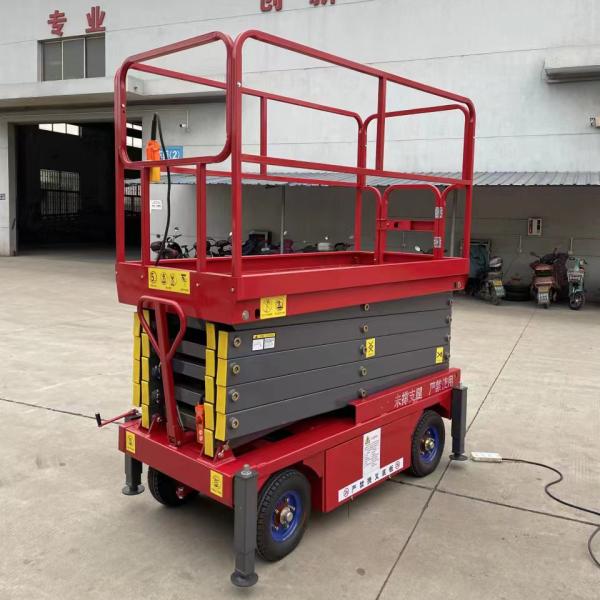

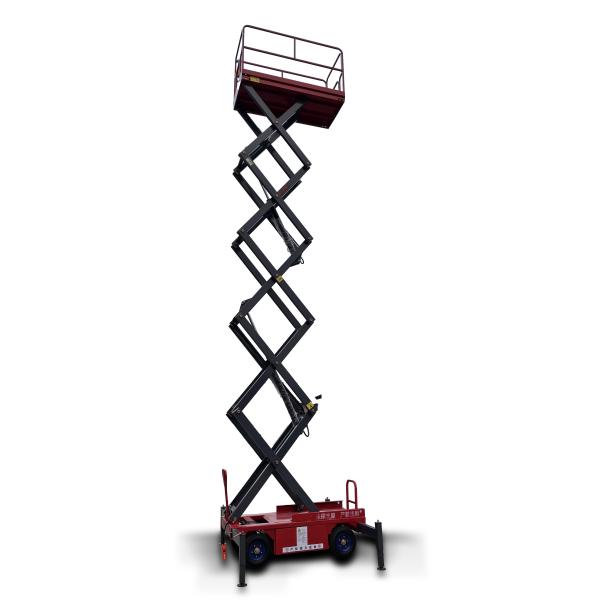

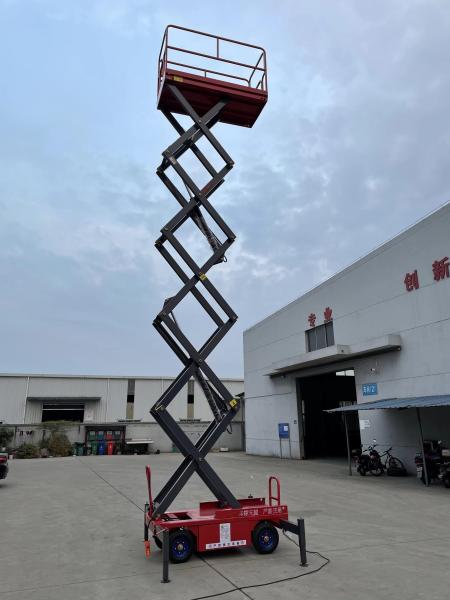

High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform
Specifications
Brand Name :
custom
Model Number :
CDD1530
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄2000-＄3000 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Product Name :
Electric Forklift
Load Center :
500mm
Load capacity :
1000-1500kg
Load height :
3000mm
Feature :
High Efficiency
Battery Cpacity :
24V/80Ah
Description

High-Capacity 320kg Double Scissor Lift With 12m Reach - Reliable And Safe Hydraulic Electric Aerial Platform

This lift is renowned for its reliability and safety, boasting a 320kg load capacity and a 12-meter lifting height, making it an ideal hydraulic electric aerial work platform. Its design particularly emphasizes user safety and operational convenience, suitable for various industrial and commercial high-altitude tasks, including repairs, installations, cleaning, and maintenance.

The lift features a double scissor structure, providing exceptional stability and a more spacious working area. With a maximum load capacity of 320kg, it can accommodate multiple workers and their tools, ensuring an efficient workflow. The 12-meter lifting height allows operators to easily reach high places and complete various complex tasks.

The hydraulic system is the core of this lift, utilizing high-quality hydraulic cylinders and pumps to ensure smooth and reliable lifting movements. The electric drive system simplifies operation, with the platform's elevation controlled by simply pressing a button, significantly enhancing work efficiency.

In terms of safety, this lift is equipped with various safety devices, including an anti-fall system, an emergency stop button, and an overload protection device. The anti-fall system automatically locks the platform in place if it tilts or is overloaded, preventing accidental falls. The emergency stop button allows for immediate halting of the lift in emergencies, ensuring personnel safety. The overload protection device prevents equipment damage due to overloading.

High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial PlatformHigh Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform

High Capacity 320kg Double Scissor Lift With 12m Reach Reliable And Safe Hydraulic Electric Aerial Platform

Model
MX580S
MX600SN
MX800SN
MX800S
MX1000S
MX1200S
S.W.L
230kg
230kg
230kg
450kg
320kg
320kg
S.W.L on Extension
113kg
113kg
113kg
113kg
113kg
113kg
Max.Workers Number
2
2
2
2
2
2
Working height max
7.8m
8m
10m
10m
12m
13.8m
Platform height max
5.8m
6m
8m
8m
10m
11.8m
Overall Length
1.81m
2.43m
2.43m
2.43m
2.43m
2.43m
Overall Width
0.76m
0.81m
0.81m
1.15m
1.15m
1.15m
Overall Height( Rails Up)
2.16m
2.18m
2.3m
2.31m
2.42m
2.55m
Overall Height( Rails Down)
1.82m
1.85m
1.87m
1.76m
1.91m
2.03m
Platform size(LxW)
1.67m*0.74m
2.27m*0.81m
2.27m*0.81m
2.27m*1.12m
2.27m*1.12m
2.27m*1.12m
Platform extension size
0.90m
0.90m
0.90m
0.90m
0.90m
0.90m
Ground Clearance ( Stowed)
0.09m
0.10m
0.10m
0.10m
0.10m
0.10m
Ground Clearance(Raised)
0.019m
0.019m
0.019m
0.019m
0.019m
0.019m
Wheelbase
1.36m
1.87m
1.87m
1.87m
1.87m
1.87m
Turning radius (inside)
0m
0m
0m
0m
0m
0m
Turning radius (outside)
1.64m
2.10m
2.10m
2.10m
2.10m
2.10m
Lift/Drive Motor
24V/3.3kw
24V/3.3kw
24V/3.3kw
24V/3.3kw
24V/3.3kw
24V/4.5kw
Travel Speed( Stowed)
3.0km/h
3.0km/h
3.0km/h
3.0km/h
3.0km/h
3.0km/h
Travel Speed( Raised)
1km/h
1km/h
1km/h
1km/h
1km/h
1km/h
Raise/Lower time
18/22sec
35/25sec
40/30sec
40/30sec
60/40sec
70/45sec
Power source
4*6V/210Ah
4*6V/225Ah
4*6V/225Ah
4*6V/225Ah
4*6V/240Ah
4*6V/260Ah
Charger
24V/30A
24V/30A
24V/30A
24V/30A
24V/30A
24V/30A
Gradeability
25%
25%
25%
25%
25%
25%
