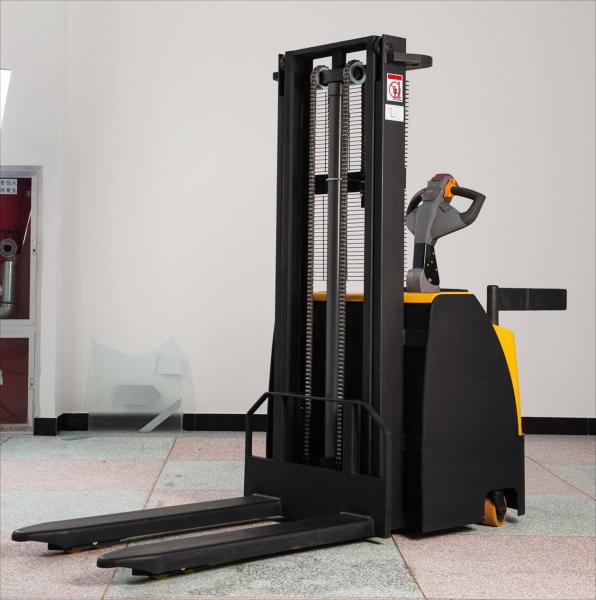

3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate
Specifications
Brand Name :
KAD
Model Number :
CDD1530
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄3500-＄3800/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Product Name :
Electric Forklift
Load Center :
500mm
Load capacity :
1000-1500kg
Load height :
3000mm
Feature :
High Efficiency
Battery Cpacity :
24V/210Ah
Description
Product Description

3t 3000kg 4.5m 4500mm Heavy duty Standing on full electric stacker with CE certificate

Heavy duty standing on full electric stackers offer a range of advantages that make them an ideal choice for demanding material handling tasks. These stackers are fully electric, eliminating the need for fuel, reducing emissions and making them environmentally friendly. They boast a heavy-duty design, capable of handling heavy loads with ease and stability, ensuring safe and efficient operation.

3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate

3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate

3t 3000kg 4.5m 4500mm Heavy Duty Standing On Full Electric Stacker With CE Certificate

Main Features

1. Medium intensity material handling, stacking and loading/unloading.

2. Designed for narrow aisles .

3. Only suitable for single-sided pallet use.

4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.

5. Folding pedals provide a comfortable working environment for operation.

6. Large-capacity battery ensures long time use.

Specification
MODEL
CDD12 CDD16 CDD20
Features
Drive system
Battery
Driving mode
Standing
Load Capacity
Q
KG
1200/1600/2000
Load Center
C
MM
500
Weight
Weight(With battery)
KG
830/880/910/940/970
Wheels
Material
PU
Size
Lifting Height
H3
MM
1600/2000/2500/3000/3500/4000/5000
Lowest Mast
H1
MM
2080/1580/1830/2080/2330/1820/2020
Max.Height
when operating
H4
MM
2080/2730/3230/3730/4230/4460/4960
Min.Height of Fork
H13
MM
≤90
Length
L1
MM
2130
Width
B1
MM
850
Fork Length
L
MM
1070
Wheelbase
Y
MM
1430
Fork Outside Width
B5
MM
550/680
Fork Inside Width
MM
225/355
Min.Turning Radius
WA
MM
1738/2099
Performance
Driving Speed
(Empty/Full Load)
MM/S
6.5/5.0
Lifting Speed
(Empty/Full Load)
MM/S
80/50
Descending Speed
(Empty/Full Load)
MM/S
120
Max.Gradient
(Empty/Full Load)
°
6
Brake
Electromagnetic brake
Driving Motor
KW
DC/0.75/1.2/1.5
Lifting Motor
KW
DC/2
Battery
Capacity
V/Ah
24//210

Applications of Lightweight Electric Pallet Stacker

Lightweight Electric Pallet Stacker have a wide range of applications in the logistics and warehousing industry, mainly including the following aspects:
1. loading and unloading of goods: lightweight electric forklift trucks are suitable for loading and unloading of goods, can quickly and safely remove the goods from the shelves or place them on the shelves.
2. Cargo handling: lightweight electric forklift trucks can be used for cargo handling operations, and can quickly move goods inside the warehouse to improve work efficiency.
3. Warehouse management: lightweight electric forklift trucks can help warehouse managers to quickly and efficiently organize the goods in the warehouse, yardage and inventory work.
4. material transportation on production line: on the production line, the lightweight electric forklift truck can be used for material supply and transportation, which improves the production efficiency.
