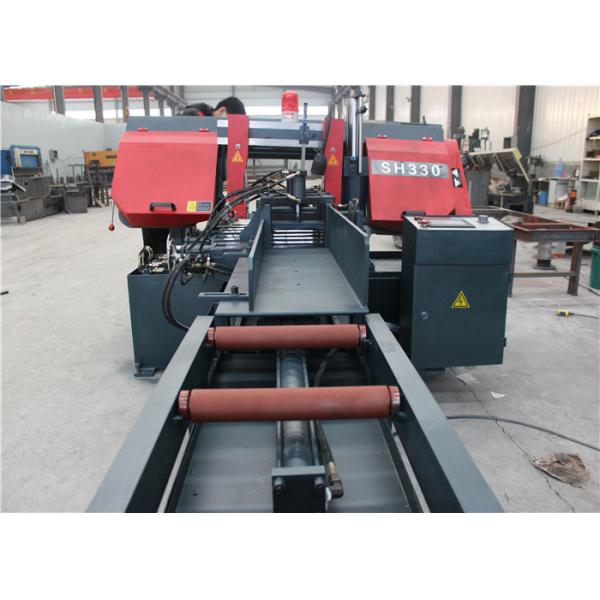

Cnc Double Column Rotary Horizontal Hydraulic Bandsaw Machine
Cnc Double Column Rotary Horizontal Hydraulic Bandsaw Machine
Cnc Double Column Rotary Horizontal Hydraulic Bandsaw Machine
Cnc Double Column Rotary Horizontal Hydraulic Bandsaw Machine
Cnc Double Column Rotary Horizontal Hydraulic Bandsaw Machine
Cnc Double Column Rotary Horizontal Hydraulic Bandsaw Machine
Specifications
Brand Name :
HEIYAN
Model Number :
SH330
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50SETS PER MONTH
Delivery Time :
7-15DAYS
Packaging Details :
Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
belt line speed(m/min) :
40/60/80
Main generator power(kw) :
3
Cooling generator power (kw) :
0.09
Working clamp style :
Hydraulic
Saw belt tighten style :
Hand
Loading style :
Extra roller
Name :
CNC Double Column Rotary Horizontal Band Saw Machine Made in China
Description

CNC Double Column Rotary Horizontal Band Saw Machine Made in China

Features:

1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-330mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed,
5. Stable performance, high efficiency, suitable for bulk material sawing.

1.

Type SH330
Cut capcity W*H (mm) round 300
square 300*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 80
Volume of water case (L) 60
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 700
Packing dimensions(mm) L*M*H 1750*2200*1450

The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
