Specifications
Brand Name :
Hei Yan
Model Number :
HYG
Certification :
ISO CE
Place of Origin :
China
MOQ :
Nogetation
Price :
Nogetation
Payment Terms :
T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :
3 Sets per month
Delivery Time :
30-60 working days
Packaging Details :
Wooden case or plastic film
Bending material :
Carbon steel Stainless stee and Alloy steel
Bending size :
4-48inch
Thickness :
3-120mm
Bending radius :
2-10D
Input voltage :
380V
Operating method :
Semi auto and fully auto
Description

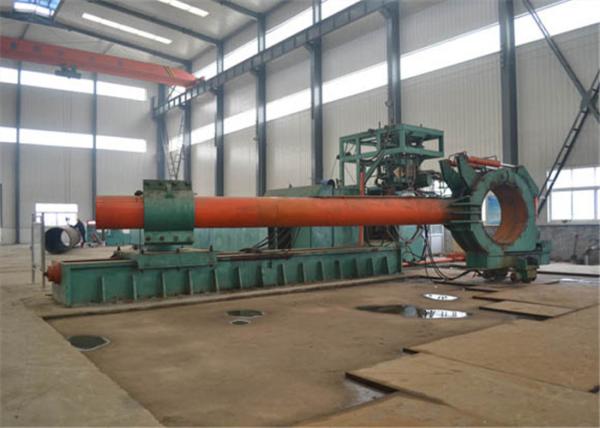

406 Inch Carbon Steel Construction Long Pipe Bends Big Diameters Bending Making Machine

Elbow size outer diameter Φ25mm(1″)~Φ1420mm(56″)
Wall thickness 5~120mm
Bent diameter ≤3
Bent degree 22.5°,45°,90°,135° etc.
Hydraulic cylinder 2/4sets

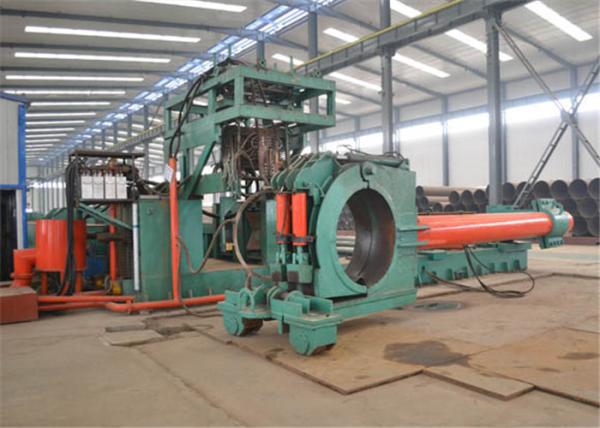

Machine composition

1. machine base/frame
2. Main cylinder and supporting plate
3. pushing plate
4. front supporting plate
5. loading table
6. induction coils and adjusting device
7. medium frequency power supply
8. electrical control system
9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine

Main features of 406 Inch Carbon Steel Construction Long Pipe Bends Big Diameters Bending Making Machine
1. It is constructed with srtong metal fram with good appearance and stable functioning

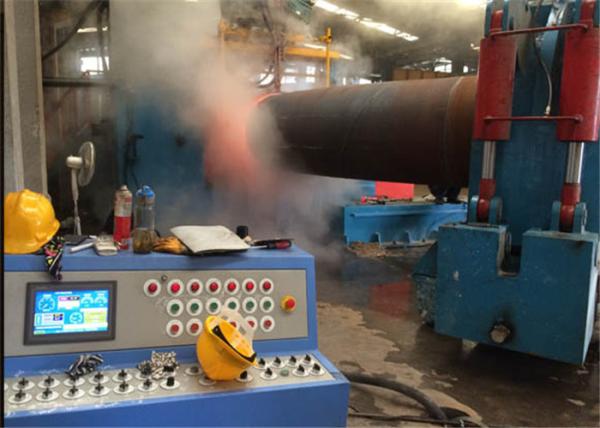

2. It has individual power construction and electrical system, adopts two kinds of heating methods, high frequency and intermediate frequency, the speed of pushing could be randomly adjusted, the speed of adding raw material pipes is fast and the machine is easy to operate.

Max size Model Heating power Cylinder capacity Thickness
6” HYG-159 200KW IDΦ140 ODΦ168 5-20
8” HYG-219 200KW IDΦ140 ODΦ168 5-20
12” HYG-325 250KW IDΦ180 ODΦ219 5-20
16” HYG-426 350KW IDΦ180 ODΦ219 5-20
20” HYG-530 400KW IDΦ180 ODΦ219 5-20
24” HYG-630 500KW IDΦ200 ODΦ245 5-20
28” HYG-720 600KW IDΦ200 ODΦ245 5-20
32” HYG-813 800KW IDΦ220 ODΦ273 5-20
36” HYG-914 800KW IDΦ250 ODΦ299 5-20
48” HYG-1220 1000KW IDΦ280 ODΦ325 5-20
56” HYG-1420 1000KW IDΦ280 ODΦ325 5-20
60” HYG-1520 1000KW IDΦ280 ODΦ325 5-20
64” HYG-1620 1000KW IDΦ320 ODΦ377 5-20

The HYG series 406 Inch Carbon Steel Construction Long Pipe Bends Big Diameters Bending Making Machine is designed for manufacturing the long radius(2.5D-6D) bended pipes with diameter from 1/2" to 28". These produced bended pipes are widely used in the connection of the industrial pipelines for the Petrochemical, Gas and Oil pipes, Electrical Power, Food, etc.

406 Inch Mandrel Bending Machine , Pipe Bending Press Carbon Steel Construction

Our PLC Automatic Induction Pipe Bending Machine has following advantages:
1. Main body is strength and durable.
2. Underframe welded with structural steel and steel plate, and machine milling. Pushing plate using T type groove structure, travel smoothly. Under the push board with grey iron plate, wear-resisting. Have wear compensation regulating variable.
3. Bending radius is adjusted by cycloidal motor drive screw rod adjustment, convenient adjustment, high precision.
4. Hydraulic system uses frequency control, working speed stepless variable speed, convenient adjustment, improve the production efficiency, saving energy save electricity. According to the feeding speed control motor speed, adjust the fuel delivery accordingly, on-demand oil supply, hydraulic oil without high pressure unloading, the oil temperature not too high.

406 Inch Mandrel Bending Machine , Pipe Bending Press Carbon Steel Construction
