Specifications
Brand Name :
CHENGUANG FSP
Model Number :
GX155-U
Certification :
ISO
Place of Origin :
China
Product Name :
High-strength molded Silicone Rubber
Density :
1.15g/cm3
Characteristics :
Translucent / Excellent electrical insulation properties
Elongation at Breakage :
700%
Tension Strength :
9.0Mpa
Tear Strength :
35.0kN/m
Description

Silicone Rubber for Molding(For Food Use)

DESCRIPTION

High Temperature Vulcanizable, Peroxide Initiation Curing

CHARACTERISTICS

  • Transparency
  • Excellent electrical insulation properties
  • Good physical and mechanical properties
  • High and low temperature resistance

APPLICATION

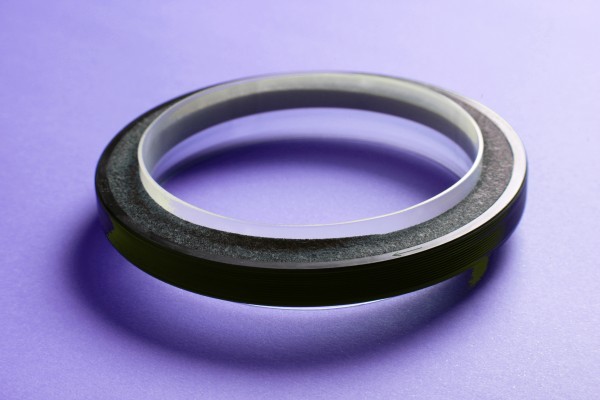

Molded products and die-casting products, such as cable accessories, gaskets, gaskets, 0 rings, diaphragms, rubber rollers, plates, etc.

TYPICAL PROPERTIES

Properties Test Method Unit Parameters
Density, 25℃
GB/T 1033-86
 g/cm3
1.15
Tensile Strength
GB/T 528-1992
MPa
9.0
Elongation at Break
GB/T 528-1992
%
700
Tension Set at Break
GB/T 528-1992
%
4.0
Tear Strength
GB/T 529-1991
kN/m
35.0
Hardness, Shore A
GB/T 531-1992
55±2
Volume Resistivity
GB/T 1410-1989
Ω.cm
1.0×1015
Dielectric Strength
GB/T 1408.1-1999
kV/mm
22.0
Dielectric Constant,1MHz
GB/T 1694-1981
3.5
Dissipation Factor,1MHz
GB/T 1694-1981
5.0×10-3
  • These figures are only intended as a guide and should not be used in preparing specifications.
HOW TO USE
Blend the peroxide curing agent—DBPH50 into rubber base with open mill, the mixed rubber can be used for mold after re-milling
homogeneous. Base on sample size to decide mold condition.
Base on customer request, curing agent and mix pigment can be added before ship.
PACKING, STORAGE & SHIPPING
GX151-Uhas a shelf life of 6 months at least from the date of production if stored at 25℃ or below. Storage time beyond the specified data does not mean that the product is no longer usable. In which case, the properties test for the intended use must be carried out after re-milling for quality assurance reasons. If the curing agent has been add when shipped, best using time is within 15 days.
The inner package of GX155-U is polyethylene plastic bags and outer package is carton, per case of 20Kg net weight.
There is no shipping limitation for GX155-U.
LIMITED WARRANTY INFORMATION
The data presented in this leaflet are in accordance with the present state of our knowledge, but do not absolve the user from carefully checking all supplies immediately on receipt. We reserve the right to alter product constants within the scope of technical progress or new developments.
The recommendations made in this leaflet should be checked by preliminary trials because of conditions during processing over which we have no control, especially where other companies’ raw materials are also being used. The recommendations do not absolve the user from the obligation of investigating the possibility of infringement of third parties’ right and, if necessary, clarifying the position, recommendations for
use do not constitute a warranty, either express or implied, of the fitness or suitability of the products for a particular purpose.
