Specifications
Brand Name :
CHENGUANG FSP
Model Number :
R-10301
Certification :
FDA / LFGB / SGS
Place of Origin :
China
Product Name :
Precision Mold Making Silicone Rubber
Pot life，25℃ :
1.5
Tensile Strength :
3.5Mpa
Elongation at Break :
300%
Hardness, Shore A :
30-40
Payment Term :
L/C, Other
Description

Precision Mold Making Silicone Rubber
Uncured or Cured Tensile Strength 3.5Mpa Precision Mold Making Elastomer Silicone


Description

Room Temperature Curable, Addition-curing Two-component Silicone Rubber.


Characteristics:

  • Good fluidity
  • Low shrinkage
  • Good dimensional stability

Application:

  • Resin Matrix Composite mold take shape.

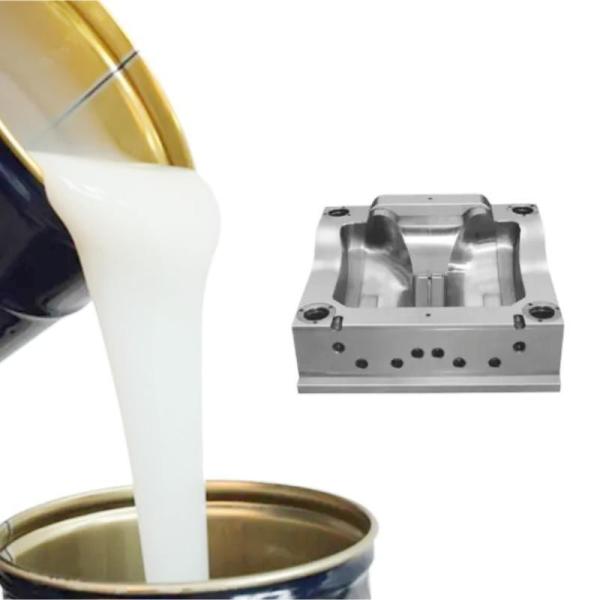

  • Production of precision mold, such as oil drill, supercharger impeller.

Typical Properties

Properties Test Method Unit R-10301
Uncured Appearance Visual A White/ Translucent
B
Red
Viscosity, after stirred at 23°C GB/T 2794-1995 mPa.s
5×104
Mixing ratio A:B 10:1
Pot life, 25°C h 1.5
Cured Tensile strength GB/T 528-2009 MPa 3.5
Elongation at break GB/T 528-2009 %
300
Tear strength GB/T 529-2008 kN/m 10
Hardness, Shore A GB/T 531-1999 30-40
Linear shrinkage % 0.1
Coefficient of thermal expansion 1/℃ 2.8×10-4

These figures are only intended as a guide and should not be used in preparing specifications.

How to use

1. The rubber base and curing agent should be taken in accordance with their weight ratio. The amount of curing agent used will determine the pot life and the final performance of the vulcanizate.

2. Thoroughly mix the two components, ensuring that the bottom and walls of the container are scraped to incorporate all material.

3. Both the mixture and its container should be placed in a vacuum degassing tank to remove any air bubbles from the curing rubber. The mixture surface location will rise to 3~4 times higher than original and automatically break bubbles to collapse. Maintain the vacuum status for an

additional 4~6 minutes before releasing.

4. Pour the mixed rubber manually or mechanically, and consider performing a vacuum degassing after pouring.

5. The curing time is 24 hours at 25℃. Before use, additional vulcanization of 1 hour at 100℃ and 1 hour at 200℃ is necessary.

Packing, Storage & Shipping

The rubber base is provided in a plastic drum with a net weight of 20kg, while the curing agent is supplied in a separate plastic bottle or drum.

To preserve the quality of the product, it must be stored in a cool and dry location and kept away from substances such as acid, alkali, and metal organic salt. If stored in the original container with a seal, the rubber base and curing agent should have a minimum shelf life of six months.

There are no restrictions on shipping this product.

Attention

In order to avoid the inactivation of the curing agent due to prolonged exposure to air, it should be tightly sealed with a cap after each use. The presence of a substantial amount of sediment indicates that the curing agent is no longer functional. It is recommended to divide the curing agent into vials for regular usage.

The curing agent comprises tetraethoxy-silane and is flammable (with a flash point of 40.6℃) and can cause skin and eye irritation. It is crucial to take adequate protective measures to handle this substance safely.

Limited Warranty Information

The information provided in this brochure is based on our current knowledge, but does not relieve the user of the responsibility to inspect all supplies upon receipt thoroughly. We reserve the right to modify product specifications based on technological advancements or new developments.

Due to uncontrollable processing conditions, particularly when incorporating raw materials from other companies, it is recommended to conduct preliminary trials to verify the suggestions provided in this brochure. These suggestions do not exempt the user from investigating the possibility of infringing on third-party rights and, if necessary, clarifying their position. The recommendations for product use do not imply any warranty, whether expressed or implied, regarding the fitness or suitability of the product for a specific purpose.
