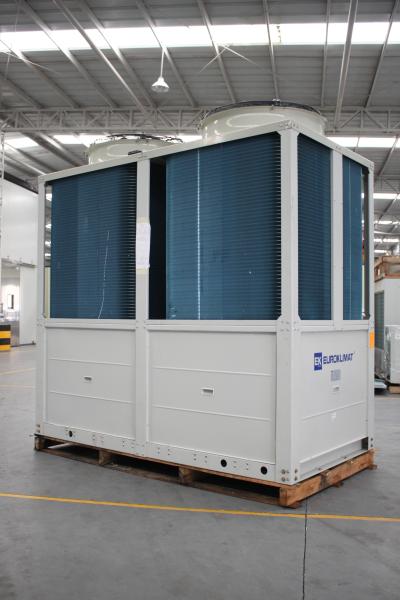

Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Tropical Area 90KW Air Cooled Scroll Chiller With Copeland Compressor
Specifications
Brand Name :
EuroKlimat
Model Number :
EKAC300B1HC
Certification :
ISO9001, ISO14001, OHSAS18001, CRAA, CQC
Place of Origin :
China
MOQ :
1
Price :
USD 200 per ton
Payment Terms :
L/C, T/T
Supply Ability :
3,000 pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Plywood
Max working temperature :
56 C
Type :
air cooled
Weight :
910 KG
Dimension(l*w*h) :
2015mm*1150mm*2260mm
Refrigerant :
R410a
Cooling capacity :
90kw
Compressor type :
scroll
Compressor :
Copeland
Evaporator type :
Brazed plate heat exchanger
Description

Tropical area air cooled scroll chiller max working ambient temperature 56 C

Features

1. 4 nos Copeland scroll compressors
2. Plate heat exchanger
3. Modular design , max 16 units work together
4. Tropical area application , max working ambient temperature 56 C


Specifications:

Model EKAC300B1HC
Nominal cooling capacity kW 90.0
Nominal power consumption kW 40.0
Norminal current A 73.6
Max starting current A 172
EER 　 2.25
Power supply 　 415V/3N~/50Hz
Refrigerant Type 　 R410A
Control 　 Electronic expansion valve
Max operation ambient temeprature ℃ 56
Compressor Brand 　 Copeland scroll
QTY 　 4
lubricant 　 POE
Condenser fan Type 　 Axial
QTY 　 2
Fan motor power input KW 2.3*2
Air flow m³/h 25000*2
Plate heat exchanger Type 　 Brazed plate heat exchanger
Water flow m³/h 13.9
WPD kPa 40
CHW inlet/outlet 　 DN65
Control cabinet cooling way 　 Air cooled
Standard accessories 　 Y type water filter,Victaulic coupling
Neight weight kg 910
Operation weight kg 925
Dimension Length mm 2215
Width mm 1150
Height mm 2260
Remark :
1.Nominal cooling capacity is based on :outside ambient temp.45℃,leaving water temp.7℃,water flow 0.1548m3/(h·kW)
2.WPD include unit and the attaced Y type water filter
3.Please select the water pump accordingly as the unit perfermance is variable with the ambient temperature .
