Specifications
Brand Name :
BOE
Model Number :
TV156FHM-NM0
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1920*1080 ixels
style :
FHD 51P
brightness :
450 CCD M2
color :
16.7M
contrast ratio :
1000 :1
working life :
20K Hours
Description
BOE TV156FHM-NM0 16 Inch Laptop LCD Display
BOE TV156FHM-NM0 is a high-performance 15.6-inch TFT-LCD display panel featuring Full HD 1920*1080 resolution, designed specifically for laptop applications. This PC LCD module delivers exceptional visual clarity with 141 PPI pixel density and advanced display technologies.
Key Features
  • 15.6-inch diagonal a-Si TFT-LCD display
  • Full HD 1920*1080 resolution (141 PPI)
  • 450 cd/m² typical luminance
  • 1000:1 contrast ratio
  • 85/85/85/85 viewing angle (CR≥10)
  • AMD FreeSync technology
  • eDP 1.2 interface with 51-pin connector
  • 16.2M color depth with 45% NTSC
  • WLED backlight with 20,000-hour lifespan
  • Refresh rate options: 60Hz, 120Hz, and 240Hz with MEMC
Technical Specifications
Panel Typea-Si TFT-LCD, LCM
Active Area344.16 * 193.59 mm
Outline Dimensions351.74 * 205.69 * 5.33 mm (H*V*D)
Response Time20 ms (Typ.)
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Voltage Supply3.3V (Typ.)
Surface TreatmentHard coating
Backlight System11S6P WLED with LED Driver
Display Technology
This display utilizes ADS (Advanced Super Dimension Switch) technology with normally black mode and transmissive characteristics. The slim outline design with PCBA bent (T≤3.0mm) makes it ideal for modern laptop applications requiring high-performance displays in compact form factors.

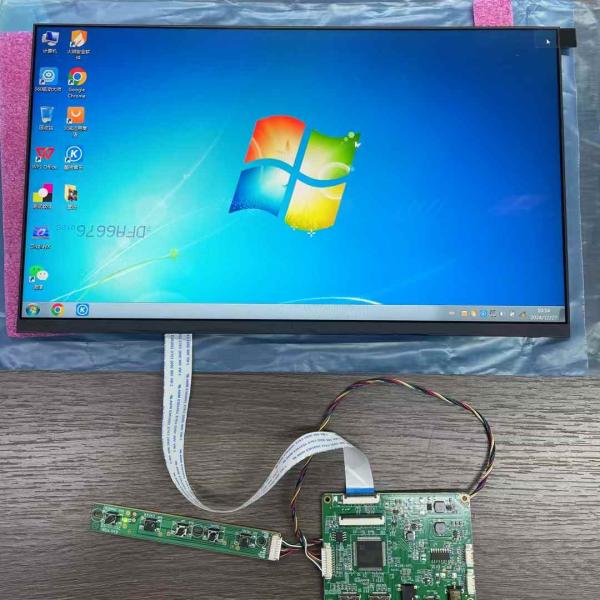

Product Images
BOE TV156FHM-NM0 15.6 Inch LCD Module with 1920x1080 Pixels and 1000:1 Contrast Ratio BOE TV156FHM-NM0 15.6 Inch LCD Module with 1920x1080 Pixels and 1000:1 Contrast Ratio
Mass production began Q2 2023. For the latest production status and detailed specifications, please contact BOE or their authorized distributors. Information provided is for reference only and should not be used as the sole basis for decision-making.
