BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
Specifications
Brand Name :
BOE
Model Number :
LM140GF2L01
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
2560*1600 ixels
style :
FHD 30P
brightness :
400 CCD M2
color :
16.7M
contrast ratio :
1200 :1
working life :
15K Hours
Description
BOE LM140GF2L01 14-Inch LCD Display Module
High-resolution 14.0-inch WQXGA display panel with 2560*1600 pixel resolution, designed for laptop applications with advanced Oxide TFT-LCD technology.
Key Features
  • 2560*1600 WQXGA resolution (215 PPI)
  • 100% sRGB color gamut supporting 16.7 million colors
  • 400 cd/m² typical luminance with 1200:1 contrast ratio
  • eDP 1.4 interface with 40-pin connector
  • WLED backlight system with integrated LED driver
  • Wide viewing angles: 89/89/89/89 (Left/Right/Up/Down)
  • Multiple refresh rate support including 60Hz, 120Hz, and 240Hz modes
  • Antiglare matte surface treatment (Haze 25%)
Technical Specifications
Brand & Model BOE LM140GF2L01
Panel Type Oxide TFT-LCD with LCM
Diagonal Size 14.0 inches
Active Area 301.824mm * 188.64mm
Outline Dimensions 306.82mm * 205.24mm * 2.4mm
Response Time 25ms (Typical)
Interface eDP (4 Lanes), eDP1.4, 40-pin connector
Power Supply 3.3V (Typical)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Backlight System WLED [9S6P], 15,000 hours lifespan
Designed For Laptop applications

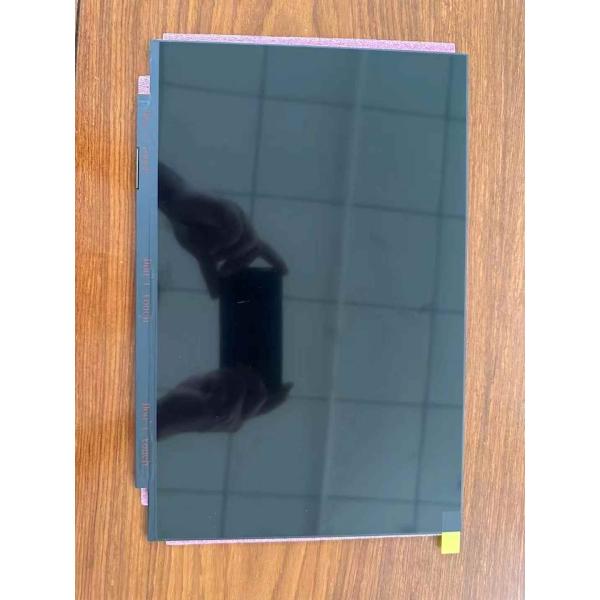

Display Images
BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
Production Note: This model entered mass production in Q1 2021 and is currently in production. For integration into your products, we recommend contacting BOE or their authorized agents for the latest production status and detailed specifications.
