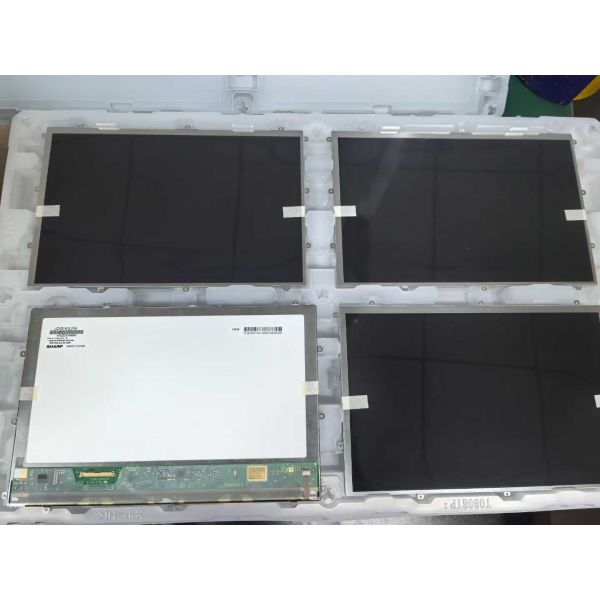

Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness
Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness
Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness
Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness
Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness
Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness
Specifications
Brand Name :
Sharp
Model Number :
LQ101K1LY04
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1280*800pixels
style :
40PIN IPS
brightness :
400CD/M2
color :
16.7m
contrast ratio :
800 :1
working life :
20K Hours
Type :
lcm
Size :
10.1inch
Lamp type :
LCM
Voltage :
3.3V
Description
Sharp 10.1nch Industrial Lcd panel LQ101K1LY04 1280*800Pixels 149PPI 400cd/M2 40PIN 3.3V
The LQ101K1LY04 is a 10.1 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Reverse I/F, Glossy . Based on its features, einklcd recommend that this model be applied to Pad & Tablet, Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2012 and last shippment on Q1, 2021, Now this model is discontinued. We inputted this model's specification on Apr 4 2013 for the first time, and the latest update on Aug 10 2023. If you want to embed LQ101K1LY04 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail. The LQ101K1LY04 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: Sharp
Model P/N:LQ101K1LY04
Diagonal Size:10.1"
Panel Type:a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA 149PPI Pixel
Format :RGB Vertical Stripe
Active Area: 216.96(W)×135.6(H) mm
Bezel Opening 220.56(W)×139.2(H) mm
Outline Size: 237.94(W)×156.66(H) ×5.3(D) mm
Surface Glare (Haze 0%), Reflection 1.25% (Typ.)
Brightness 400 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode: PSV, Normally Black, Transmissive
Best View on Symmetry
Response Time: 25 (Typ.)(Tr+Td)
Display Colors 16.7M 50% NTSC
Lamp Type 7S6P WLED , 20K hours , Without Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Screen: Without
Panel Weight: 165/185g (Typ./Max.)
Application: Pad & Tablet Industrial
Signal Interface: LVDS (1 ch, 8-bit) , 40 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -10 ~ 60 °C ;
Storage Temp.: -20 ~ 70 °C
