Specifications
Brand Name :
BOE
Model Number :
HV550QUB-F70
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
brightnerss :
500CCD/M2
Connector :
120P
Color :
1.07Billion
Contrast ratio :
1200:1
working life :
30K hours
touch panel :
without
resolution :
3840*2160pixels
Description
BOE 55-Inch TV LCD Display Screen HV550QUB-F70
The HV550QUB-F70 is a 55-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel features UHD resolution (3840*2160 pixels), 1.07 billion colors, and 120Hz refresh rate capability. Designed for television applications, it offers advanced display technology without integrated backlight or touch screen.
Key Specifications
Brand BOE
Model Number HV550QUB-F70
Diagonal Size 55-inch
Panel Type a-Si TFT-LCD, CELL
Resolution 3840(RGB)*2160 (UHD), 80 PPI
Active Area 1209.6mm * 680.4mm
Outline Dimensions 1221.4mm * 694.8mm * 1.34mm
Color Depth 1.07 Billion Colors (10-bit)
Contrast Ratio 1200:1 (Typical)
Viewing Angle 89°/89°/89°/89° (Left/Right/Up/Down)
Response Time 8ms (Typical, G to G)
Advanced Features
  • 120Hz refresh rate with embedded MEMC circuit
  • 240Hz capability with 60Hz input via MEMC technology
  • Built-in 6 source chips driver IC with COF technology
  • Antiglare treatment with hard coating (3H)
  • ADS technology with normally black, transmissive operation
  • 120-pin connector with CEDS signal type
Environmental Specifications
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Panel Weight 2.60kg (Typical)
Glass Thickness 0.50mm + 0.50mm

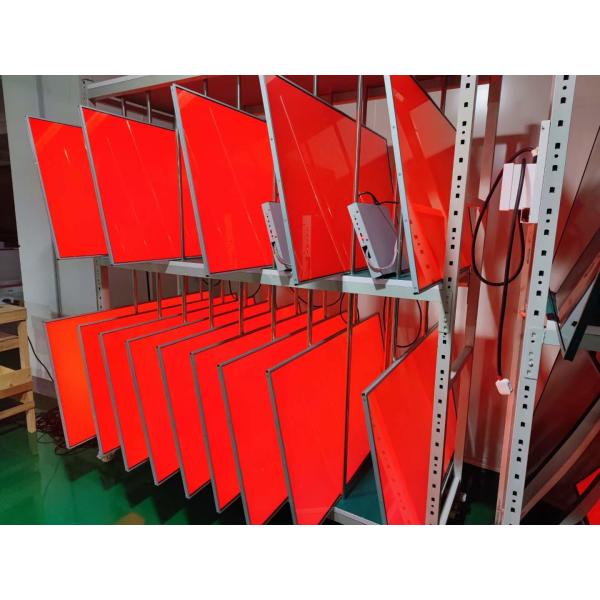

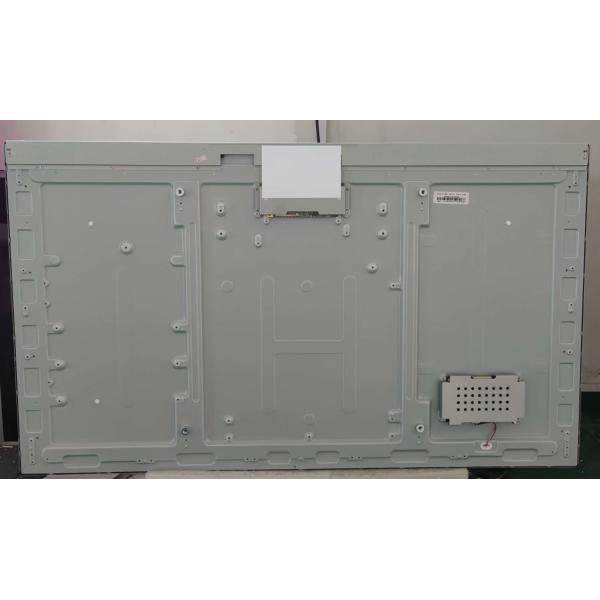

Product Images
BOE 55Inch TV LCD Display Screen HV550QUB-F70 with 3840*2160pixels Resolution 1.07 Billion Colours and 120P Connector BOE 55Inch TV LCD Display Screen HV550QUB-F70 with 3840*2160pixels Resolution 1.07 Billion Colours and 120P Connector
This display panel is designed for television applications and does not include backlight or touch screen functionality. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized agents directly.
