BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
Specifications
Brand Name :
BOE
Model Number :
TV101WXM-LL0
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
brightnerss :
250CCD/M2
Connector :
30P
Color :
16.7M
Contrast ratio :
1000:1
working life :
30K hours
touch panel :
without
Description

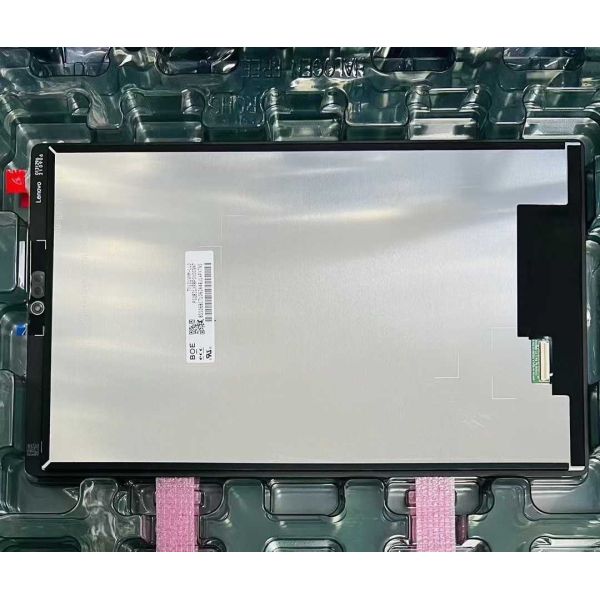

BOE 10.1-Inch Laptop PC LCD Panel TV101WXM-LL0
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
Product Overview
10.1-inch diagonal a-Si TFT-LCD display panel with 250 cd/m² brightness, 150 PPI resolution, and MIPI connector. Features In-Cell Touch technology and WLED backlight system.
Technical Specifications
BrandBOE
Model NumberTV101WXM-LL0
Diagonal Size10.1 inches
Panel Typea-Si TFT-LCD, LCM
Resolution800(RGB)*1280, WXGA (150 PPI)
Active Area135.36 * 216.576 mm
Luminance250 cd/m²
Contrast Ratio1000:1 (Typical)
Viewing Angle80/80/80/80 (CR≥10)
Response Time25 ms (Typical)
Color Depth16.7 million colors
BacklightWLED, No Driver
Refresh Rate60Hz
TouchscreenIn-Cell Touch
Signal TypeMIPI (4 data lanes)
Voltage Supply1.8/3.3V (IOVCC/VDD)
Operating Temperature0°C to 60°C
Storage Temperature-20°C to 70°C
Key Features
  • Portrait orientation display
  • Integrated In-Cell Touch technology
  • WLED backlight system
  • HADS work mode with normally black, transmissive design
  • Built-in NT35521S driver IC
  • Originally designed for Tab M10 HD X306FC applications
Application
Ideal for tablets, pads, and portable computing devices requiring high-quality display performance with integrated touch functionality.
BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
Important Note: This model has been discontinued. For integration into future products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
