BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
Specifications
Brand Name :
BOE
Model Number :
BP101WX1-300
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.7M colors
model :
WLED
style :
wide screen high resolution 1280*800PIXELS
brightness :
450cd
connector :
45PIN
working time :
30k hours
input voltage :
3.3V
Description

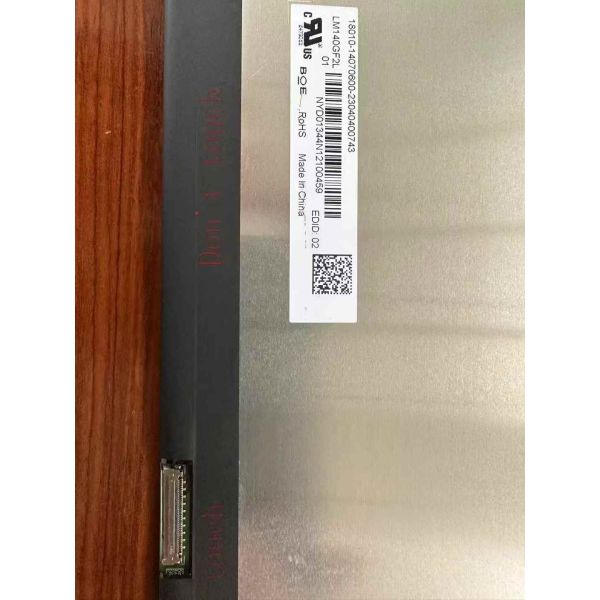

BOE 14-inch Laptop LCD Panel LM140GF2L01
High-resolution 14.0-inch display panel featuring 2560*1600 WQXGA resolution with 400 cd/m² brightness, designed for tablet displays and laptop screens.
Product Overview
LM140GF2L01 is a 14.0-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel includes an integrated WLED backlight system with LED driver and operates without a touch screen. Mass production began in Q1 2021 and the model remains in current production.
Key Features
  • 2560*1600 WQXGA resolution (215 PPI)
  • 400 cd/m² typical brightness
  • 1200:1 contrast ratio
  • 100% sRGB color gamut (16.7 million colors)
  • eDP 1.4 interface with 40-pin connector
  • PSR and Adaptive sync technology
  • Antiglare surface treatment (25% haze)
  • WLED backlight with 15,000-hour lifespan
Technical Specifications
Brand BOE
Model P/N LM140GF2L01
Diagonal Size 14.0 inches
Panel Type Oxide TFT-LCD, LCM
Resolution 2560(RGB)*1600, WQXGA
Active Area 301.824(W) * 188.64(H) mm
Outline Size 306.82(W) * 205.24(H) * 2.4(D) mm
Brightness 400 cd/m² (Typical)
Contrast Ratio 1200:1 (Typical)
Viewing Angle 89/89/89/89 (CR≥10)
Response Time 25ms (Typical, Tr+Td)
Display Colors 16.7M, 100% sRGB
Signal Interface eDP (4 Lanes), eDP1.4, 40-pin connector
Input Voltage 3.3V (Typical)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Application
Recommended for laptop displays and tablet applications. Features slim design with PCBA flat configuration (T≤3.2mm).
BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen
For integration into future products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. The production information provided is for reference only and should not be used as the sole basis for decision-making.
