Specifications
Brand Name :
innolux
Model Number :
AT056TN52
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1200*1920pixels
style :
WLED 60P
brightness :
290 CCD M2
color :
16.7M
contrast ratio :
900 :1
working life :
30K Hours
Description

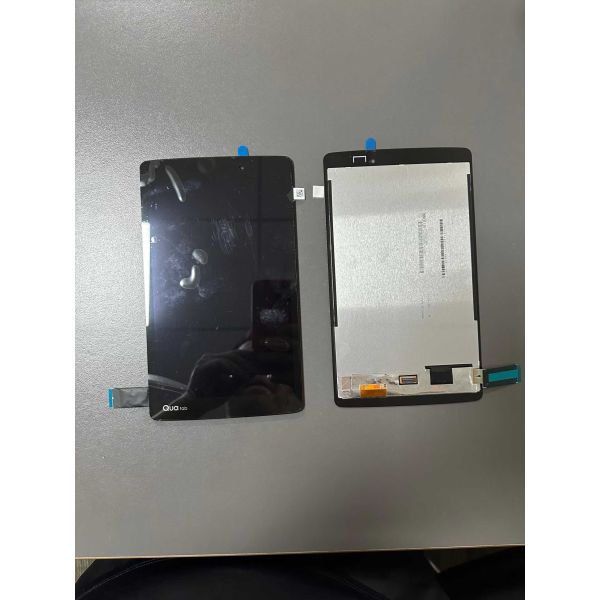

Innolux 8-Inch Tablet PC LCD Panel P080LDN-DB4
High-resolution 8-inch LCD display panel with 1200*1920 pixels, 290 cd/m² brightness, and 44-pin interface, designed for tablet PC and pad applications.
Product Overview
The P080LDN-DB4 is an 8.0-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation featuring an integral WLED backlight system, On-Cell touch technology, and built-in NT51021 driver IC. This panel offers sRGB color gamut, portrait orientation, and is optimized for pad and tablet applications.
Key Features
  • 8.0-inch WUXGA display with 1200(RGB)*1920 resolution
  • 283 PPI pixel density for sharp image quality
  • 290 cd/m² typical brightness
  • 900:1 contrast ratio
  • On-Cell touch technology with I²C interface
  • 16.7 million colors with 70% NTSC coverage
  • MIPI interface with 4 data lanes
  • 44-pin connector
  • Symmetrical viewing angles
Technical Specifications
BrandInnolux
Model P/NP080LDN-DB4
Diagonal Size8.0"
Panel Typea-Si TFT-LCD, Assembly
Resolution1200(RGB)*1920, WUXGA
Pixel FormatRGB Vertical Stripe
Active Area107.64(W)*172.224(H) mm
Outline Dimensions120.54 * 207.15 mm
Luminance290 cd/m² (Typ.)
Contrast Ratio900:1 (Typ.)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)
Response Time25 ms (Typ.)(Tr+Td)
Color Depth16.7M, 70% NTSC
Backlight6S4P WLED, No Driver
Mass130g (Max.)
Refresh Rate60Hz
TouchscreenOn-Cell Touch, I²C
Signal TypeMIPI (4 data lanes), 44 pins Connector
Voltage Supply1.8/3.3V (Typ.)(VDDIO/VDD)
Important Note: This model entered mass production in Q4 2016 and is now discontinued. For integration into future products, we strongly recommend contacting Innolux or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.
