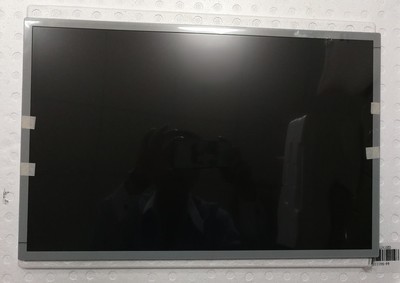

BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector
Specifications
Brand Name :
boe
Model Number :

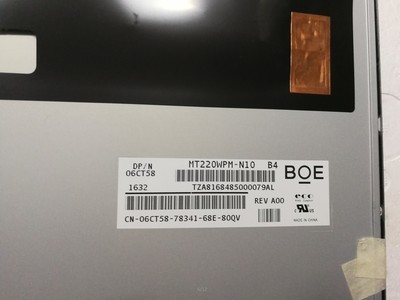

MT220WPM-N10
Certification :
Rohs,CE,FCC
Place of Origin :
KOREA
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.7M colors
model :
WLED
style :
wide screen high resolution 1680*1050
brightness :
250cd
connector :
30pin
contrast ratio :
1000:1
working life :
40K hours
Description
Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
BOE
22.0"
1680(RGB)×1050 , WSXGA+
473.76(W)×296.1(H) mm
493.7(W)×320.1(H) ×10.7(D) mm
250 cd/m² (Typ.)
85/85/80/80 (Typ.)(CR≥10)
6 o'clock
16.7M 72% (CIE1931)
60Hz
1.83Kgs (Typ.)
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
MT220WPM-N10
a-Si TFT-LCD , LCM
RGB Vertical Stripe
477.7(W)×300.1(H) mm
Antiglare (Haze 25%), Hard coating (3H)
1000:1 (Typ.) (TM)
TN, Normally White, Transmissive
1.5/3.5 (Typ.)(Tr/Td)
3 strings WLED , 40K hours , Without Driver
Without
Signal Interface LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C

BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN ConnectorBOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN ConnectorBOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector

It's 250cd/m2 22inch BOE lcd MODEL for TV and monitor ,TV wall lcd,Destktop computer

All our LCD LED screen monitor module panel products will be full test one by one before sending .
