22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
Specifications
Brand Name :
AUO
Model Number :
G220SVN01.0
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1680×1050PIXELS 90PPI
style :
30PIN IPS
brightness :
250CD/M2
color :
16.7M
contrast ratio :
2000 :1
Voltage Supply :
5.0V
Description
G220SVN01.0 22-Inch Industrial LCD Monitor
Product Overview

The AU Optronics G220SVN01.0 is a 22-inch diagonal industrial TFT-LCD display panel featuring 1680*1050 resolution at 90 PPI. This high-performance monitor delivers 250 cd/m² brightness with 16.7 million colors and utilizes a 5.0V WLED backlight system with integrated LED driver for extended 30,000-hour lifespan.

Key Features
  • 22-inch industrial-grade TFT-LCD display
  • 1680*1050 resolution (90 PPI)
  • 250 cd/m² brightness
  • 5.0V WLED backlight with integrated driver
  • 30,000-hour backlight lifespan
  • 16.7 million color support
  • 30-pin interface connection
  • Matte surface finish
  • Upside interface configuration

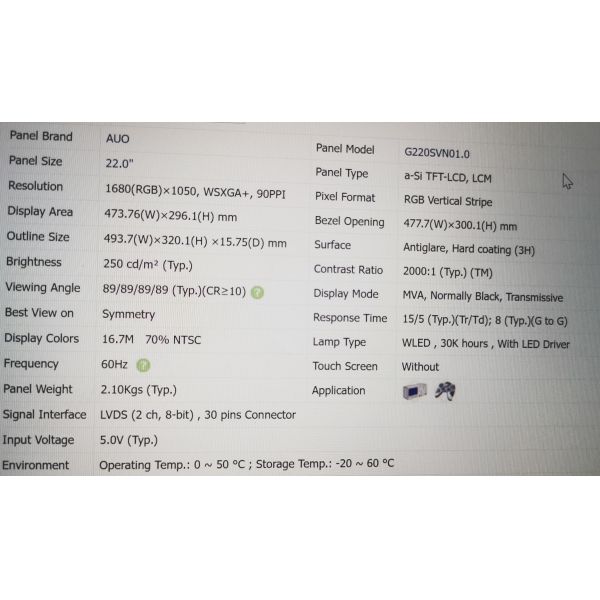

Technical Specifications
Display Size22.0 inches diagonal
Resolution1680 * 1050 pixels
Pixel Density90 PPI
Brightness250 cd/m²
BacklightWLED with driver
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Vibration Resistance1.5G (14.7 m/s²)
Touch ScreenNot included
Application Areas

This industrial LCD monitor is ideally suited for industrial automation, gaming systems, control panels, and other demanding applications requiring reliable display performance in challenging environments.

Product Images
22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0 22 Inch Industrial LCD Display with 250cd/m2 Brightness and WLED Backlight G220SVN01.0
Important Note: The G220SVN01.0 model entered mass production in Q2 2013 with final shipments in Q1 2020. This product is now discontinued. For integration into future products, we strongly recommend contacting AU Optronics or their authorized distributors for the latest production status and specifications. Information provided here is for reference only and should not be used as the sole basis for decision-making.
