AUO 15.6 Inch LCD Display with 1920x1080 Resolution and 500 cd/m² Brightness TFT-LCD Panel
AUO 15.6 Inch LCD Display with 1920x1080 Resolution and 500 cd/m² Brightness TFT-LCD Panel
AUO 15.6 Inch LCD Display with 1920x1080 Resolution and 500 cd/m² Brightness TFT-LCD Panel
AUO 15.6 Inch LCD Display with 1920x1080 Resolution and 500 cd/m² Brightness TFT-LCD Panel
Specifications
Brand Name :
AUO
Model Number :
B156HANAC.H
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1920*1080pixels
style :
30PIN IPS
brightness :
500CD/M2
color :
16.7M
contrast ratio :
800 :1
working life :
15K Hours
Type :
lcm
Size :
15.6Inch
Lamp type :
WLED
Voltage :
3.3 V
Description
AUO 15.65Inch Laptop Lcd Model B156HANACH 1920X1080P 141PPI 350cd/M2 30PIN 3.3V lcd display

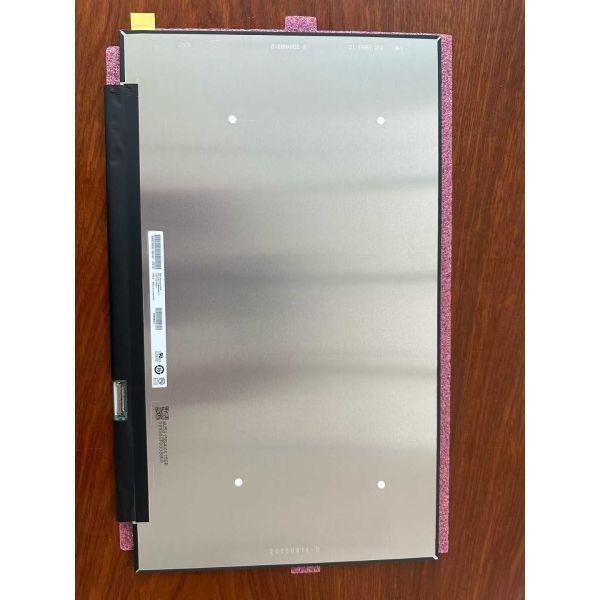

B156HANAC.H (Product Code: AUO61BC) is a 15.6" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte, AMD FreeSync , eDP1.4, PSR2, Free-Sync. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q4, 2025, Now this model is in production. We inputted this model's specification on Sep 18 2025 for the first time. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of B156HANAC.H. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand
AUO
Model P/N
B156HANAC.H
Diagonal Size
15.6"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080, FHD 141PPI
Pixel Format
RGB Vertical Stripe
Active Area
344.16(W)×193.59(H) mm
Bezel Opening
-
Outline Size 350.66(W)×215.34(H) ×2.75(D) mm Surface Antiglare
Brightness 500 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode AHVA, Normally Black, Transmissive
Best View on Symmetry Response Time 30 (Typ.)(Tr+Td)
Display Colors 16.7M 100% sRGB Lamp Type WLED , 15K hours , With LED Driver
Frequency 60Hz Touch Screen Without
Shape Style Slim (PCBA Flat, T≤3.2mm) Application
Signal Interface eDP (2 Lanes) , eDP1.4 , 30 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
