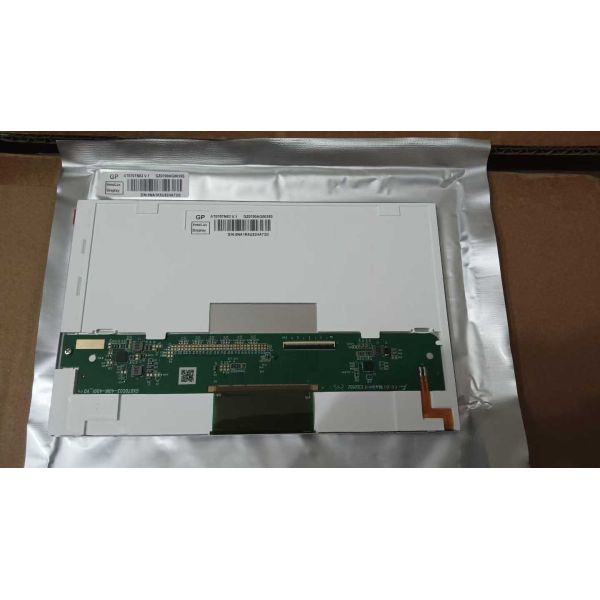

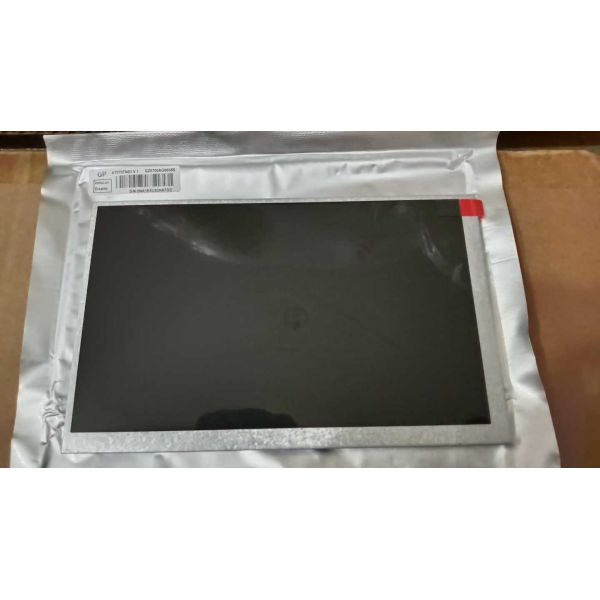

Innolux 7inch Desktop lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN
Innolux 7inch Desktop lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN
Innolux 7inch Desktop lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN
Innolux 7inch Desktop lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN
Innolux 7inch Desktop lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN
Innolux 7inch Desktop lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN
Specifications
Brand Name :
Innolux
Model Number :
AT070TN83V.1
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
800*480 ixels
style :
FHD 30P
brightness :
400 CCD M2
color :
16.7M
contrast ratio :
1000 :1
working life :
20K Hours
Description

Innolux7inch Industrial lcd model AT070TN83V.1 800*480Pixels 133PPI Portable PC LCD Module 40PIN

Innolux Corporation (hereafter called Innolux) AT070TN83 V.1 (Alias: AT070TN83 V1) is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, U/D,L/R Reverse, Matte , SYNC & DE mode, 2 in 1 Connector. Based on its features, einklcd recommend that this model be applied to Digital Photo Frame, Portable DVD Player, MP3 PMP etc. According to the information stored in einklcd this model mass production on Q4, 2007, Now this model is in production. We inputted this model's specification on Feb 1 2013 for the first time, and the latest update on Jan 10 2025. If you want to embed AT070TN83 V.1 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The AT070TN83 V.1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Innolux
Model P/N: AT070TN83 V.1 Compatible Model 1 Compatible
Diagonal Size 7.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution 800(RGB)×480, WVGA 133PPI
Pixel Format RGB Vertical Stripe
Active Area 152.4(W)×91.44(H) mm
Bezel Opening155.3(W)×94.3(H) mm
Outline Size 165(W)×104(H)×5.8(D) mm
Treatment Antiglare
Luminance 400 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Response 25 (Typ.)(Tr+Td) ms
Good View at 6 o'clock Work Mode TN, Normally White, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Color Depth 262K 50% NTSC Backlight WLED , 20K hours , With LED Driver
Mass 113g (Typ.)
Used for :Digital Photo Frame ,Portable DVD Player ,MP3 PMP
Refresh Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen :Without
Signal Type TTL (1 ch, 6-bit) , 40 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70 °C
