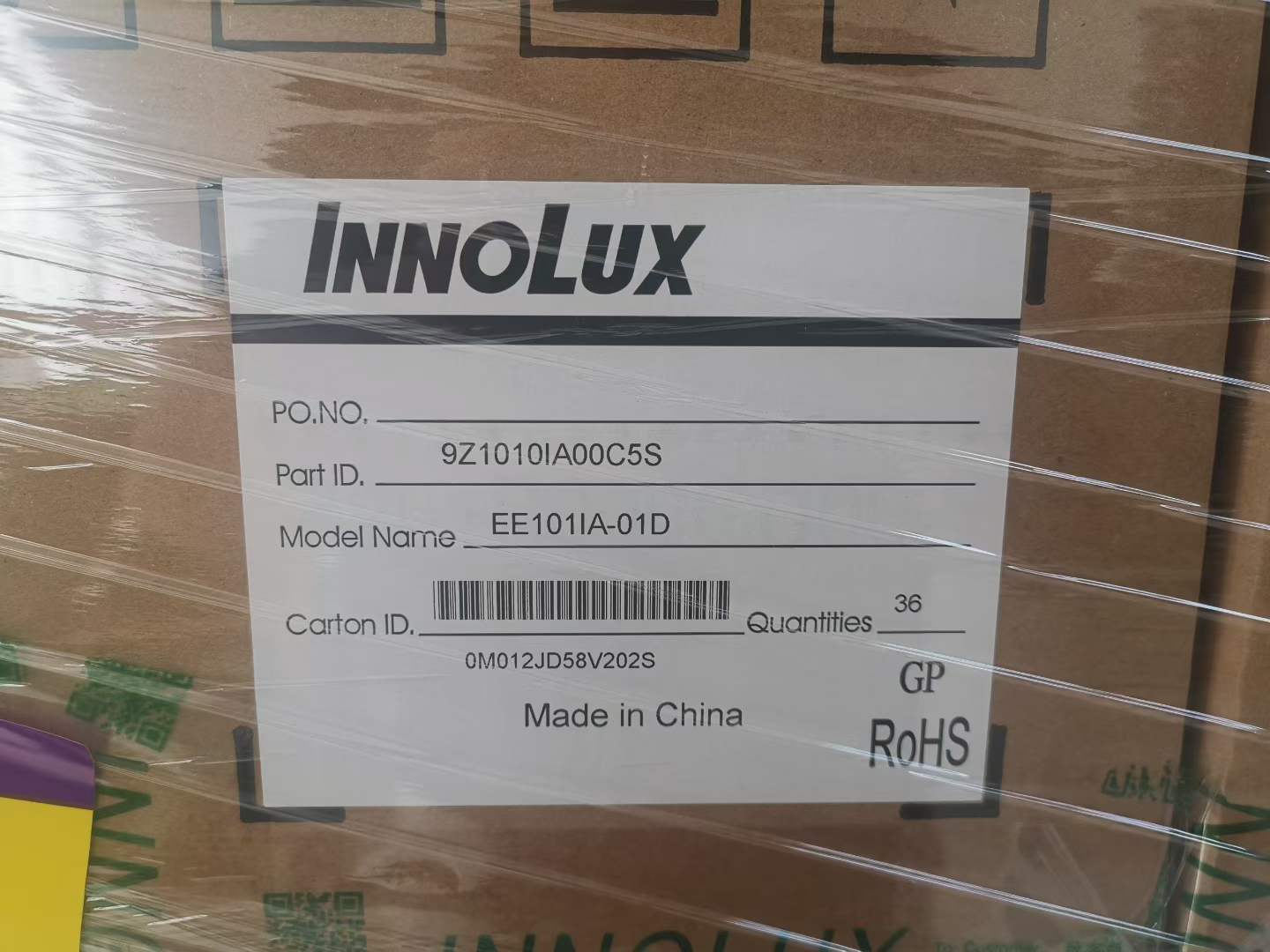

Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Specifications
Package :
Original industrial packing
Model Number :
EE101IA-01D
model :
WLED
contrast ratio :
800:1
MOQ :
10pcs
Delivery Time :
4-5 working day
brightness :
500cd
Payment Terms :
T/T,W,Western Union
Quality :
Brand new Original
Brand Name :
innolux
working time :
20k hours
Packaging Details :
Industrial packing
style :
wide screen high resolution 1280*800
Price :
Negotiation
connector :
40PIN
Supply Ability :
3000pcs per week
material :
glass oled
Certification :
Rohs,CE,FCC
color :
16.7m colors
Place of Origin :
china
Description
Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m² Brightness LCD Display Panel
Product Overview

The Innolux EE101IA-01D is a 10.1-inch diagonal a-Si TFT-LCD display panel designed for tablet PC and PAD applications. This display cell features WXGA resolution, high brightness, and IPS technology for optimal viewing performance.

Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Key Features
  • 10.1-inch diagonal active display area
  • 1280*800 WXGA resolution (16:10 aspect ratio)
  • 500 cd/m² brightness specification
  • IPS technology with wide viewing angles
  • 800:1 contrast ratio
  • 16.7 million color display capability
  • Built-in EK79202 driver IC
  • LVDS interface with 40-pin connector
Technical Specifications
Manufacturer Innolux
Model Number EE101IA-01D
Screen Size 10.1 inch
Screen Type a-Si TFT-LCD, CELL (FOB)
Resolution 1280(RGB)*800, WXGA
Active Area 216.96*135.6 mm (H*V)
Outline Dimensions 223.95*144.24*1.06 mm (H*V*D)
Weight 80.0g (Typical)
Viewing Angle 85/85/85/85 (Typical, CR≥10)
Response Time 10/15 ms (Typical, Tr/Td)
Display Type IPS, Normally Black, Transmissive
Color Gamut 16.7M, 50% NTSC
Refresh Rate 60Hz
Interface LVDS (1 channel, 8-bit), 40-pin connector
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Application Information

This display panel is specifically designed for Pad & Tablet applications. The product is supplied as a CELL without backlight, backlight driver, or touch screen.

Important Note: Production status information is for reference only. For integration into your products, contact Innolux or their distributor for the latest production and specification details.
