BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
Specifications
Model Number :
NV127H4M-NX1
Package :
Original industrial packing
Brand Name :
BOE
Quality :
Brand new Original
MOQ :
10pcs
Delivery Time :
4-5 working day
model :
LCM,TFT
connector :
40Pin
Packaging Details :
Industrial packing
working life :
15k hours
Price :
Negotiation
style :
LCM
Certification :
Rohs,CE,FCC
material :
glass led
Place of Origin :
China
color :
16.7M
Payment Terms :
T/T,W,Western Union,MoneyGram
resolution :
2880*864pixels
screen size :
12.7inch
Supply Ability :
3000pcs per week
brightness :
500CCD/M2
contrast ratio :
1200:1
Description

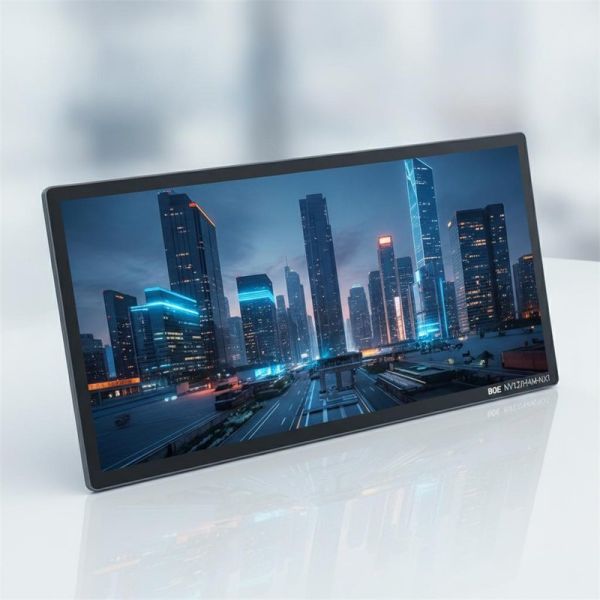

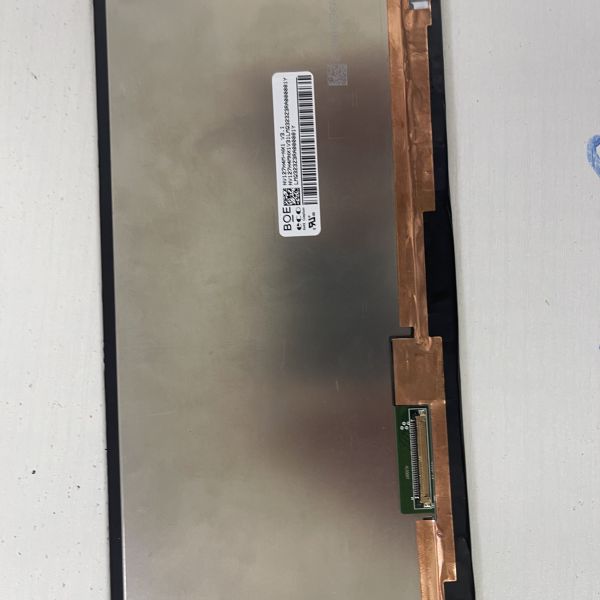

BOE 12.7-inch Stretched LCD Display NV127H4M-NX1
Product Overview

BOE Technology Group Co., Ltd. presents the NV127H4M-NX1 (Product Code: BOE0A8D), a 12.7-inch diagonal a-Si TFT-LCD display panel featuring an integral WLED backlight system with LED driver. This stretched bar display offers exceptional visual performance with 2880×864 pixel resolution and 500 cd/m² brightness.

BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
Key Features
  • DCI-P3 and sRGB color gamut support
  • 120Hz refresh rate for smooth performance
  • WLED backlight with integrated LED driver
  • eDP 1.4 interface with 4 lanes
  • PSR (Panel Self Refresh), SDRRS, CABC, and BIST technologies
  • Hard coating surface (3H hardness)
  • 16.7 million colors with 100% DCI-P3 coverage
Technical Specifications
Manufacturer BOE
Display Size 12.7" (Native bar)
Resolution 2880(RGB)×864 pixels (>3:1 aspect ratio)
Display Area 308.448(W) × 92.534(H) mm
Outline Size 313.54(W) × 101.33(H) × 4.3(D) mm
Brightness 500 cd/m² (Typical)
Viewing Angle 89/89/89/89 (Typical, CR≥10)
Contrast Ratio 1200:1 (Typical)
Response Time 25ms (Typical, Tr+Td)
Panel Weight 134g (Maximum)
Interface eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane), 40-pin connector
Input Voltage 3.3V (Typical)
Light Source 10S6P WLED, 15K hours lifespan, with LED driver
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 55°C
Applications

This model is recommended for laptop displays, stretched bar LCD applications, and other devices requiring high-performance, elongated display solutions.

Important Note: Mass production began in Q2 2022 and the model is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
