BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
Specifications
Model Number :
AV123Z7M-N18-5DPI
Package :
Original industrial packing
Brand Name :
BOE
Quality :
Brand new Original
MOQ :
10pcs
Delivery Time :
4-5 working day
model :
WLED
contrast ratio :
1100:1
Payment Terms :
T/T,W,Western Union,MoneyGram
brightness :
800cd
Packaging Details :
Industrial packing
working time :
30k hours
Price :
Negotiation
style :
wide screen high resolution 1920*720
Supply Ability :
3000pcs per week
connector :
60
Certification :
Rohs,CE,FCC
material :
glass oled
Place of Origin :
CHINA
color :
16.7m colors
Description

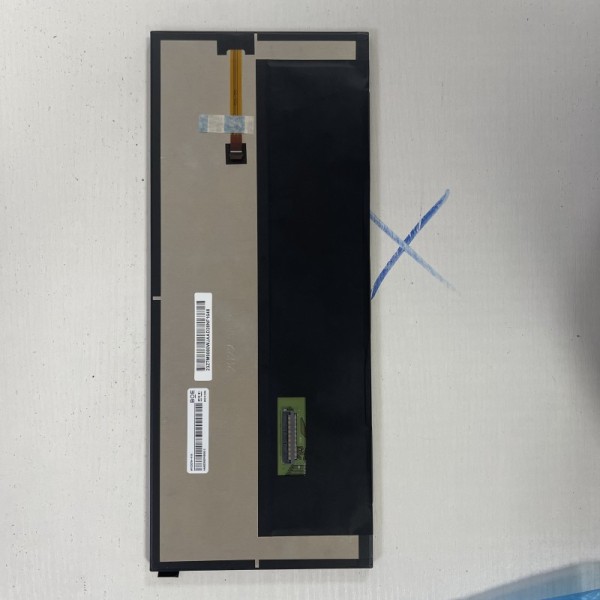

BOE 12.3inch Automotive LCD Display AV123Z7M-N18-5DP1
Product Overview

The AV123Z7M-N18-5DP1 (Alias: COG-CHSDT005-01) is a 12.3-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This automotive-grade display features a 1920×720 pixels resolution, 850 cd/m² brightness, and is designed for automotive display applications.

BOE 12.3inch Automotive LCD Display with 1920x720 Pixels Resolution 850cd/m² Brightness and WLED Backlight
Key Features
  • sRGB color gamut support
  • Wide operating temperature range (-40°C to 85°C)
  • High brightness (850 cd/m² typical)
  • WLED backlight system
  • Bar display format with 8:3 aspect ratio
  • Built-in driver IC: RM5366A×3 + RM57861×1
Technical Specifications
Brand BOE
Model AV123Z7M-N18-5DP1
Diagonal Size 12.3 inch
Display Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×720 (8:3 aspect ratio)
Pixel Structure RGB Vertical Stripe
Active Area 292.032(H) × 109.512(V) mm
Physical Size 307(H) × 126(V) × 10.52(D) mm
Brightness 850 cd/m² (Typical)
Contrast Ratio 1100:1 (Typical)
Viewing Angle 88/88/88/88 (Typical, CR≥10)
Response Time 25 ms (Typical, Tr+Td)
Operating Mode ADS, Normally Black, Transmissive
Color Support 16.7M colors, 75% NTSC
Interface LVDS (2 ch, 8-bit), 50 pins Connector
Light Source 9S4P WLED, Without Driver
Frame Rate 60Hz
Touch Panel Without
Surface Coating Hard coating
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 90°C
Important Note: This model entered mass production in Q4 2019 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
