Description

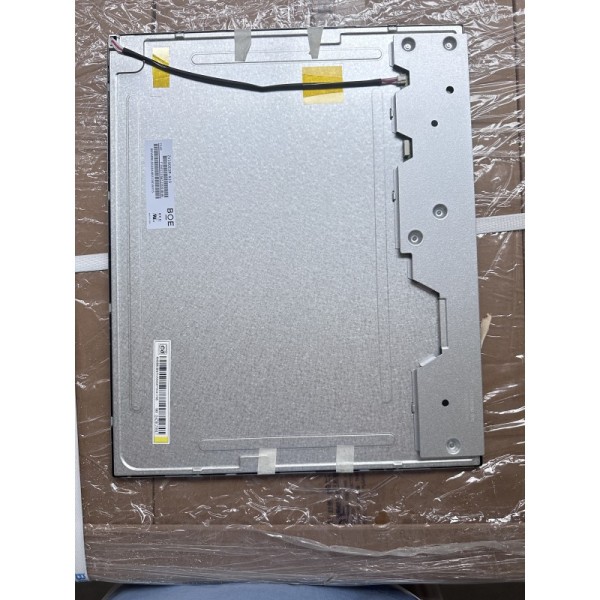

BOE 19" Industrial LCD Monitor ZV190E0M-N10
Product Overview
The ZV190E0M-N10 is a 19.0-inch diagonal industrial LCD monitor from BOE Technology Group Co., Ltd., featuring 1280×1024 resolution, 450 cd/m² brightness, and 50,000 hours working time. This a-Si TFT-LCD display panel includes an integral WLED backlight system with LED driver and operates within an extensive temperature range of -20°C to 70°C.
BOE 19
Technical Specifications
Manufacturer BOE
Model Name ZV190E0M-N10
Display Size 19.0 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×1024, 5:4, SXGA
Pixel Structure RGB Vertical Stripe
Display Area 374.784(W)×299.827(H) mm
Panel Weight 1.80Kgs (Typ.)
Outline Size 396(W)×324(H)×13.38(D) mm
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode ADS, Normally Black, Transmissive
View Direction Symmetry
Response Time 14 (Typ.)(G to G) ms
Display Colors 16.7M, 90% NTSC
Frequency 60Hz
Touch Screen Without
Power Consumption 19.2/23.5W (Typ./Max.)
Light Source 11S4P WLED, 50K hrs, With LED Driver
Interface LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage 5.0V (Typ.)
Operating Temperature -20°C to 70°C
Storage Temperature -20°C to 75°C
Application & Features
This industrial LCD monitor features wide color gamut, sRGB compatibility, WLED backlight with 50,000+ hours lifespan, and integrated LED driver. Recommended for industrial applications requiring reliable performance in demanding environments.
Important Note: Mass production began in Q2 2020 and the model remains in production. For integration into your products, contact BOE or their authorized agents for the latest production status and specification details. Information provided is for reference only and should not be used as the sole basis for decision-making.
