Specifications
Brand Name :
BOE
Model Number :
HM150X01-102
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day

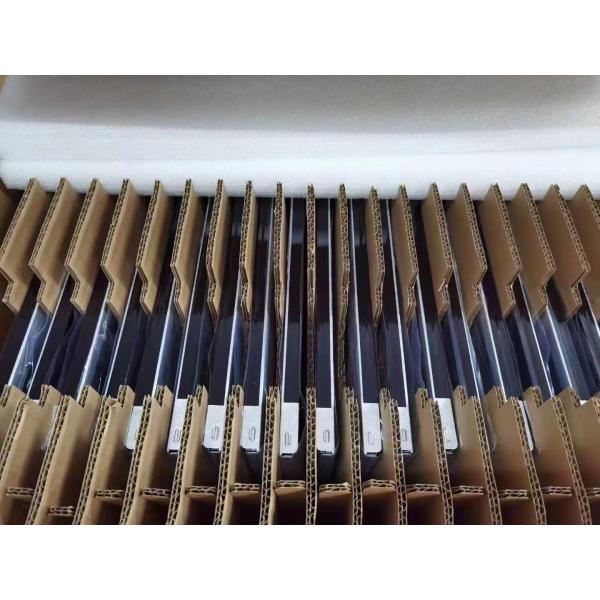

Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1024×768PIXELS 85PPI
style :
20PIN IPS
brightness :
400CD/M2
color :
16.2m
contrast ratio :
700 :1
Voltage Supply :
3.3V
signal type :
LVDS,20pin
Backlight :
50k hours life
Description
BOE 15-Inch Industrial LCD Panel HM150X01-102
15-inch diagonal medical imaging LCD display with 1024*768 XGA resolution, 350 cd/m² brightness, and 85 PPI pixel density.
Product Overview
The BOE HM150X01-102 is a 15.0-inch a-Si TFT-LCD display panel featuring an integrated WLED backlight system with LED driver. Designed for demanding environments, this industrial-grade panel operates in temperatures from -20°C to 70°C and withstands vibration levels up to 1.5G (14.7 m/s²).
Key Features
  • Lamp replaceable WLED backlight with 50,000+ hour lifespan
  • Matte anti-glare treatment with hard coating (3H)
  • 180° reverse display capability
  • 6/8-bit LVDS interface with 20-pin connector
  • Wide viewing angle: 80/80/80/80 (CR≥10)
  • 700:1 contrast ratio with 8ms response time
BOE 15Inch Industrial LCD Panel HM150X01-102 with 1024×768 Resolution 350 cd/m² Brightness and 85 PPI BOE 15Inch Industrial LCD Panel HM150X01-102 with 1024×768 Resolution 350 cd/m² Brightness and 85 PPI
Technical Specifications
ManufacturerBOE
Model NameHM150X01-102
Screen Size15.0 inch
Screen TypeLCM, a-Si TFT-LCD
Resolution1024(RGB)*768 (XGA) 85PPI
Active Area304.128 * 228.096 mm (H*V)
Outline Dimensions326.5 * 253.5 * 11.9 mm (H*V*D)
Luminance350 cd/m² (Typical)
Contrast Ratio700:1 (Typical)
Viewing Angle80/80/80/80 (CR≥10)
Response Time8 ms (Typical, Tr+Td)
Color Depth262K/16.2M, 60% NTSC
Backlight9S3P WLED, 50K hours, With LED Driver
Weight1.04 kg (Typical)
Refresh Rate60Hz
Signal InterfaceLVDS (1 ch, 6/8-bit), 20-pin connector
Operating Voltage3.3V (Typical)
Operating Temperature-20°C to 70°C
Storage Temperature-30°C to 80°C
Application Areas
This display panel is recommended for industrial applications and medical imaging equipment.
BOE 15Inch Industrial LCD Panel HM150X01-102 with 1024×768 Resolution 350 cd/m² Brightness and 85 PPI BOE 15Inch Industrial LCD Panel HM150X01-102 with 1024×768 Resolution 350 cd/m² Brightness and 85 PPI
Important Note: This model entered mass production in Q1 2016 and is now discontinued. Specifications are provided for reference only. For current production status and latest specifications, please contact BOE or their authorized distributors directly.
