27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
Specifications
Brand Name :
Innolux
Model Number :
M270HCJ-L5B
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
brightnerss :
250CD/M2
Connector :
30PIN
Color :
16.7M
Contrast ratio :
1000:1
working life :
30K hours
resolution :
1920*1080pixels
Voltage supply :
5.0V
signal type :
LVDS
Description
LVDS 81PPI Desktop Monitor Module 27 Inch M270HCJ-L5B 1920*1080 250CD/M2
The Innolux M270HCJ-L5B is a 27.0-inch diagonal a-Si TFT-LCD display panel designed for desktop monitor applications. This high-performance display module features 1920*1080 resolution with 81PPI pixel density and delivers 250 cd/m² brightness for clear, vibrant visuals.
Key Features
  • 27-inch desktop monitor LCD display panel
  • Full HD 1920*1080 resolution with 81 PPI
  • 250 cd/m² brightness for clear visibility
  • 3-side borderless design for modern aesthetics
  • WLED backlight system for energy efficiency
  • Reverse interface technology
  • Matte surface treatment to reduce glare

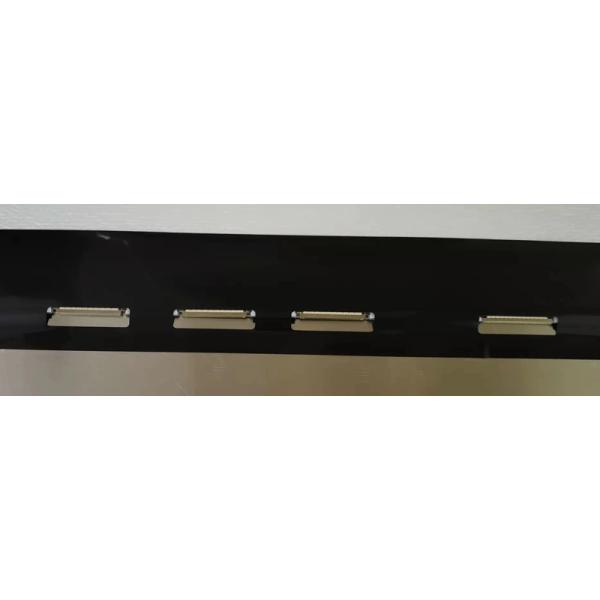

  • 30-pin LVDS interface connectivity

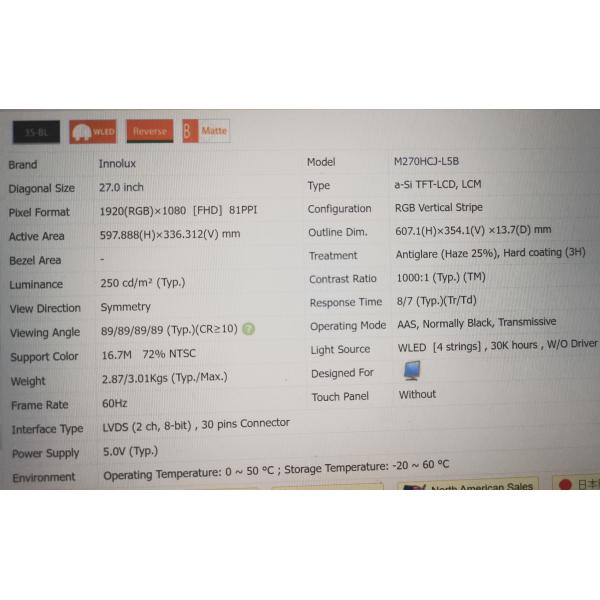

Technical Specifications
Model
M270HCJ-L5B
Screen Size
27.0 inches diagonal
Resolution
1920 * 1080 pixels
Pixel Density
81 PPI
Brightness
250 cd/m²
Technology
a-Si TFT-LCD
Backlight
WLED system
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 60°C

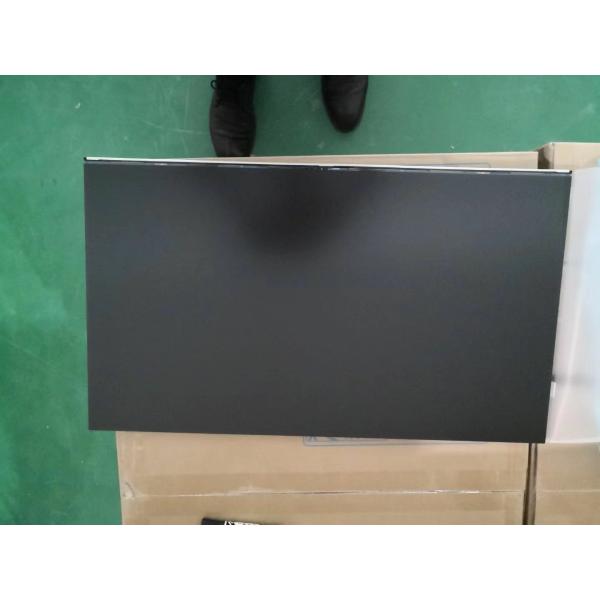

Product Images
27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness 27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness 27 Inch LVDS Desktop Monitor Module with 1920×1080 Resolution and 250CD/M2 Brightness
Production Information: Mass production began in Q3 2018 and this model is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting Innolux or their authorized distributors directly.
