BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
Specifications
Brand Name :
BOE
Model Number :
DV185WHM-NM1
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.7M colors
model :
WLED
style :
wide screen high resolution 1366*768PIXELS
brightness :
250cd
connector :
30PIN
working time :
30k hours
input voltage :
5.0V
Description
84PPI Digital Signage LCD Panel Glass OLED - BOE DV185WHM-NM1
BOE 18.5-inch Digital Signage LCD Panel
Model: DV185WHM-NM1
Resolution: 1366 * 768 pixels
Pixel Density: 84 PPI
Brightness: 250 cd/m²
Voltage: 5.0V
Interface: 30-pin
Product Overview
The BOE DV185WHM-NM1 is an 18.5-inch diagonal a-Si TFT-LCD display panel designed for digital signage applications. This panel features an integrated WLED backlight system and delivers reliable performance with excellent visual clarity.
Key Features
  • 18.5-inch TFT-LCD display with 1366 * 768 resolution
  • 84 PPI pixel density for sharp image quality
  • 250 cd/m² brightness rating
  • Integrated WLED backlight system
  • sRGB color gamut support
  • Matte surface treatment
  • ES 6.0 compliant
  • Upside interface configuration

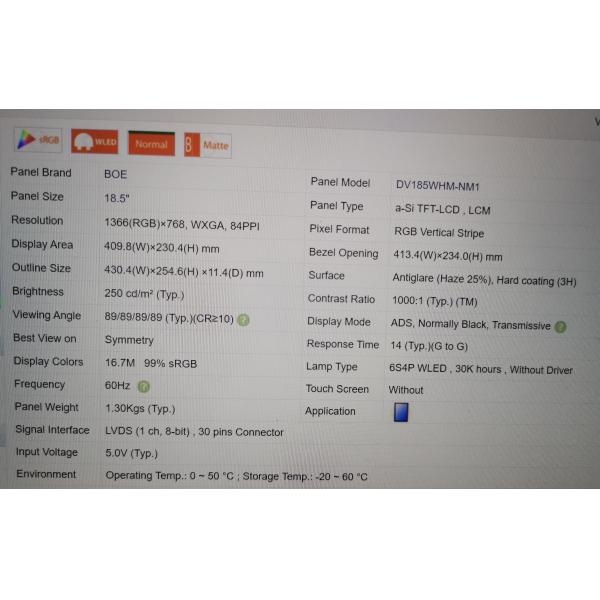

Technical Specifications
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Max Vibration Level 1.5G (14.7 m/s²)
Backlight WLED (integrated system)
Touch Screen Not included
Backlight Driver Not included
Application Recommendations
This display panel is specifically recommended for digital signage applications, offering optimal performance for commercial display solutions.
Production Information
Mass production began in Q2 2018, and the model remains in active production. For the most current production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors.

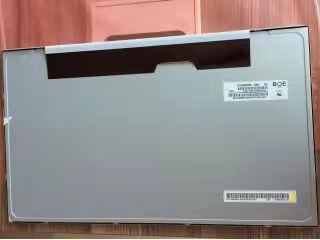

Product Images
BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness BOE 18.5 inch Digital Signage LCD Panel DV185WHM-NM1 with 1366*768 Pixels and 250cd/m² Brightness
