AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
Specifications
Brand Name :
auo
Model Number :
A080XN01 V0
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.2m colors
model :
XGA
style :
wide screen high resolution 1024*768Pixels
brightness :
300cd
connector :
40
contrast ratio :
700:1
working time :
15k hours
Description

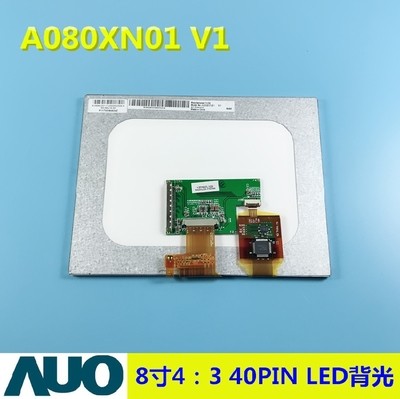

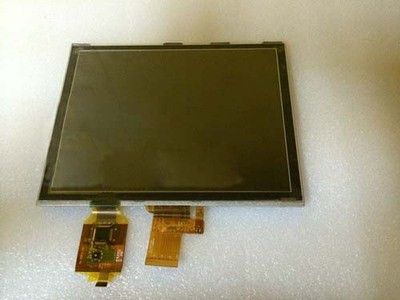

AUO 8 Inch Industrial Panel PC Touch Screen A080XN01 V0 V1
8-inch industrial LCD display with 1024*768 XGA resolution, 300 cd/m² brightness, and 40-pin LVDS interface.
Key Specifications
Specification Details
Brand AUO
Diagonal Size 8.0 inch
Pixel Format 1024(RGB)*768 (XGA)
Active Area 162.048(H)*121.536(V) mm
Luminance 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.)
Viewing Angle 55/55/75/75 (Typ.)(CR≥10)
Response Time 15/10 (Typ.)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Interface Type 40 pins LVDS (1 ch, 8-bit), FPC
Power Supply 3.3/5/-5/22/-10V (Typ.)
Environmental Specifications
  • Operating Temperature: -10°C to 60°C
  • Storage Temperature: -20°C to 70°C
Display Features
  • a-Si TFT-LCD LCM technology
  • RGB Vertical Stripe configuration
  • WLED backlight system (15K hours lifespan)
  • Antiglare, Hard coating (3H) treatment
  • 16.2M colors with 45% NTSC
  • 60Hz frame rate
  • Without touch screen
  • Without backlight driver
Product Overview
The A080XN01 V0 is an 8.0-inch diagonal TFT-LCD display panel from AU Optronics Corp. featuring an integral WLED backlight system. This industrial-grade panel is designed for reliable performance in demanding environments.
Important Note: This model entered mass production in Q1 2011 and is now discontinued. For integration into future products, we strongly recommend contacting AUO or their authorized agents for the latest production and specification details. The status information provided is for reference only and should not be used as the sole basis for decision-making.
Product Images
AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface AUO 8 Inch Industrial LCD Display with 1024*768 Pixels 300cd/m² Brightness and 40 Pin LVDS Interface
