Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
Specifications
Brand Name :
sharp
Model Number :
LQ042T1DW01
Certification :
Rohs,CE,FCC
Place of Origin :
japan
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.2M colors
model :
WLED
style :
wide screen high resolution 480*272pixels
brightness :
400cd
connector :
50
contrast ratio :
600:1
working time :
50k hours
Description
Sharp LQ042T1DW01 4.2" Industrial LCD Display
Product Overview

High-performance 4.2-inch TFT-LCD display module designed for industrial applications, featuring 480*272 WQVGA resolution and 400 cd/m² brightness for excellent visibility in various lighting conditions.

Technical Specifications
BrandSharp
ModelLQ042T1DW01
Display Typea-Si TFT-LCD, LCM
Diagonal Size4.2 inch
Resolution480*272 (WQVGA)
Pixel ConfigurationRGB Horizontal Stripe
Active Area92.88(H) * 52.632(V) mm
Outline Dimensions109.5(H) * 69(V) * 10.1(D) mm
Bezel Area94.48(H) * 54.272(V) mm
Surface TreatmentAntiglare, Hard coating (3H)
Brightness400 cd/m² (Typical)
Contrast Ratio1300:1 (Typical)
Viewing Angle80/80/80/80 (CR≥10)
Response Time20 ms (Typical, Tr+Td)
Operating ModeASV, Normally Black, Transmissive
Color Support16.2M colors, 64% NTSC
BacklightWLED, 50K hours lifespan, With LED Driver
Frame Rate60Hz
Interface50 pins CMOS (1 channel, 8-bit), Connector
Power Supply3.3V (Typical)
Weight85.0g (Maximum)
Touch PanelWithout
Environmental Specifications
Operating Temperature-10°C to +70°C
Storage Temperature-30°C to +70°C
Key Features
  • High brightness 400 cd/m² for industrial environments
  • Wide viewing angles with symmetric performance
  • Advanced Super View (ASV) technology for enhanced image quality
  • Anti-glare hard coating (3H) for durability
  • Long-life WLED backlight with integrated driver
  • Compact form factor with robust construction
  • Wide operating temperature range

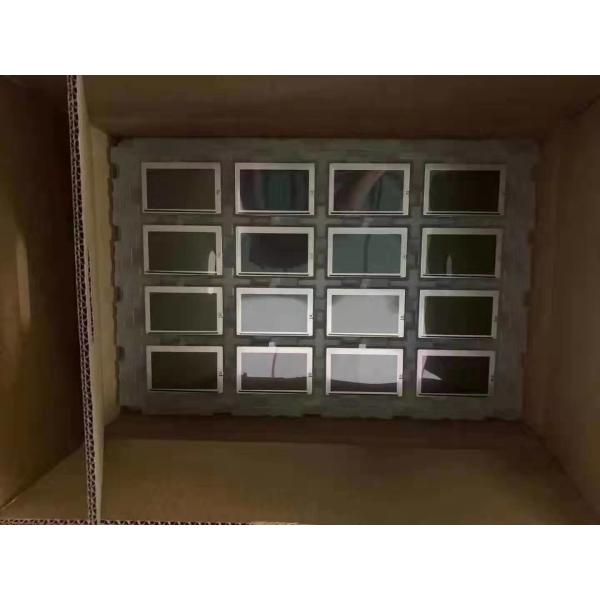

Product Images
Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel Sharp LQ042T1DW01 4.2 Inch 400cd/m² Brightness 480×272 Pixels WLED Backlight Industrial LCD Display TFT-LCD Panel
