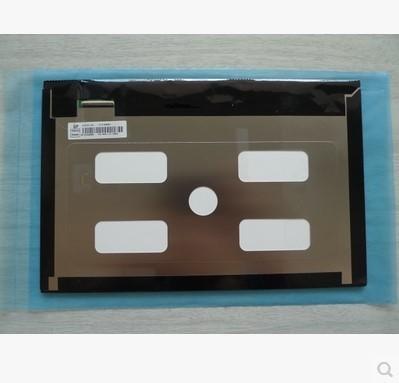

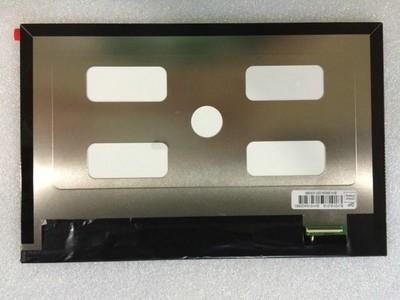

Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor
Specifications
Brand Name :
Innolux
Model Number :
EJ101IA-01G
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1280*800pixels
style :
WLED 40P
brightness :
350 CCD M2
color :
16.7M
contrast ratio :
800 :1
working life :
15K Hours
Description

  • Innolux 10.1inch Raspberry touch screen lcd monitor EJ101IA-01G lcd display model 1280*800 pixels 350 CCD 40P

  • Brand

    Innolux

    Model

    EJ101IA-01G

    Diagonal Size

    10.1 inch

    Type

    a-Si TFT-LCD, LCM

    Pixel Format

    1280(RGB)×800 [WXGA]

    Configuration

    RGB Vertical Stripe

    Active Area

    216.96(H)×135.6(V) mm

    Outline Dim.

    229.46(H)×149.1(V) ×4.66(D) mm

    Bezel Area

    -

    Treatment

    Hard coating

    Luminance

    350 cd/m² (Typ.)

    Contrast Ratio

    800:1 (Typ.) (TM)

    View Direction

    Symmetry

    Response Time

    10/15 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10)

    Operating Mode

    IPS, Normally Black, Transmissive

    Support Color

    16.7M 50% (CIE1931)

    Light Source

    WLED [3S10P] , 15K hours , W/O Driver

    Weight

    183g (Typ.)

    Designed For

    Innolux 10.1 Inch Raspberry Touchscreen , EJ101IA 01G Touch Screen Display Monitor

    Frame Rate

    60Hz

    Touch Panel

    Without

    Interface Type

    40 pins LVDS (1 ch, 8-bit) , Connector

    Power Supply

    2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)

    Environment

    Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

All products will be send to customer after inspection one by one.
