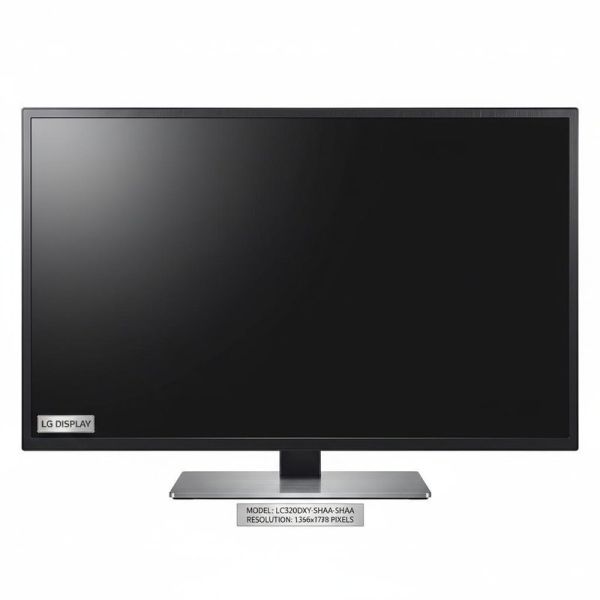

LG 32 LC320DXY-SHAA LCD TV Panel with 400 CD/M2 Brightness 1366*768 Resolution and 50k Hours Lifespan
LG 32 LC320DXY-SHAA LCD TV Panel with 400 CD/M2 Brightness 1366*768 Resolution and 50k Hours Lifespan
LG 32 LC320DXY-SHAA LCD TV Panel with 400 CD/M2 Brightness 1366*768 Resolution and 50k Hours Lifespan
LG 32 LC320DXY-SHAA LCD TV Panel with 400 CD/M2 Brightness 1366*768 Resolution and 50k Hours Lifespan
Specifications
Brand Name :
LG
Model Number :
LC320DXY-SHAA
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1366*768
style :
30PIN IPS
brightness :
400 CD/M2
color :
16.7m
contrast ratio :
1200 :1
working life :
50k hours without driver
Description
LG 32" LC320DXY-SHAA LCD TV Panel Display Screen
31.5-inch diagonal a-Si TFT-LCD display panel from LG Display featuring 400 cd/m² brightness and 1366*768 WXGA resolution.
Technical Specifications
ManufacturerLG Display
Model NameLC320DXY-SHAA
Screen Size31.5 inch
Screen TypeCELL, a-Si TFT-LCD
Resolution1366(RGB)*768 (WXGA)
Pixel ArrangementRGB Vertical Stripe
Active Area697.685 * 392.256 mm (H*V)
Outline Dimensions715 * 411 * 1.3 mm (H*V*D)
Surface TreatmentAntiglare (Haze 3%), Hard coating (2H)
Brightness400 cd/m²
Contrast Ratio1200:1 (Typical)
Viewing Angle89/89/89/89 (Min.)(CR≥10)
Response Time7 ms (Typical, G to G)
Display ModeIPS, Normally Black, Transmissive
Color Depth16.7 Million Colors
BacklightNo Backlight
Weight0.86/0.91 kg (Typical/Maximum)
Refresh Rate60Hz
TouchscreenWithout Touchscreen
Signal TypeLVDS (1 ch, 8-bit), Connector, 30 pins
Voltage Supply12.0V (Typical)
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
LG 32 LG 32
Product Overview
The LC320DXY-SHAA (Alias: LC320DXY (SH)(AA)) is a 31.5" diagonal display panel featuring antiglare surface treatment, wide viewing angles, landscape orientation, and wide aspect ratio. This CELL panel is designed for applications such as TV sets and requires an external backlight system.
Key Features
  • IPS technology for superior viewing angles
  • Antiglare surface with hard coating
  • Wide aspect ratio for modern display applications
  • High brightness of 400 cd/m²
  • LVDS interface with 30-pin connector
Quality Assurance: All original products undergo comprehensive testing before shipment to ensure optimal performance and reliability.
Note: For detailed specification documents, please contact us via email. We recommend consulting with LG Display or their authorized agents for the latest production status and technical details before integration into your products.
