Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Samsung 19 Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Specifications
Brand Name :
Samsung
Model Number :
LTM190E4-L02
Certification :
Rohs,CE,FCC
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.7m colors
model :
WLED
style :
wide screen high resolution 1280*1024
brightness :
250cd
connector :
30
contrast ratio :
1500:1
working time :
50k hours
Description

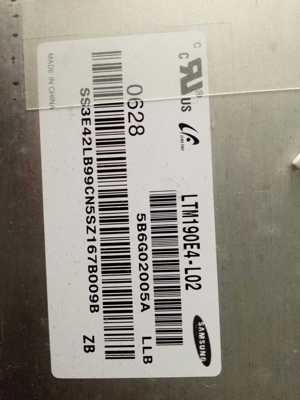

Samsung 19" Smart Touch Screen Monitor LTM190E4-L02
Technical Specifications
Panel Brand SAMSUNG Panel Model LTM190E4-L02
Panel Size 19.0" Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)*1024, SXGA Pixel Format RGB Vertical Stripe
Display Area 376.32(W)*301.056(H) mm Bezel Opening 380.2(W)*305.0(H) mm
Outline Size 396(W)*324(H)*17(D) mm Surface Antiglare (Haze 44%), Hard coating (3H)
Brightness 250 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode PVA, Normally Black, Transmissive
Best View Symmetry Response Time 13/7 (Typ.)(Tr/Td)
Display Colors 16.7M 72% (CIE1931) Lamp Type 4 pcs CCFL, 50K hours, Without Driver
Frequency 60Hz Touch Screen Without
Panel Weight 2.55Kgs (Max.) Application Desktop Monitor
Signal Interface LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50°C; Storage Temp.: -20 ~ 65°C
Samsung 19 Samsung 19
Product Overview
Samsung Display Co., Ltd. LTM190E4-L02 is a 19.0-inch diagonal a-Si TFT-LCD display panel product featuring an integral CCFL backlight system. This panel is designed without backlight driver and touch screen functionality.
Key Features
  • High Color Gamut for vibrant display performance
  • Antiglare Surface with hard coating (3H) protection
  • Wide Viewing Angle (89/89/89/89) for optimal visibility
  • Landscape orientation design
  • Extended lamp life ≥ 50K hours
Recommended Applications
This model is ideally suited for Desktop Monitor applications and similar display requirements.
Production Status Notice: This model entered mass production in Q4 2004 with last shipment in Q1 2012. The LTM190E4-L02 is currently discontinued. For integration into future products, we strongly recommend contacting SAMSUNG or their distributor for the latest production and specification details. The production status information provided is for reference only and should not be used as the basis for decision making.
Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
