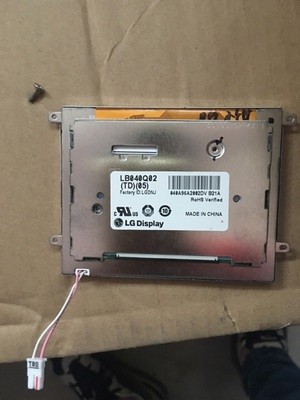

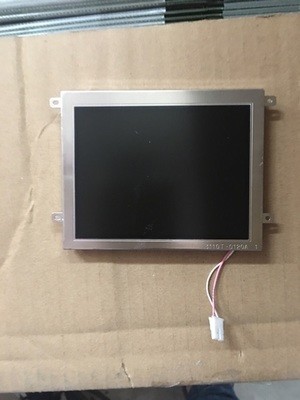

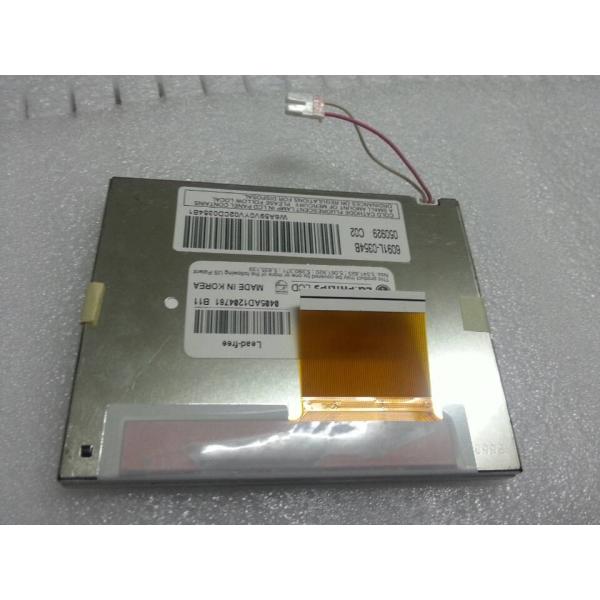

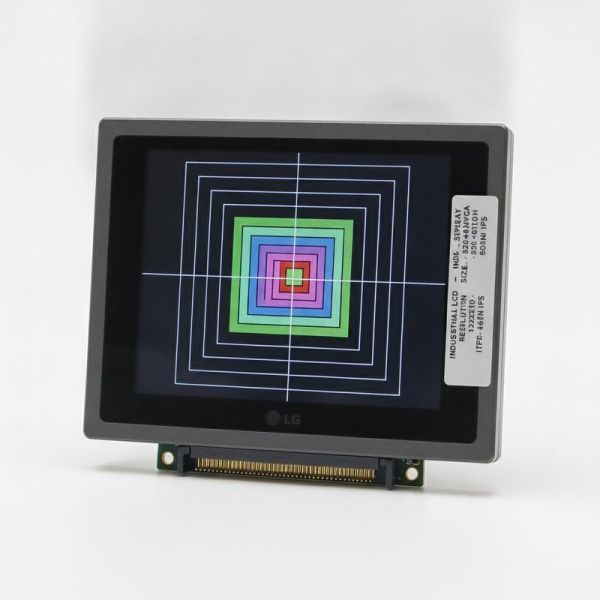

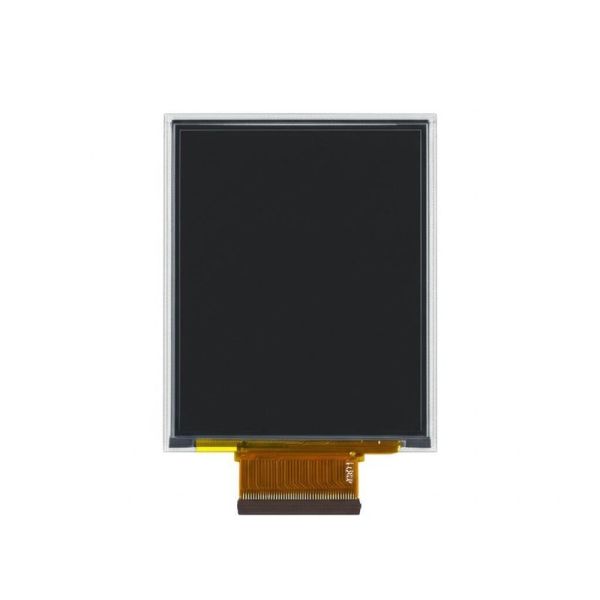

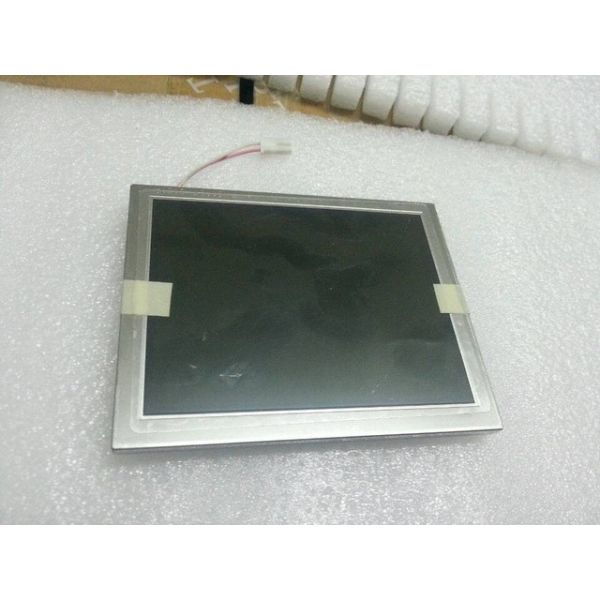

LG 4-Inch Industrial LCD Display 320×240 Pixels 60 Pin 450cd/m² LB040Q02-TD02/TD05
Product Overview
High-quality industrial LCD display module from LG LCD, designed for reliable performance in demanding environments.
Technical Specifications
| Brand |
LG LCD |
| Model |
LB040Q02-TD02 |
| Diagonal Size |
4.0 inch |
| Type |
a-Si TFT-LCD, LCM |
| Pixel Format |
320(RGB)×240 [QVGA] |
| Configuration |
RGB Vertical Stripe |
| Active Area |
81.6(H)×61.2(V) mm |
| Outline Dimensions |
98.4(H)×78(V) mm |
| Bezel Area |
85.4(H)×65.0(V) mm |
| Surface Treatment |
Antiglare |
| Luminance |
450 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
10/30 (Typ.)(Tr/Td) |
| Viewing Angle |
65/65/50/65 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K |
| Light Source |
CCFL [1 pcs], 20K hours, W/O Driver |
| Weight |
90.0/100g (Typ./Max.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
60 pins CMOS/TTL (1 ch, 6-bit), FPC |
| Power Supply |
3.3/5.0V (Typ.)(VCC/VDD) |
| Operating Temperature |
-30 ~ 85 °C |
| Storage Temperature |
-40 ~ 85 °C |
| Vibration Level |
2.9G (28.4 m/s²) |
All original products will be sent to customers after full testing one by one.
Specification details can be sent to you via email. Please contact us for complete documentation.
